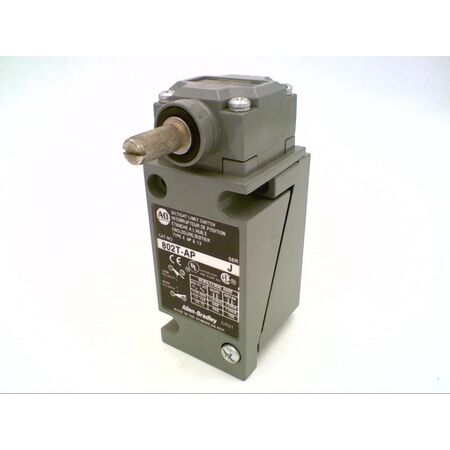

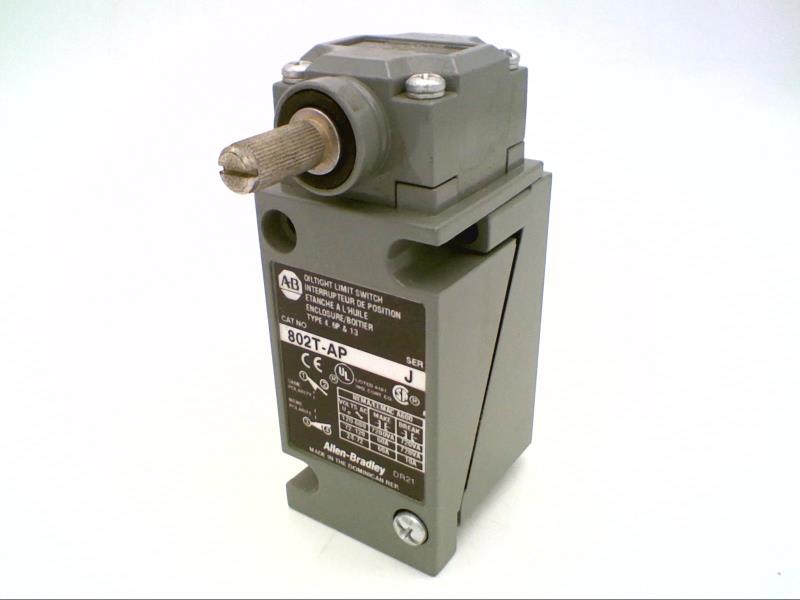

Product Name/Title: Allen-Bradley 802TAPWBR Limit Switch NEMA Type 4/13
Brand: Allen-Bradley
SKU: 802TAPWBR
Alternatively Known As: Industrial limit switch, lever limit switch, plug-in limit switch, NEMA 4/13 limit switch
Technical Specifications
- NEMA Type 4/13 oil-tight construction
- Plug-in lever type with spring return
- Standard operating torque
- 2-circuit operation supporting clockwise and counterclockwise operation
- Electrical rating: 600 VAC max, 10 AMP max
- Dimensions (H x L x W): 120mm x 50mm x 70mm
- Weight: 0.5 kg
Key Features
- NEMA Type 4/13 rated for oil-tight construction
- Plug-in design for easy installation and maintenance
- Lever type actuator with spring return
- Standard operating torque
- 2-circuit operation with clockwise and counterclockwise operation
- Rated for up to 600 VAC and 10 AMP maximum
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure safety and compliance.
Applications
- Industrial automation control systems
- Machinery safety and position detection
- Conveyor systems and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable oil-tight construction reduces environmental contamination risks
- Long service life reduces waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TAPWBR Limit Switch is available for immediate purchase, ideal for industrial automation and machinery safety applications.
