Limit Switch NEMA Type 4/13 | Oil-Tight Construction | Plug-In Lever Actuator | 4-Circuit Configuration | by Allen-Bradley

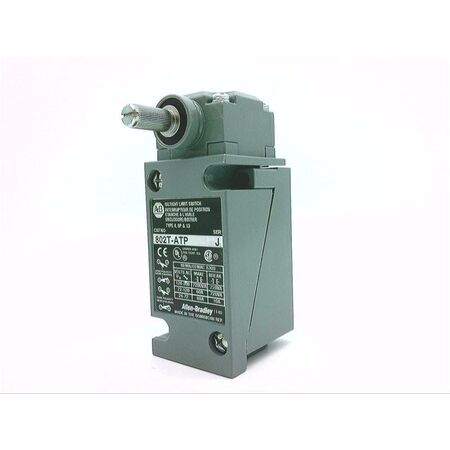

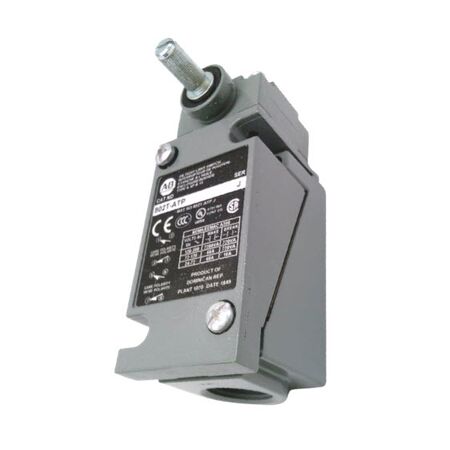

The Allen-Bradley 802TATP Limit Switch is designed for industrial automation control, featuring NEMA Type 4/13 oil-tight construction and a plug-in lever actuator for easy installation. With a 4-circuit configuration and the ability to operate in both clockwise and counterclockwise directions, this switch is perfect for machinery position sensing and conveyor systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- NEMA Type 4/13 oil-tight construction
- Plug-in lever type actuator with spring return
- Standard operating torque
- 4-circuit electrical configuration
- Clockwise and counterclockwise operation
- Electrical rating: 600 VAC max, 10 AMP max
- Dimensions (H x L x W): 120mm x 50mm x 70mm
- Weight: 0.5 kg
Key Features
- NEMA Type 4/13 rated for oil-tight construction
- Plug-in design for easy installation
- Lever type actuator with spring return
- Standard operating torque
- 4-circuit configuration
- Operates in both clockwise and counterclockwise directions
- Rated for 600 VAC max and 10 AMP max
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable oil-tight construction reduces maintenance and waste
- Long service life minimizes replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TATP Limit Switch is available now for immediate purchase. Ideal for industrial and manufacturing automation control applications.
