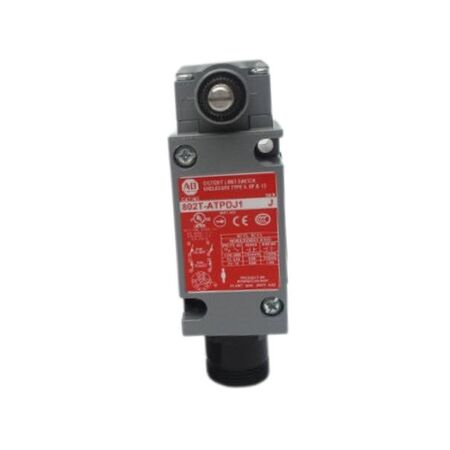

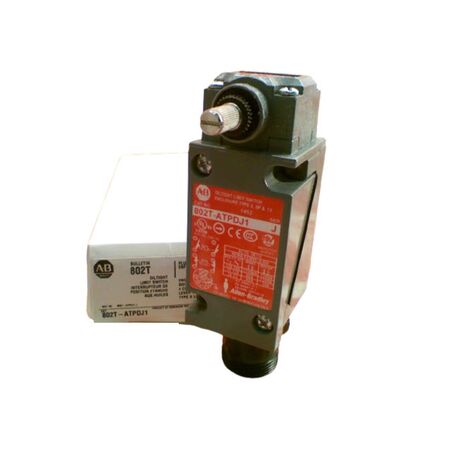

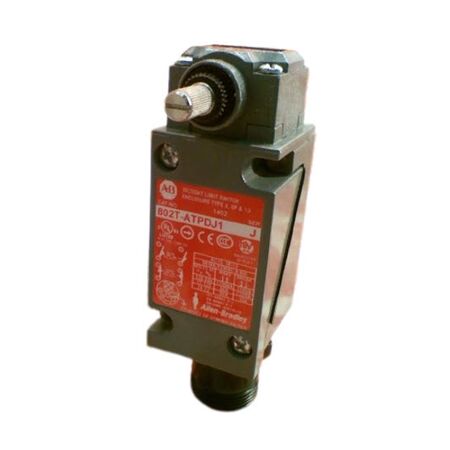

Limit Switch NEMA Type 4/13 | Oil-Tight Construction | Plug-in Lever Type | 4-Circuit Design | by Allen-Bradley
The Limit Switch NEMA Type 4/13 is designed for industrial automation control systems, featuring an oil-tight construction and a plug-in lever type with spring return. With a maximum voltage of 600 VAC and a 4-circuit design, it ensures reliable limit detection for machinery safety and conveyor systems, making it ideal for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- NEMA Type 4/13 oil-tight construction
- Plug-in lever type with spring return
- Standard operating torque
- 4-circuit design
- Supports clockwise and counterclockwise operation
- Maximum voltage: 600 VAC
- Maximum current: 10 AMP
- Dimensions (H x L x W): 120mm x 50mm x 70mm
- Weight: 0.5 kg
Key Features
- NEMA Type 4/13 rated for oil-tight construction
- Plug-in lever type with spring return
- Standard operating torque
- 4-circuit configuration
- Capable of clockwise and counterclockwise operation
- Maximum voltage rating of 600 VAC
- Maximum current rating of 10 AMP
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial automation control systems
- Machinery safety and control
- Conveyor systems
- Manufacturing equipment requiring limit detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable oil-tight construction reduces maintenance and waste
- Long service life minimizes replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TATPDJ1 Limit Switch is available for immediate purchase, ideal for industrial and manufacturing applications requiring reliable limit detection.
