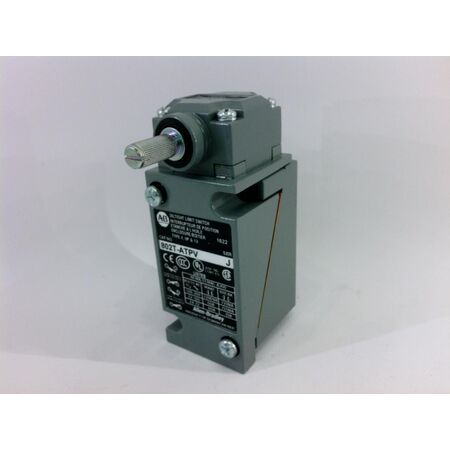

Limit Switch NEMA Type 4/13 | Oil-Tight Construction | Plug-in Lever Type | 600 VAC Rated | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 802TATPV
$519.00 List price: $646.70
+ −
30 Days Return Delivery Options
The Allen-Bradley 802TATPV Limit Switch features NEMA Type 4/13 oil-tight construction and a plug-in lever type with spring return, making it ideal for industrial automation and machinery safety applications. With a maximum voltage rating of 600 VAC and durable Viton seals, this switch ensures reliable performance in harsh environments, supporting both clockwise and counterclockwise operation.
Technical Specifications
  • NEMA Type 4/13 oil-tight construction
  • Plug-in lever type with spring return
  • Standard operating torque
  • 4-circuit configuration
  • Supports clockwise and counterclockwise operation
  • Maximum voltage rating: 600 VAC
  • Maximum current rating: 10 AMP
  • Viton seals for chemical and temperature resistance
  • Dimensions (H x L x W): 120mm x 50mm x 70mm
  • Weight: 1.5 kg
Key Features
  • NEMA Type 4/13 oil-tight construction
  • Plug-in lever type with spring return
  • Standard operating torque
  • 4-circuit configuration
  • Capable of clockwise and counterclockwise operation
  • Viton seals for enhanced durability
  • Rated for 600 VAC max and 10 AMP max
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper integration and safety compliance.
Applications
  • Industrial automation control systems
  • Machinery safety and position detection
  • Harsh environment operations requiring oil-tight and dust-tight switches
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Oil-tight design prevents environmental contamination
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 802TATPV Limit Switch is available now for immediate purchase, ideal for industrial automation and machinery safety applications.
