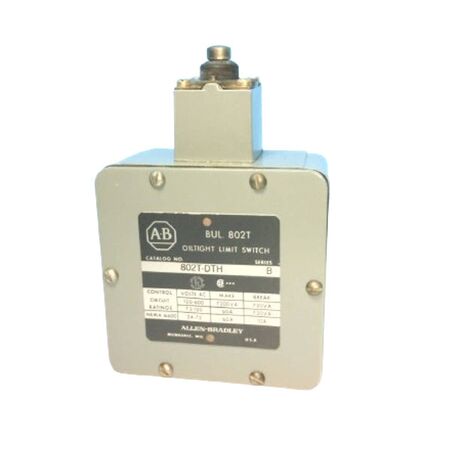

Limit Switch NEMA Type 4 & 13 | Oil-Tight Construction | Top Push Roller Actuator | by Allen-Bradley
The Allen-Bradley 802TDTH Limit Switch is designed for industrial automation, featuring NEMA Type 4 and 13 ratings for oil-tight construction. With a top push roller actuator and a 4 circuit configuration, it's perfect for machinery position sensing and conveyor system limit detection. Built for reliability, this switch ensures compliance with safety standards and is ideal for manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage rating: 600V AC max
- Current rating: 10 Amp max
- NEMA Type: 4 and 13
- Construction: Oil-tight
- Actuator type: Top push roller
- Circuit: 4 circuit
- Mounting: Horizontal
- Design: Non-plug-in
- Dimensions (H x L x W): 120mm x 50mm x 70mm
- Weight: 1.2 kg
Key Features
- NEMA Type 4 and 13 rated for oil-tight construction
- Top push roller actuator
- 4 circuit configuration
- Horizontal mounting orientation
- Non-plug-in design
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure compliance with safety standards and proper operation.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor system limit detection
- Manufacturing process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Supports efficient machine operation reducing energy waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TDTH Limit Switch is available for immediate purchase, ideal for industrial and manufacturing automation applications.
