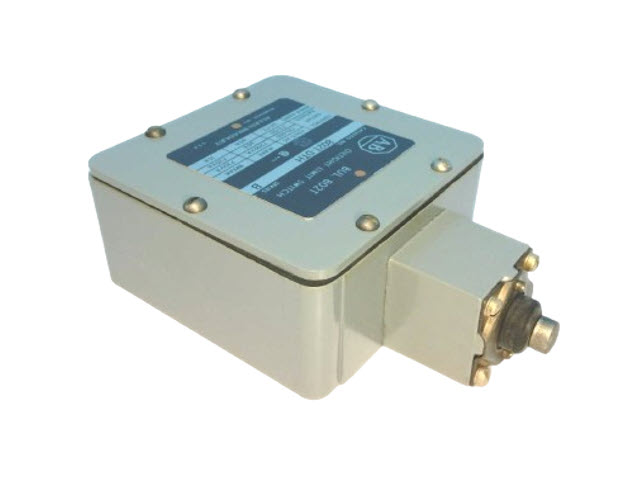

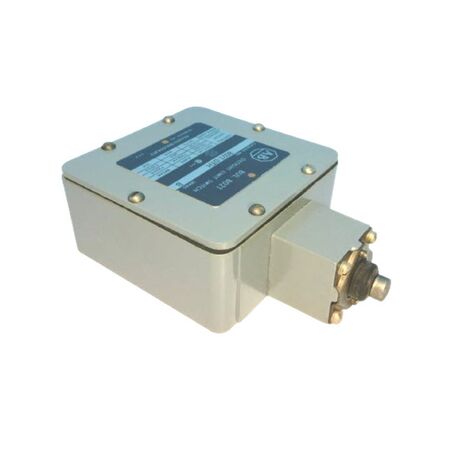

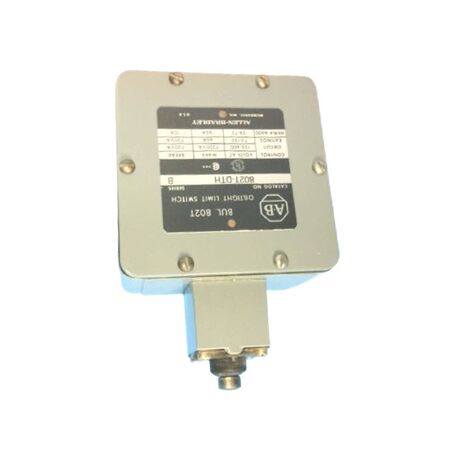

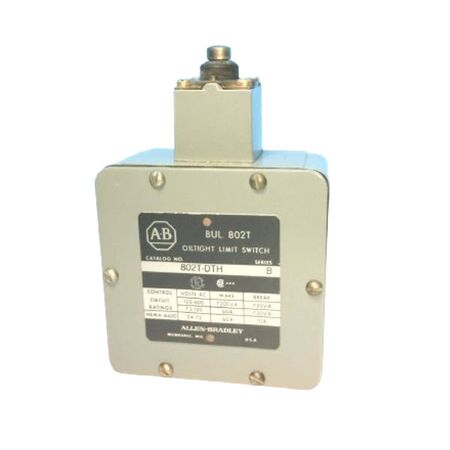

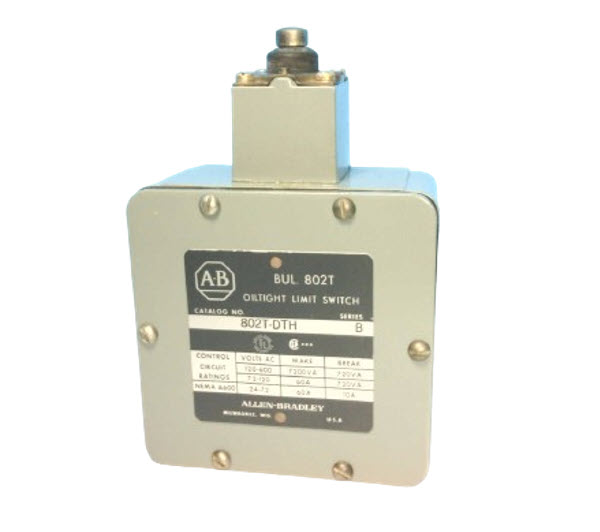

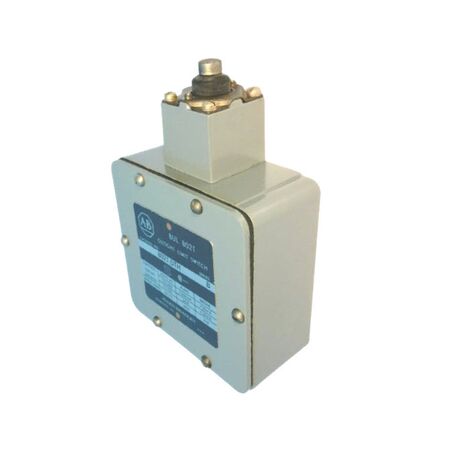

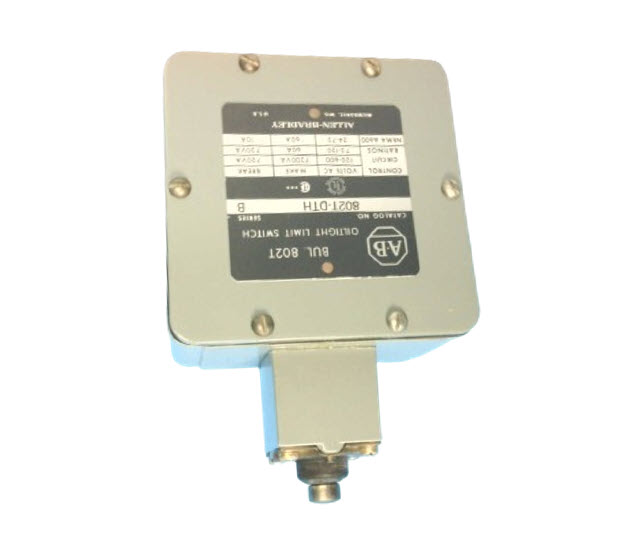

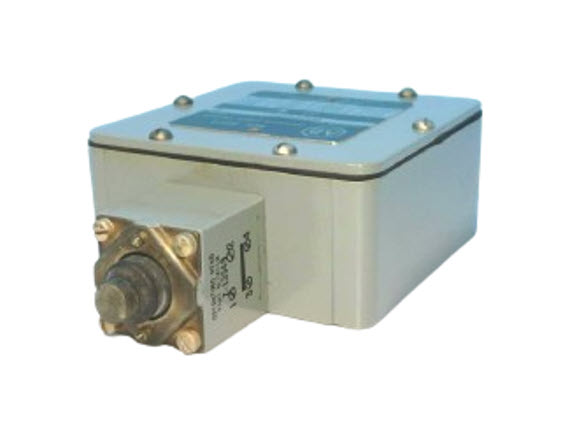

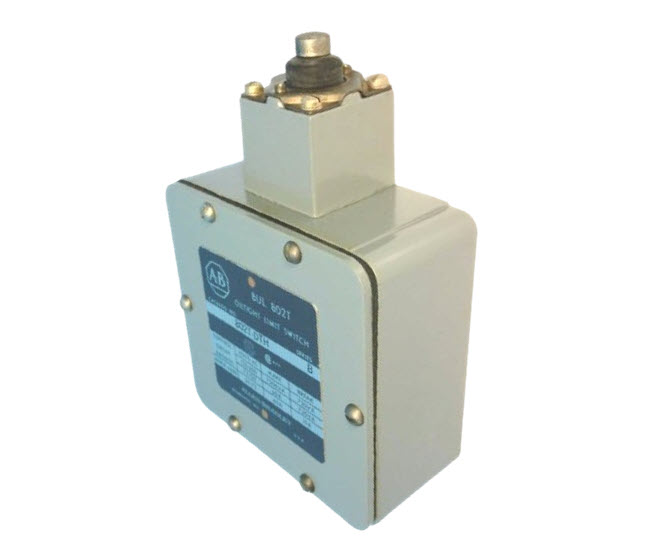

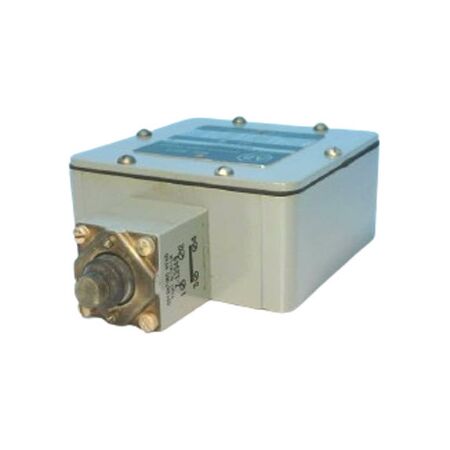

Product Name/Title: Allen-Bradley 802TDTH Limit Switch NEMA Type 4 and 13
Brand: Allen-Bradley
SKU: 802TDTH
Alternatively Known As: Industrial limit switch, Allen-Bradley position switch, NEMA 4 limit switch, oil-tight limit switch
Technical Specifications
- Voltage rating: 600V AC max
- Current rating: 10 Amp max
- NEMA Type: 4 and 13
- Construction: Oil-tight
- Actuator type: Top push roller
- Circuit: 4 circuit
- Mounting: Horizontal
- Design: Non-plug-in
- Dimensions (H x L x W): 120mm x 50mm x 70mm
- Weight: 1.2 kg
Key Features
- NEMA Type 4 and 13 rated for oil-tight construction
- Top push roller actuator
- 4 circuit configuration
- Horizontal mounting orientation
- Non-plug-in design
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure compliance with safety standards and proper operation.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor system limit detection
- Manufacturing process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Supports efficient machine operation reducing energy waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TDTH Limit Switch is available for immediate purchase, ideal for industrial and manufacturing automation applications.
