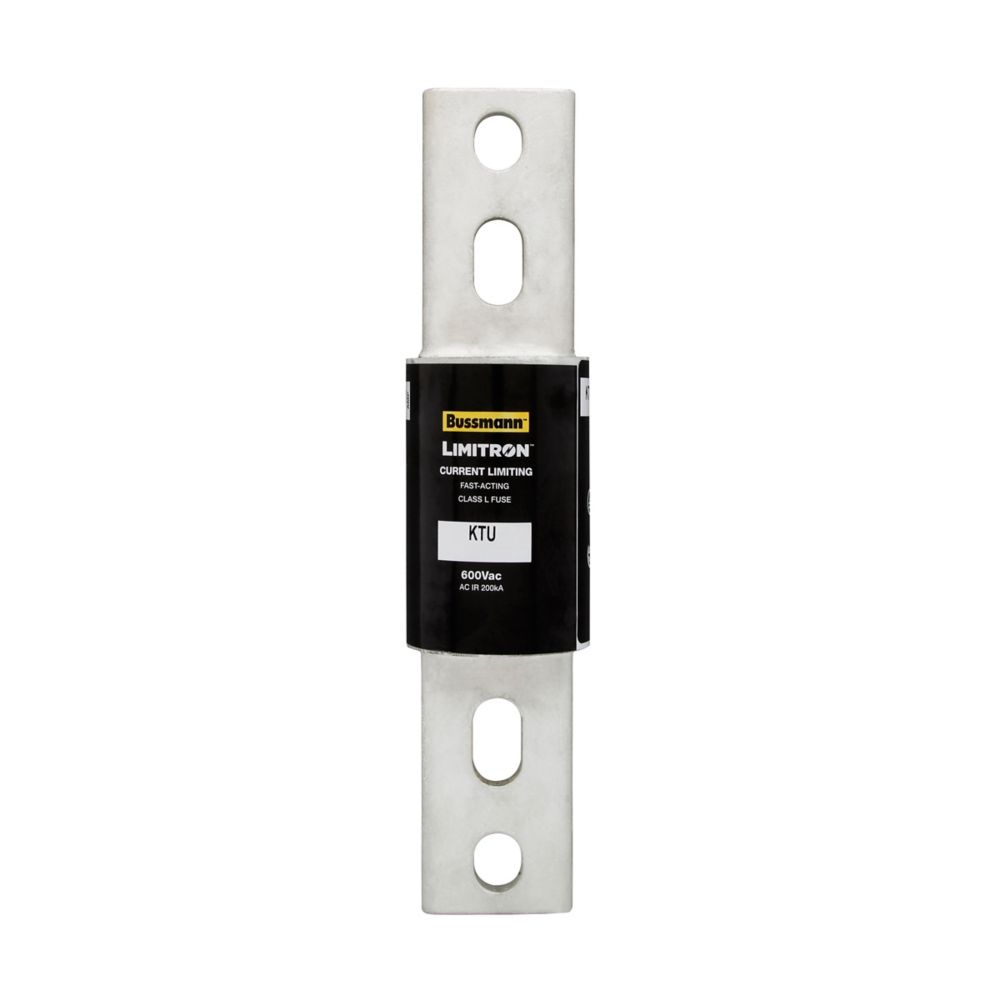

Limitron Fast Acting Fuse Class L | 1000A Amperage | 600V Voltage | 200kA Interrupting Rating | @Each by Eaton
The Limitron Fast Acting Fuse Class L is designed for rapid response to overcurrent conditions, featuring a robust 1000A amperage rating and a high interrupting capacity of 200kA at 600V. Ideal for industrial electrical systems, this fuse ensures enhanced safety and durability with its silver-plated end bells and melamine glass tube construction. Perfect for protecting electrical circuits in commercial and industrial facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Limitron Fast Acting Fuse Class L | 1000A Amperage | 600V Voltage | 200kA Interrupting Rating | @Each by Eaton
Brand: Eaton
SKU: KTU-1000
Alternatively Known As: Limitron Class L Fuse, KTU-1000 Fuse, Eaton Fast Acting Fuse, Bussmann KTU Fuse
Technical Specifications
- Amperage Rating: 1000 A
- Voltage Rating: 600 V
- Interrupting Rating: 200 kAIC at 600 Vac
- Material: Silver-plated end bells, Melamine glass tube
- Connection Type: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Mounting Method: Bolt
- Class: Class L
- Packaging Type: Standard
- Dimensions (H x L x W): 64mm x 273mm x 64mm
- Weight: 1.93 kg
Key Features
- Fast-acting, current limiting fuse for rapid response to overcurrent conditions
- High interrupting rating of 200kA at 600Vac for enhanced safety
- Silver-plated end bells and melamine glass tube construction for durability
- Bolted blade end connections for secure mounting
- Ferrule design for reliable performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
- Industrial electrical systems requiring high interrupting capacity
- Protection of electrical circuits in commercial and industrial facilities
- Use in motor control centers and power distribution panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Current limiting design reduces energy waste and minimizes damage to electrical components
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Not Applicable
Available Now
The Eaton Bussmann Series Limitron Fast Acting Class L Fuse KTU-1000 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
