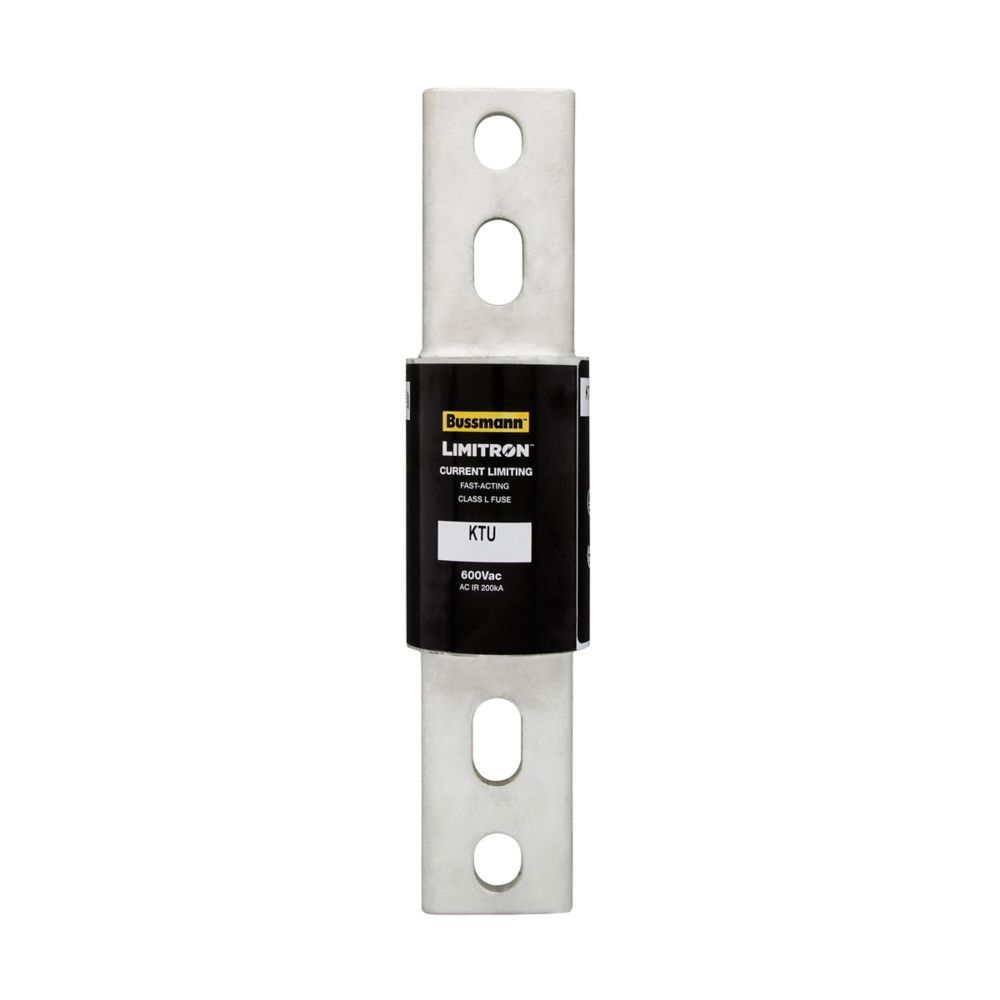

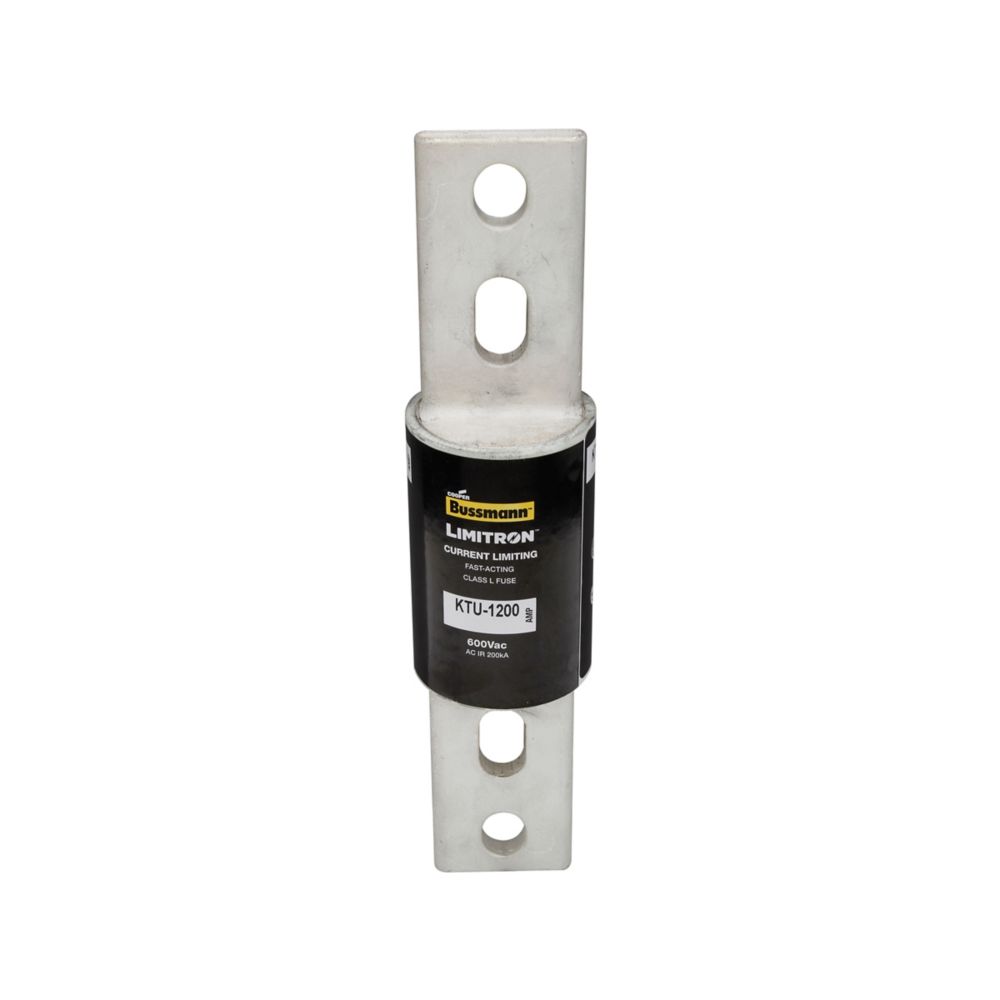

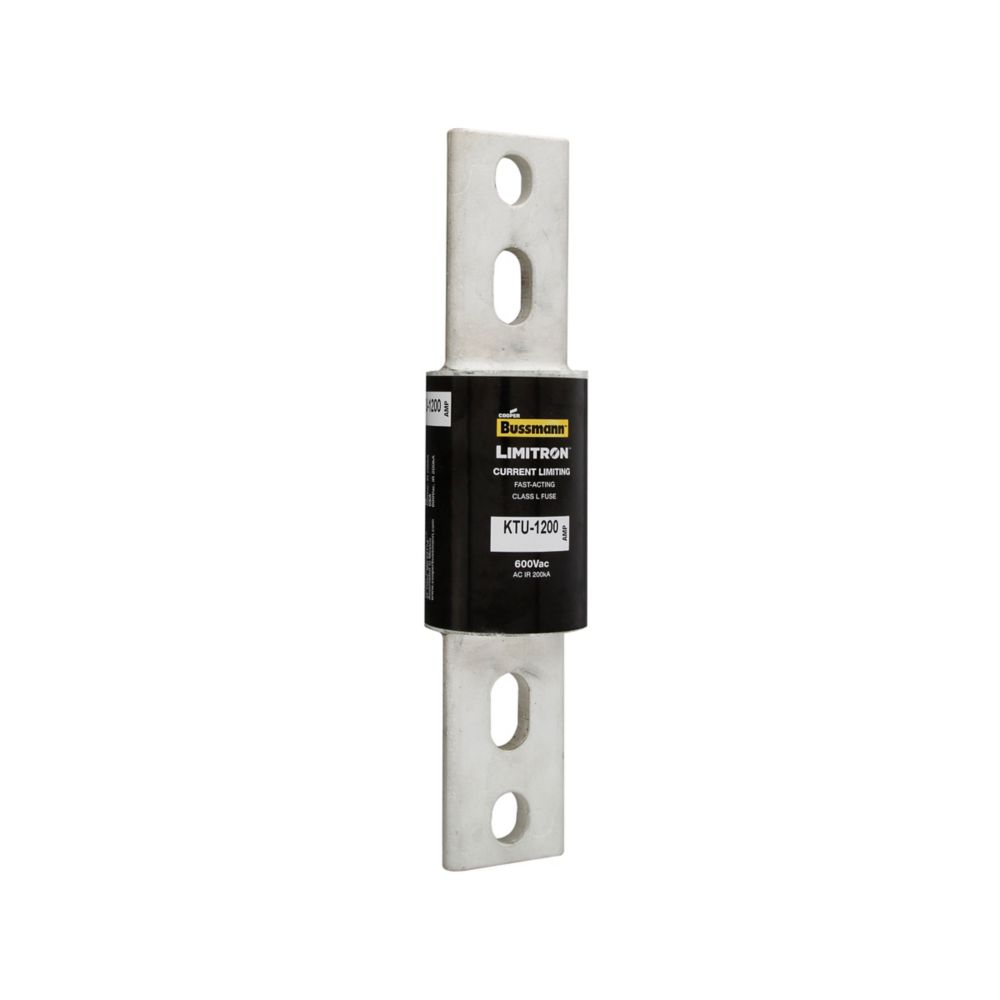

Limitron Fast Acting Fuse Class L | 1200A Amperage | 600V Voltage | 200kA Interrupting Rating | @Each by Eaton

BRAND: Eaton
SKU: KTU-1200
$2,136.40 List price: $2,662.30
+
The Limitron Fast Acting Fuse Class L is designed for industrial electrical systems, providing fast-acting overcurrent protection with a 1200A amperage rating and a 600V voltage rating. Its high interrupting rating of 200kA ensures enhanced safety in power distribution panels and motor protection circuits. Built with a durable melamine glass tube and bolted blade end connections, this fuse is ideal for commercial and industrial applications.

Product Name/Title: Limitron Fast Acting Fuse Class L | 1200A Amperage | 600V Voltage | 200kA Interrupting Rating | @Each by Eaton

Brand: Eaton

SKU: KTU-1200

Alternatively Known As: Class L Fuse, Limitron Fuse, Fast Acting Fuse, KTU-1200 Fuse, Eaton KTU Fuse

Technical Specifications
  • Amperage Rating: 1200 A
  • Voltage Rating: 600 V
  • Interrupting Rating: 200 kAIC at 600 Vac
  • Material: Melamine glass tube with silver-plated end bells
  • Connection Type: Bolted blade end x bolted blade end
  • Fuse Class: Class L
  • Mounting Method: Bolt
  • Fuse Indicator: Non-indicating
  • Special Features: Knife blade
  • Dimensions (H x L x W): 64mm x 273mm x 64mm
  • Weight: 1.93 kg
Key Features
  • Fast-acting, current limiting fuse for enhanced protection
  • Class L fuse with high interrupting rating of 200kA at 600Vac
  • Bladable design with bolted blade end connections
  • Melamine glass tube construction with silver-plated end bells
  • Non-indicating fuse without visual blown fuse indicator
  • Knife blade special feature for secure mounting
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
  • Industrial electrical systems requiring fast-acting overcurrent protection
  • Power distribution panels and switchgear
  • Motor protection circuits
  • Commercial and industrial electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Current limiting design reduces damage and downtime, minimizing waste and resource use
  • RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information

Not applicable

Available Now

The Eaton Limitron Fast Acting Class L Fuse KTU-1200 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
