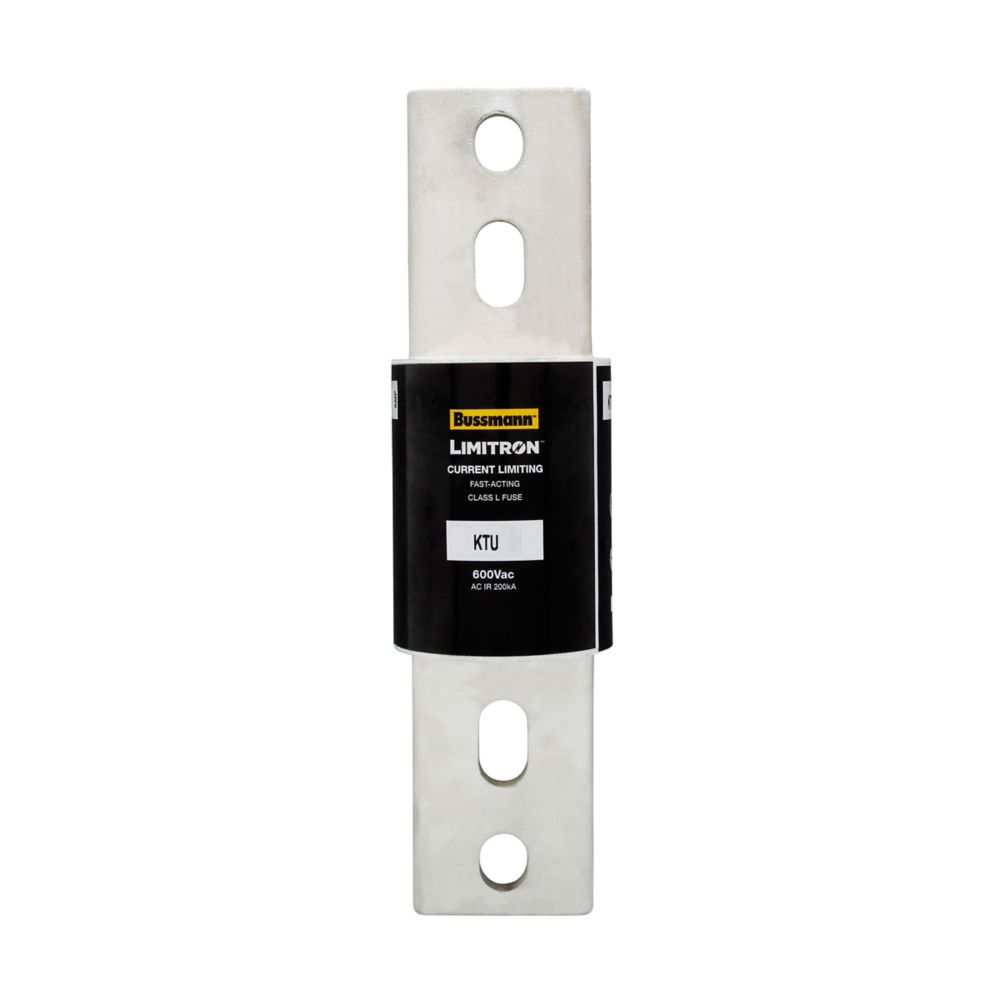

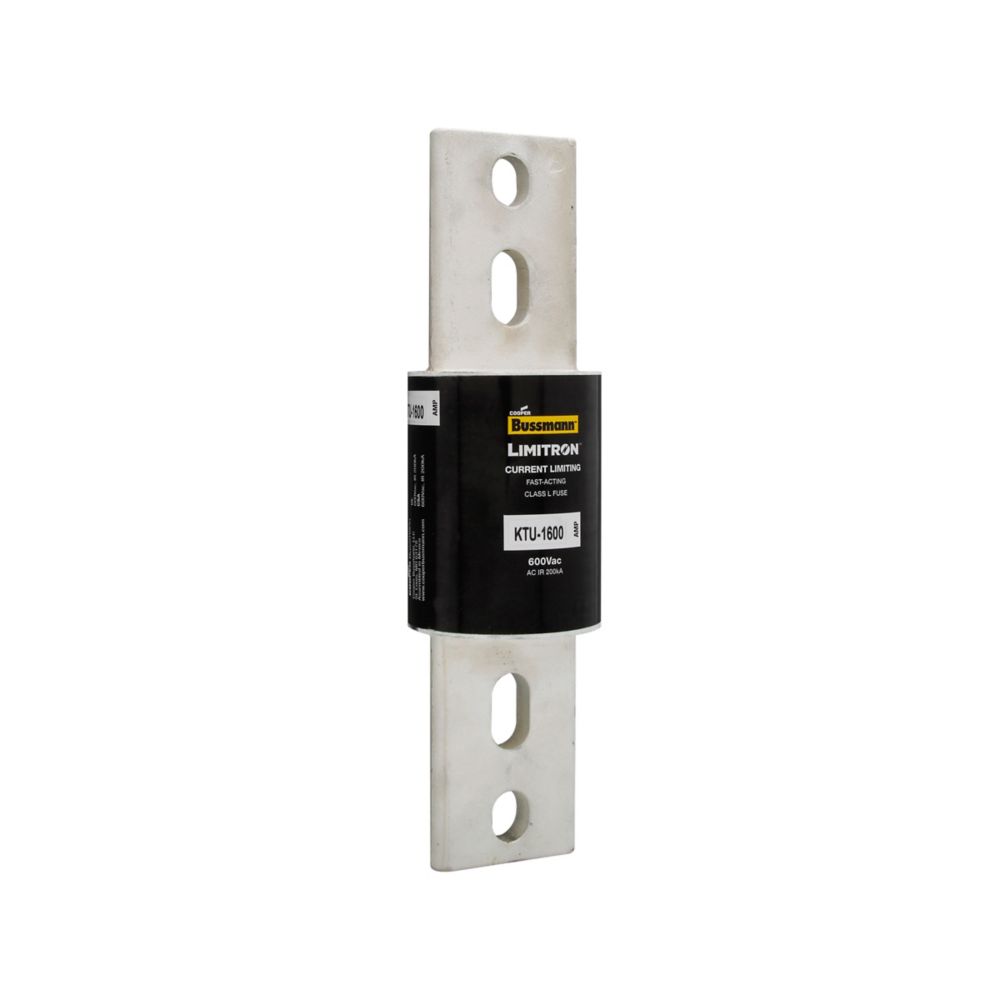

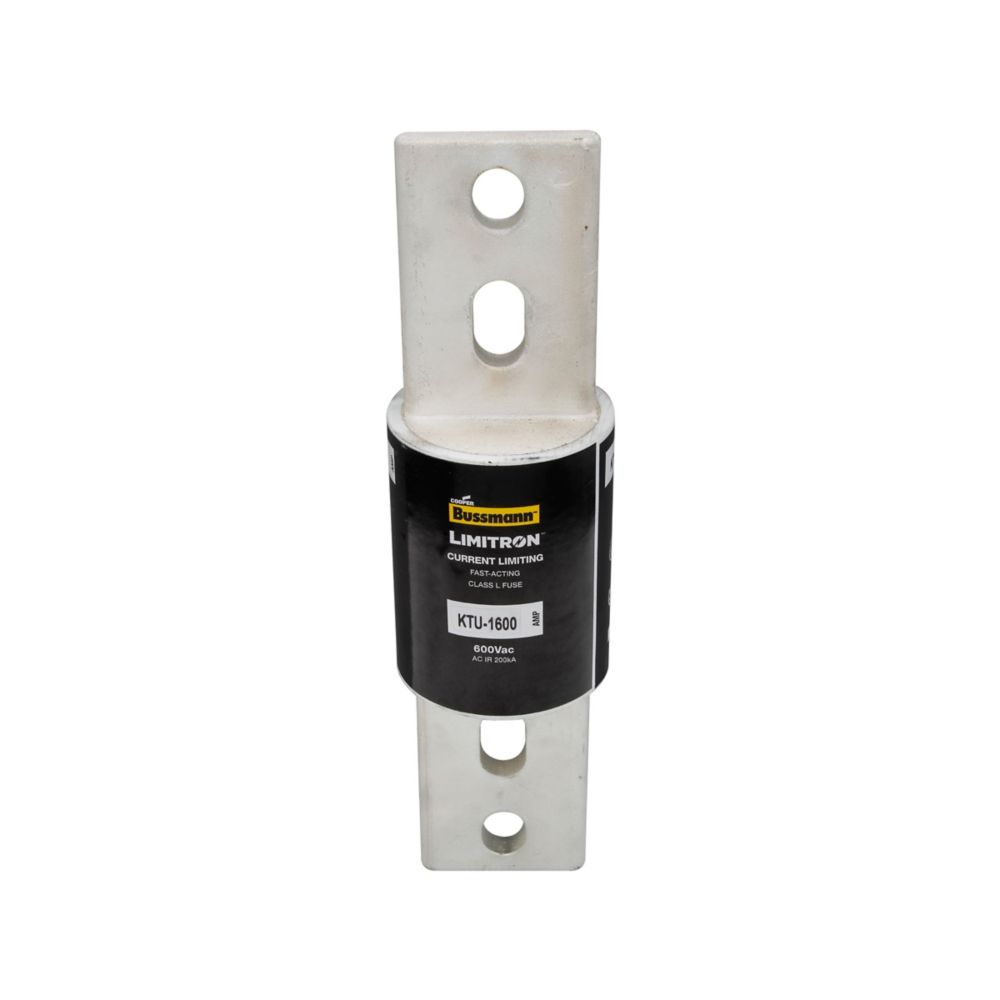

Limitron Fast Acting Fuse Class L | 1600 A Amperage | 200 kAIC Interrupting Rating | Knife Blade Design | @Each by Eaton
The Limitron Fast Acting Fuse Class L is engineered for high-performance electrical protection, featuring a robust 1600 A amperage rating and a 200 kAIC interrupting rating at 600 Vac. Ideal for industrial and commercial applications, this knife blade fuse ensures reliable operation in power distribution systems and motor protection, making it a vital component for safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Limitron Fast Acting Fuse Class L | 1600 A Amperage | 200 kAIC Interrupting Rating | Knife Blade Design | @Each by Eaton
Brand: Eaton
SKU: KTU-1600
Alternatively Known As: KTU-1600 Fuse, Eaton Class L Fuse, Limitron Fast Acting Fuse, Current Limiting Blade Fuse
Technical Specifications
- Amperage Rating: 1600 A
- Voltage Rating: 600 V
- Interrupting Rating: 200 kAIC at 600 Vac
- Material: Silver-plated end bells, Melamine glass tube
- Connection: Bolted blade end x bolted blade end
- Fuse Indicator: Non-indicating
- Mounting Method: Bolt
- Class: Class L
- Special Features: Knife blade
- Dimensions (H x L x W): 76mm x 273mm x 76mm
- Weight: 2.72 kg
Key Features
- Fast-acting, current limiting fuse for high performance
- 1600 A amperage rating suitable for heavy-duty applications
- Interrupting rating of 200 kA at 600 Vac for high fault current protection
- Blade type fuse with bolted blade end connections
- Silver-plated end bells and melamine glass tube construction
- Non-indicating fuse without visual blown fuse indicator
- Class L fuse for reliable and safe electrical protection
- Knife blade design for secure mounting and connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Industrial electrical protection
- Power distribution systems
- Motor and transformer protection
- Commercial and utility electrical panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Not applicable
Available Now
The Eaton Limitron Fast Acting Class L Fuse KTU-1600 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
