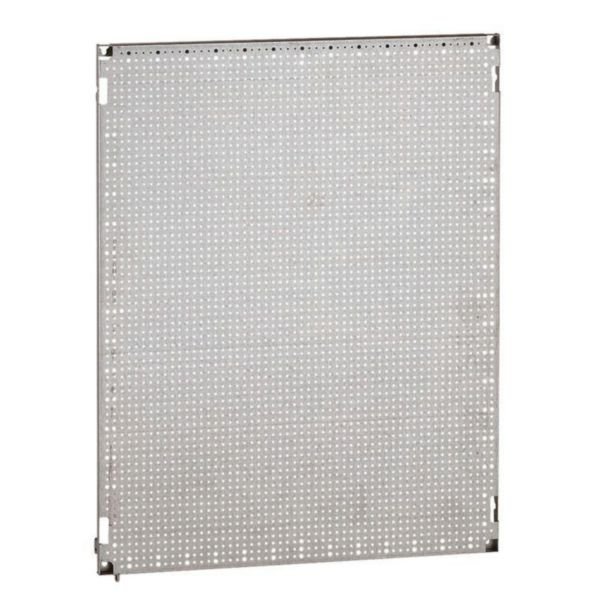

Lina 12.5 Plate for Marina Enclosures | Galvanized Steel | Pre-Drilled for Easy Installation | 150 kg/m² Load Capacity | @Each of 1 | by Legrand
The Lina 12.5 plate for Marina enclosures is crafted from galvanized steel, ensuring corrosion resistance and durability. With a load capacity of 150 kg/m² and pre-drilled holes for easy installation, it's perfect for industrial and marine applications. Designed for reliable structural support, this plate is halogen-free, making it an environmentally friendly choice for your enclosure needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lina 12.5 Plate for Marina Enclosures | Galvanized Steel | Pre-Drilled for Easy Installation | 150 kg/m² Load Capacity | @Each of 1 | by Legrand
Brand: Legrand
SKU: 048140
Alternatively Known As: Lina 12.5 mounting plate, Marina enclosure plate, Galvanized steel enclosure plate
Technical Specifications
- Material: Galvanized steel
- Surface protection: Galvanized
- Height: 800 mm
- Width: 800 mm
- Perforated: Yes
- Halogen free: Yes
- Admissible load: 150 kg/m²
- Bracket holes: 6.5 mm for plastic rivets, 3.3 mm for screws
- Dimensions (H x L x W): 800mm x 20mm x 800mm
- Weight: 5.9 kg
Key Features
- Galvanized steel construction for corrosion resistance
- Pre-drilled for fixing equipment without marking
- Automatic bracket holes for plastic rivets and screws
- Admissible load capacity of 150 kg/m²
- Halogen free material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial enclosure mounting and structural support requirements.
Applications
- Industrial enclosures for electrical and electronic equipment
- Cabinet mounting and structural support in marina environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanized steel surface extends product life reducing replacement frequency
- Halogen free materials reduce environmental impact in disposal
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Lina 12.5 Plate for Marina Enclosures 800x800 mm is available for immediate purchase, ideal for industrial and marine enclosure applications.
