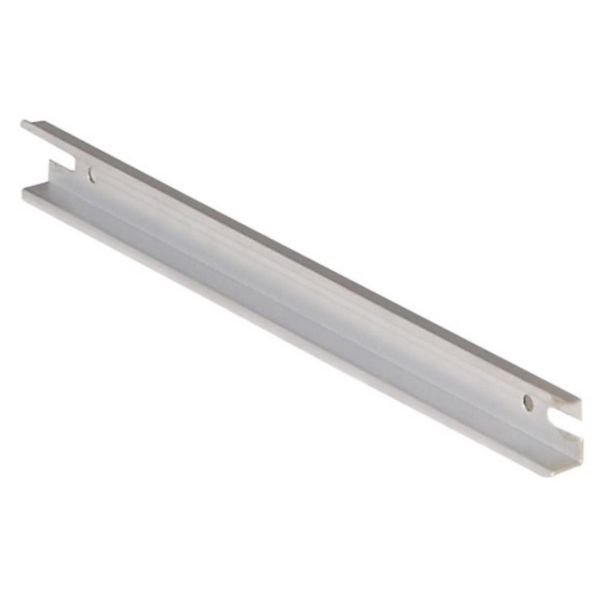

Lina 25 Rail for Cabinets | Steel with Chromated Finish | Long-Slot Punch Shape | @Each of 1 | by Legrand
The Lina 25 rail is designed for cabinets with a width of 400 mm, made from durable steel with a chromated surface for enhanced protection. Featuring a long-slot punch shape, it allows for flexible mounting and is ideal for industrial enclosures. Perfect for professionals looking to securely mount DIN rail components, this rail ensures compliance with AS/NZS 1170 standards for structural design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lina 25 Rail for Cabinets | Steel with Chromated Finish | Long-Slot Punch Shape | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036781
Alternatively Known As: DIN Rail 35/15 mm, Top Hat Rail, Cabinet Mounting Rail
Technical Specifications
- Model: DIN rail (top hat rail) 35/15 mm
- Material: Steel
- Surface Protection: Chromated
- Punch Shape: Long-slot
- Drill Hole Distance Centrically: 323 mm
- Material Thickness: 1.5 mm
- Length: 343 mm
- Height: 15 mm
- Dimensions (H x L x W): 15mm x 343mm x 400mm
- Weight: 0.3 kg
Key Features
- Made of steel with chromated surface protection
- Long-slot punch shape for flexible mounting
- Designed for fixing onto uprights with clip nut and screw-washer
- Crosspiece length of 343 mm suitable for 400 mm wide cabinets
- Material thickness of 1.5 mm for durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial enclosure assembly and electrical safety standards.
Applications
- Industrial enclosures for electrical and electronic equipment
- Mounting DIN rail components in cabinets with 400 mm width
- Use in Atlantic stainless steel and Marina cabinets
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Steel construction allows for recycling and reuse
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific terms.
Available Now
The Legrand Lina 25 Rail for cabinets width 400 mm is available for immediate purchase, ideal for industrial and commercial electrical enclosure applications.
