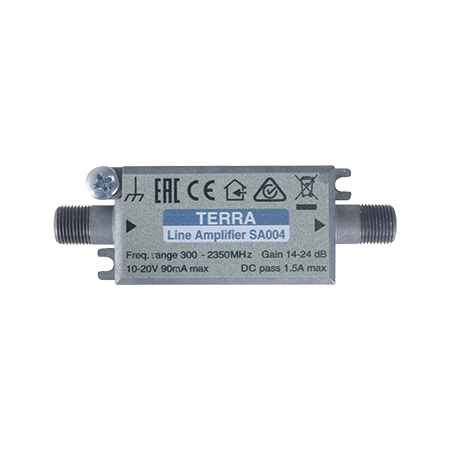

Line Amplifier 300-2350MHz | 14-24dB Gain | 10-20V DC by Matchmaster
Line amplifier with 300-2350MHz frequency range and adjustable 14-24dB gain—ideal for TV signal boosting. Built for residential and commercial use, with efficient DC voltage operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 300-2350MHz 10-20V DC 14-24dB Gain Line Amplifier
Brand: Matchmaster
SKU: 14MM-SA004
Alternatively Known As: Satellite Line Amplifier, Wideband Signal Booster, Satellite Signal Amplifier
Technical Specifications
- Frequency Range: 300-2350 MHz
- Gain (Fixed Slope Pre-correction): 14-24 dB
- Noise Figure: 8 dB
- Maximal Outlet Level: IMD3=35 (EN50083-3) 115 dBµV
- DC Pass: 20 V 1.5 A max.
- Current Consumption: 10-20 V 90 mA max.
- Operating Temperature Range: -20 ºC to +50 ºC
- Dimensions (H x L x W): 27mm x 19mm x 80mm
- Weight: 0.085 kg
Key Features
- Downstream frequency range 300-2350MHz with 14-24dB gain
- DC and tone pass through

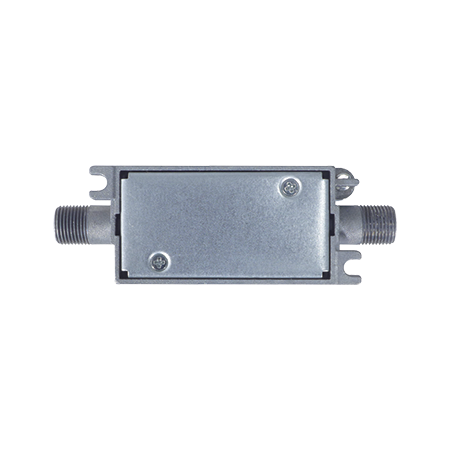

- Robust die-cast housing
- Powered by set top box, 10-20VDC with 90mA maximum current draw
- 14-24dB pre-slope built in across 300-2350MHz
- Maximum output: IMD3 = 35dB (EN50083-3) 115dBuV
- Operating temperature range -20 to +50 degrees C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Satellite signal boosting for longer input cable runs
- Use between set-top box or launch amplifier and LNB
- Suitable for satellite TV and communication systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves signal quality reducing need for additional equipment
- Low power consumption with efficient DC operation
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 300-2350MHz 10-20V DC 14-24dB Gain Line Amplifier is available now for immediate purchase. Ideal for satellite signal boosting in residential and commercial satellite TV installations.
