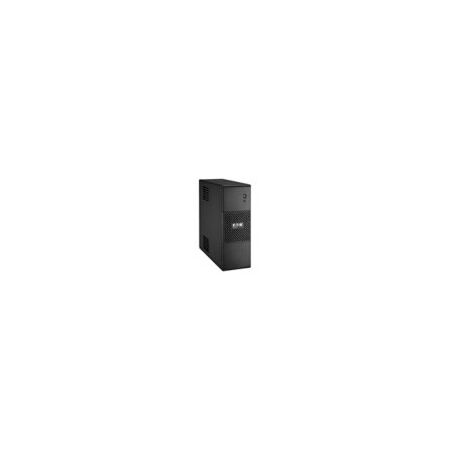

Line Interactive UPS 550VA/330W | Low Noise | Surge Protection & USB Communication by Eaton

BRAND: Eaton
SKU: 9207-43387
$260.70 List price: $324.80
+
Protect your sensitive electronics with this line interactive UPS, offering 550VA/330W power capacity and low noise operation under 40 dB. Ideal for home offices and small businesses, it features surge protection and a user-replaceable battery for reliable backup power.

Product Name/Title: Line Interactive UPS 550VA/330W | Low Noise | Surge Protection & USB Communication by Eaton

Brand: Eaton

SKU: 9207-43387

Alternatively Known As: Eaton 5S UPS 550VA, Eaton 5S Line Interactive UPS, Eaton 5S 330W UPS, Eaton 5S Battery Backup

Technical Specifications
  • Power Rating: 550 VA / 330 W
  • Input Voltage Range: 175-275 V
  • Output Voltage: 240 V nominal
  • Output Frequency: 50/60 Hz autoselect
  • Output Waveform: Step wave
  • Battery Type: Sealed lead-acid, 12V / 5Ah
  • Battery Management: Replaceable batteries, automatic battery test, deep-discharge protection, cold-start capable
  • Communication Interface: HID-compliant USB port
  • Noise Level: <40 dB at 1 meter
  • Operating Temperature: 0° to 40°C
  • Relative Humidity: 0-85% non-condensing
  • Construction: Free standing tower model
  • Surge Protection: Yes
  • Phase: Single-phase input and output
  • Dimensions (H x L x W): 250mm x 87mm x 260mm
  • Weight: 4.96 kg
Key Features
  • Line-interactive topology for reliable power conditioning
  • 550 VA / 330 W power capacity
  • Outputs: (3) Australian 10A sockets, (3) Australian 10A surge-only sockets
  • User replaceable sealed lead-acid battery (12V / 5Ah)
  • Automatic battery test and deep-discharge protection
  • HID-compliant USB port for communication and safe system shutdown
  • Low noise level: less than 40 dB at 1 meter
  • Operating temperature range: 0° to 40°C
  • Surge protection included
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
  • Protecting sensitive electronic equipment from power interruptions and surges
  • Ideal for home office, small business, and IT equipment backup power
  • Suitable for use with computers, networking devices, and telecommunications equipment
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Energy-efficient design reduces power consumption during standby
  • Automatic battery test extends battery life and reduces waste
  • Supports safe system shutdown to prevent data loss and hardware damage
Warranty Information

Standard manufacturer warranty applies; please refer to Eaton for specific warranty terms.

Available Now

The Eaton 5S 550VA/330W Line Interactive UPS LED is available for immediate purchase, ideal for protecting home office and small business electronic equipment.

Product specifications (skuPage.5S550I-AU.pdf, 51 Kb) [Download]
