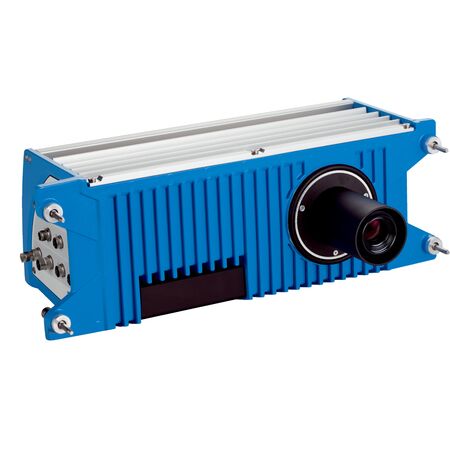

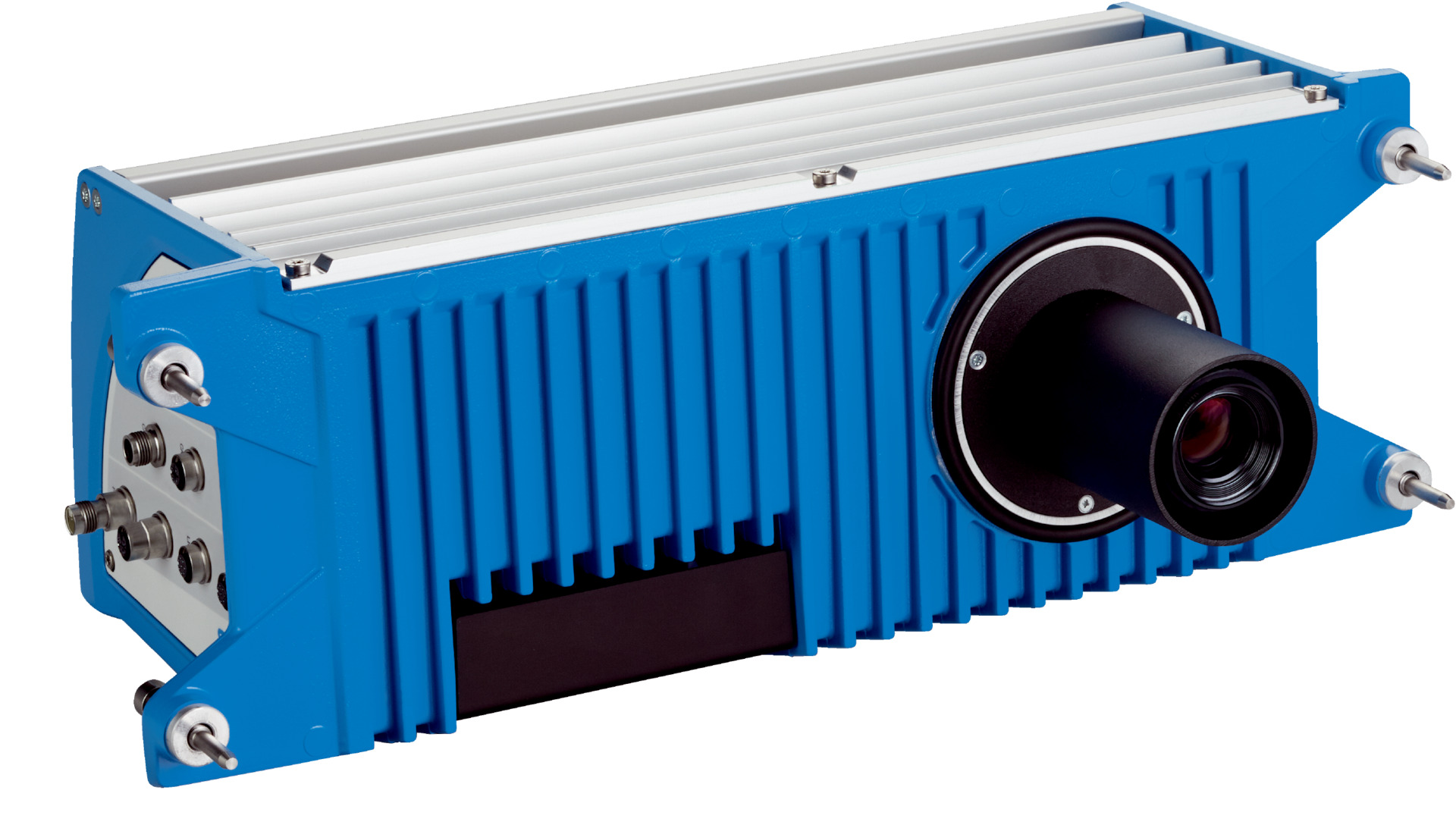

Line Scan Camera ICD890-44342020 | 8192 px Resolution | Integrated 1D/2D Code Decoder | IP65 Rated | by SICK
The Line Scan Camera ICD890-44342020 features a high-resolution 8192 px CMOS monochrome sensor, perfect for indoor industrial automation and code reading applications. With an integrated 1D/2D code decoder and a robust IP65-rated housing, it ensures reliable performance in demanding environments. Ideal for object classification and dimensioning, this camera supports various barcode types and operates at a high line frequency of up to 50 kHz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS line sensor monochrome
- Sensor resolution: 8192 px (200 dpi)
- Processor: Standard performance
- Line frequency: Max. 50 kHz
- Lens: Integrated, focal length 95 mm
- Reading distance: 1550 mm to 3600 mm
- Field of view: 1200 mm (170 dpi), 1035 mm (200 dpi)
- Code resolution: ≥ 0.1 mm
- Operating modes: Forward, backward, start/stop
- Power supply: 24 V DC, –10% +20%
- Power consumption: Typical 80 W, standby 50 W
- Battery: TL-2450 lithium thionyl chloride, non-rechargeable
- Connection types: Multiple M12 connectors, USB 2.0
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 61010-1:2010-10
- MTBF: 120,000 hours
- MTTR: < 10 minutes
- Readable code structures: 1D, 2D, stacked, plain text
- Supported barcode types: GS1-128, UPC, EAN, Code 39, Code 128, QR code, Data Matrix ECC200, Aztec, PDF417
- Transport speed: ≤ 4.5 m/s
- Image output formats: JPEG, TIFF, BMP
- Data transmission rate: 20 kbit/s to 500 Mbit/s
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 179mm x 487mm x 300mm
- Weight: 11 kg
Key Features
- Line camera with integrated 1D/2D code decoder and image output
- Dynamic and fixed optical focus with 95 mm integrated lens
- CMOS monochrome line sensor with 8192 px resolution (200 dpi)
- Supports forward, backward, start/stop operating modes
- Extended code quality analysis, empty tote detection, object classification, and 2D dimensioning
- High-speed line frequency up to 50 kHz
- Multiple interfaces including Ethernet (3x), CAN (2x), USB 2.0
- Robust aluminum die-cast housing with IP65 rating
- Operating temperature range from -10 °C to +50 °C
- Supports various 1D and 2D barcode types including GS1-128, QR code, Data Matrix ECC200
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper integration and compliance with electrical safety standards.
Applications
- Indoor area applications requiring high-resolution line scanning and code decoding
- Industrial automation for barcode and 2D code reading
- Object classification and dimensioning in manufacturing and logistics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient operation with typical power consumption of 80 W and standby 50 W
- Non-rechargeable lithium thionyl chloride battery with low environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ICD890-44342020 line camera is available for immediate purchase, ideal for indoor industrial automation and code reading applications.
