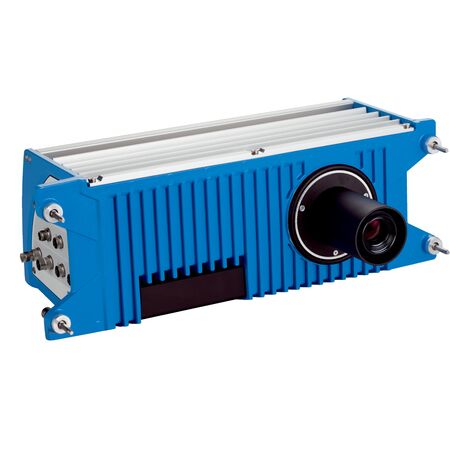

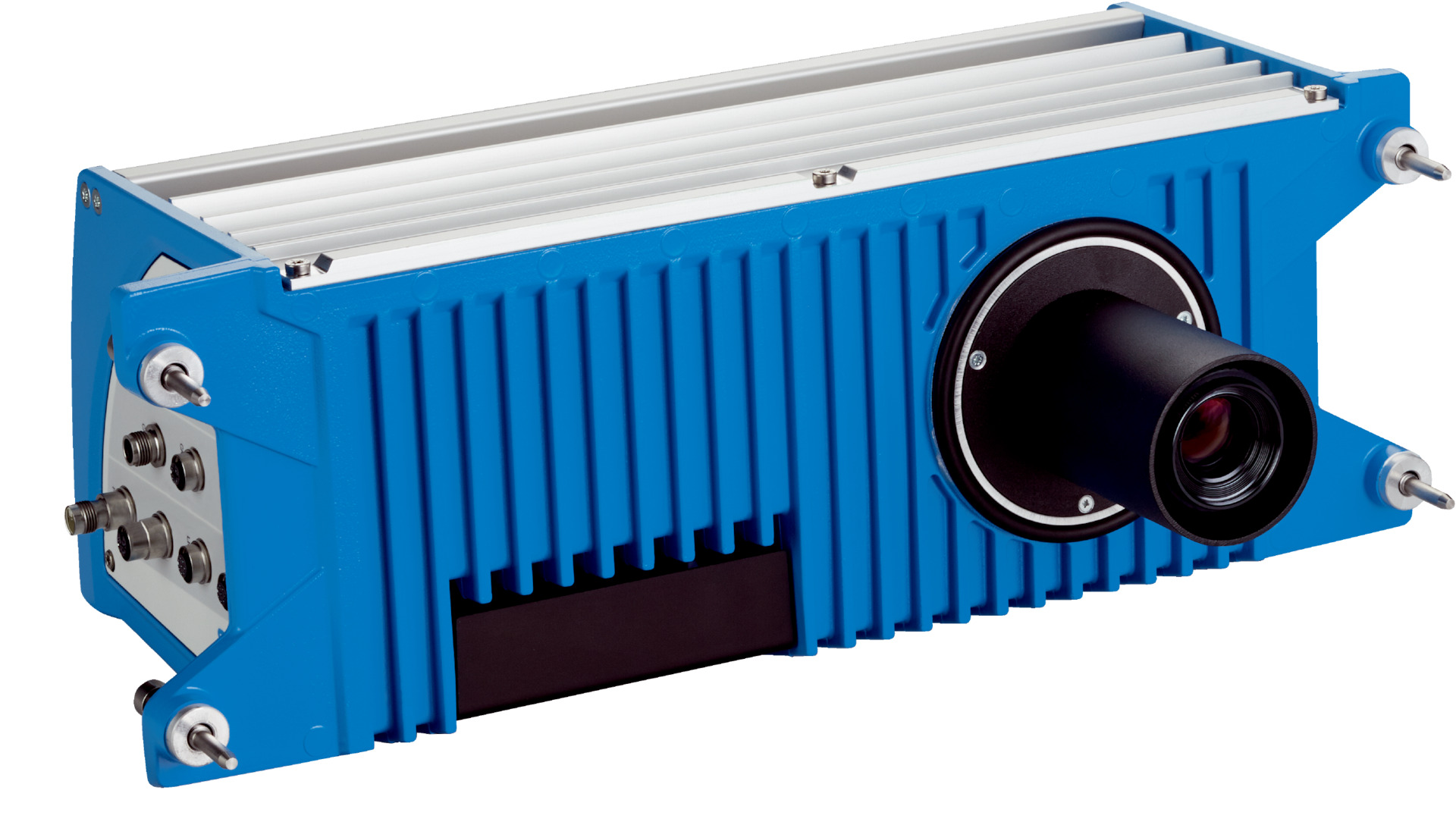

Line Scan Camera ICD890-47232010 | 12,288 px Resolution | IP65 Rated | by SICK

BRAND: SICK
SKU: 1092554
$98,427.50 List price: $123,713.10
+ −
30 Days Return Delivery Options
The Line Scan Camera ICD890-47232010 features a high-performance CMOS color line sensor with a resolution of 12,288 px, making it perfect for indoor barcode and code scanning applications. With a robust IP65-rated aluminum housing and support for multiple barcode types, this camera is designed for industrial automation and quality control, ensuring reliable performance in demanding environments.
Technical Specifications
  • Sensor: CMOS Color line sensor
  • Sensor resolution: 12,288 px (200 dpi)
  • Processor: High performance
  • Line frequency: Max. 43 kHz
  • Lens: Integrated, focal length 120 mm
  • Reading distance: 1,550 mm to 3,900 mm
  • Field of view: 1,800 mm (170 dpi), 1,560 mm (200 dpi)
  • Code resolution: ≥ 0.1 mm
  • Operating mode: Forward, backward, start/stop
  • Working range: 1,550 mm to 3,900 mm
  • Connection types: Multiple M12 connectors (Ethernet, I/O, CAN), USB 2.0
  • Supply voltage: 24 V DC, –10 % +20 %
  • Power consumption: Typical 80 W, standby 50 W
  • Battery: Lithium thionyl chloride, non-rechargeable
  • Housing material: Aluminum die cast
  • Enclosure rating: IP65
  • Protection class: III
  • Electrical safety: EN 61010-1:2010-10
  • Weight: Approx. 11 kg
  • MTBF: 120,000 hours
  • MTTR: < 10 minutes
  • Readable code structures: 1D, 2D, stacked, plain text
  • Supported barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, postal codes
  • Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec, PDF417
  • Skew angle: ≤ 75°
  • Transport speed: ≤ 4.5 m/s
  • Minimum object distance: ≥ 50 mm
  • Number of objects per second: ≤ 10
  • Image types: JPEG, TIFF, BMP
  • Image output: FTP clients, AWS S3 client, FTP Server, Samba Server, REST Server
  • Configuration software: SOPAS ET
  • Memory card: 2.5 inch SSD and microSD for data logging and configuration backup
  • Electromagnetic compatibility: IEC 61000-6-4:2018 / IEC 61000-6-2:2019
  • Vibration resistance: IEC 60068-2-6:2007-12
  • Shock resistance: IEC 60068-2-27:2008-02
  • Ambient operating temperature: –10 °C to +50 °C
  • Storage temperature: –20 °C to +70 °C
  • Permissible relative humidity: 95%, non-condensing
  • Ambient light immunity: 2,000 lx on code
  • Contamination rating: 2 (EN 61010-1)
  • Altitude: < 2,000 m
  • Dimensions (H x L x W): 179mm x 487mm x 300mm
  • Weight: 11 kg
Key Features
  • Line camera with integrated 1D/2D code decoder and image output in black/white and color
  • Dynamic and fixed optical focus with CMOS color line sensor
  • High sensor resolution of 12,288 px (200 dpi) for high accuracy
  • High performance processor with max line frequency of 43 kHz
  • Extended code quality analysis and empty tote detection
  • Supports multiple barcode and 2D code types including GS1, QR, Data Matrix, Aztec, and PDF417
  • Multiple interfaces including Ethernet (3x), USB 2.0, CAN In/Out
  • Robust aluminum die cast housing with IP65 rating and protection class III
  • Operating temperature range from -10°C to +50°C
  • Supports image output via FTP, AWS S3, Samba, and REST servers
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure proper setup and compliance with electrical safety standards.
Applications
  • Indoor area barcode and code scanning
  • Industrial automation and quality control
  • Object classification and hazardous material detection
  • 2D dimensioning and image-based object measurement
Standards & Compliance
  • Complies with AS/NZS 61010-1 Electrical Equipment Safety Standards
Environmental Benefits
  • Energy-efficient 24 V DC power supply with typical consumption of 80 W
  • Durable aluminum housing ensures long product life and reduced waste
  • Non-rechargeable lithium thionyl chloride battery with low environmental impact
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK ICD890-47232010 line camera is available for immediate purchase, ideal for indoor industrial automation and code reading applications.
