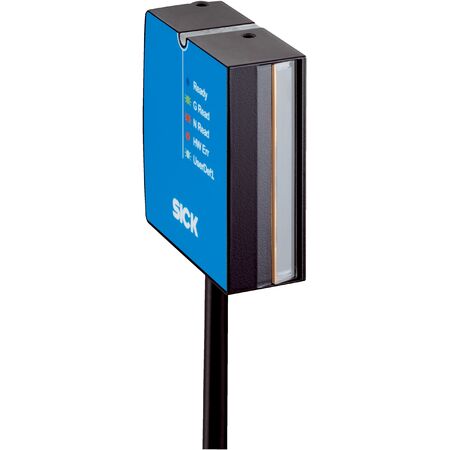

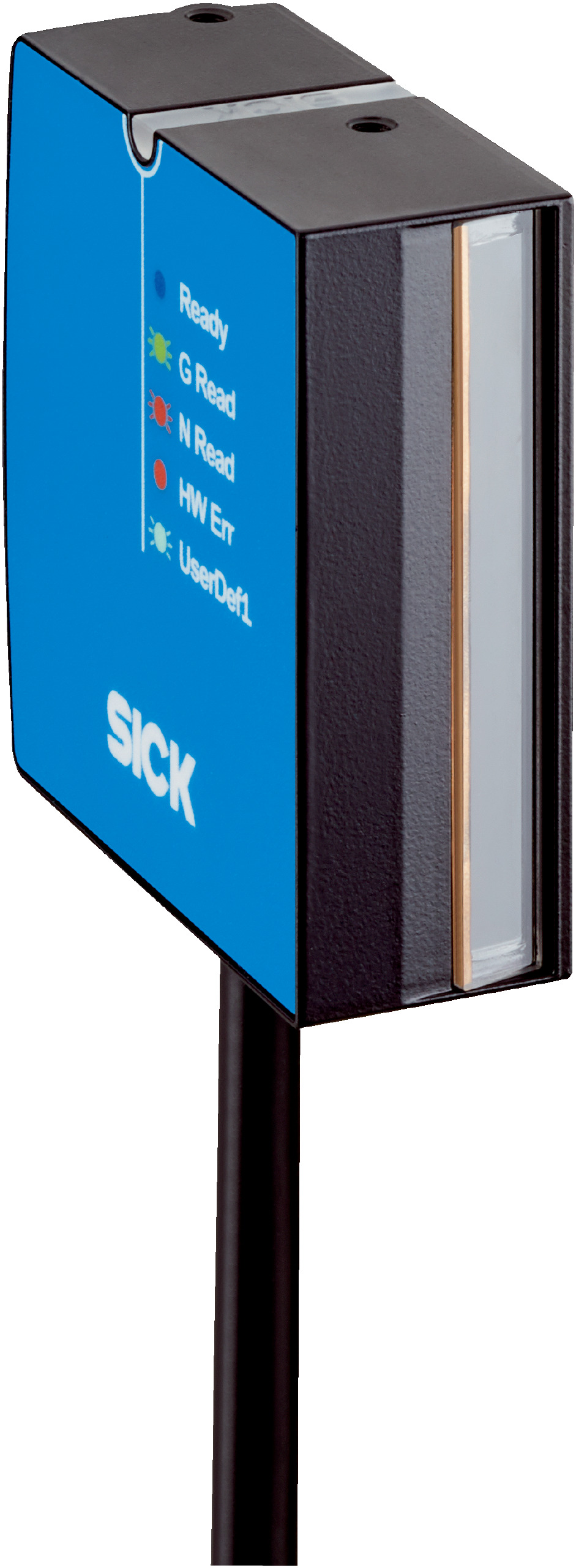

Line Scanner Barcode Reader CLV601-0D200 | CMOS Sensor | 2048 Pixel Resolution | 750 Hz Scanning Frequency | by SICK
The Line Scanner Barcode Reader CLV601-0D200 features a high-resolution CMOS sensor with 2048 pixels and a fixed optical focus at 30 mm, making it perfect for industrial automation and logistics applications. With a robust zinc diecast housing and an impressive scanning frequency of 750 Hz, this barcode reader ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 9-pin D-sub male connector (2 m)
- Sensor type: Line scanner with CMOS line sensor
- Sensor resolution: 2048 pixels
- Optical focus: Fixed at 30 mm
- LED class: Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09)
- Light source: Red LED, 626 nm wavelength
- Aperture angle: ≤ 71°
- Reading distance: 15 mm to 70 mm
- Scanning frequency: 750 Hz
- Reading angle tolerances: Tilt α ±5° to ±25°, Pitch β ±6° to ±15°, Skew γ ±20° to ±30° depending on code resolution
- Code resolution: 0.125 mm to 0.5 mm
- Supply voltage: 5 V DC ±10%
- Power consumption: Typically 1 W
- Housing material: Zinc diecast
- Window material: Plastic
- Enclosure rating: IP40
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 230 g including cable
- MTBF: 100,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1
- Number of codes per reading interval: 1 to 15 (auto-discriminating)
- Number of characters per reading interval: 450
- Number of characters per code: up to 30
- Digital inputs: 1 (max 30 V)
- Digital outputs: 2 (max 50 mA)
- Data transmission rate: 2,400 Baud to 250 kBaud, AUX 57.6 kBaud
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 5,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 20mm x 55mm x 52mm
- Weight: 0.23 kg
Key Features
- Fixed optical focus at 30 mm
- CMOS line sensor with 2048 pixel resolution
- Reads all current 1D barcode types including Code 39, Code 128, UPC, EAN
- High scanning frequency of 750 Hz
- Robust zinc diecast housing with IP40 rating
- Serial RS-232 interface with data rates up to 250 kBaud
- Multifunctional RGB LED and acoustic beeper indicators
- Wide reading angle tolerance with tilt, pitch, and skew adjustments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration according to industrial standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Label verification and tracking
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption at approximately 1 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV601-0D200 Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and logistics applications.
