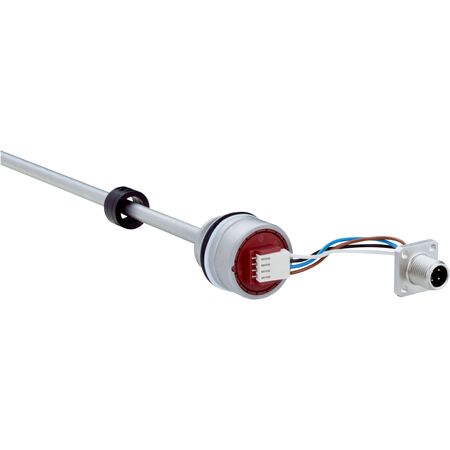

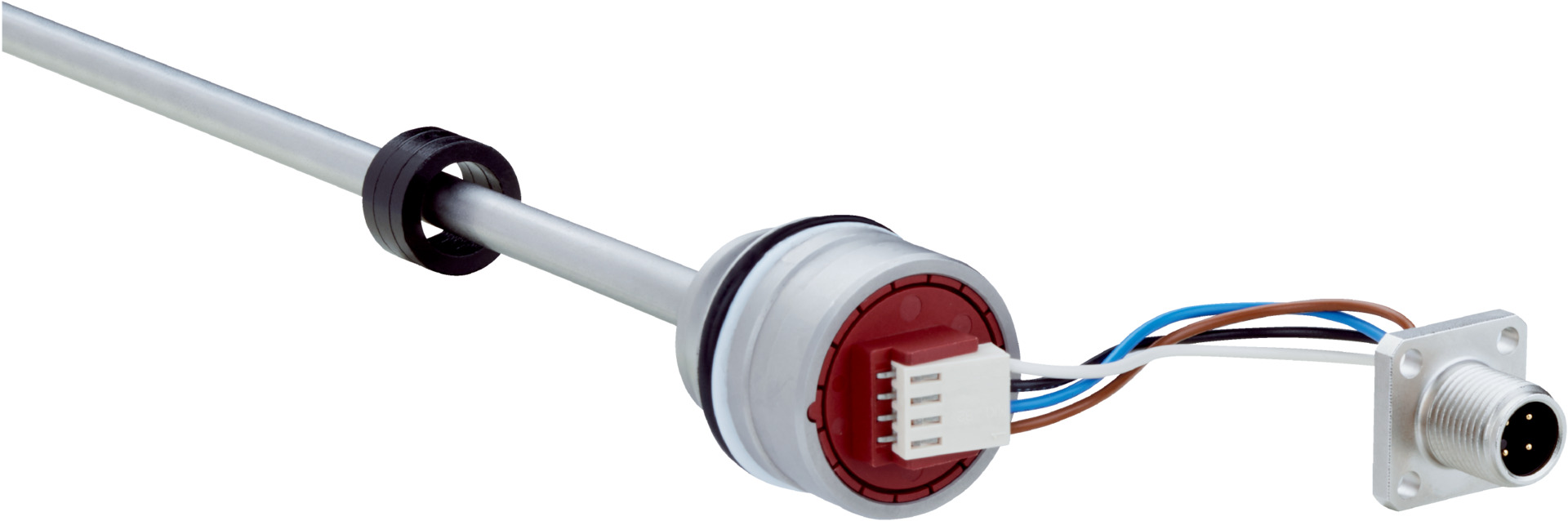

Linear Encoder MAX30N-72E32FF0318 | 30 mm Installation Housing | IP67 & IP69K Rated | by SICK
The MAX30N-72E32FF0318 linear encoder is designed for precise position and speed measurement in industrial automation. With a measuring range of up to 318 mm and a robust stainless steel housing, it operates effectively in harsh environments. Ideal for hydraulic cylinder position feedback and machine tool positioning, this encoder features a CANopen communication interface and operates within a temperature range of -30 °C to +95 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX30N-72E32FF0318 | 30 mm Installation Housing | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1145460
Alternatively Known As: Linear position sensor, Linear displacement encoder, CANopen linear encoder, Hydraulic cylinder position sensor
Technical Specifications
- Installation housing: 30 mm for IN cylinder mounting
- Measuring range: 0 mm to 318 mm
- Speed measurement: 0 to 1000 mm/s
- Null zone: 21.5 mm
- Damping zone: 30 mm
- Operating temperature: -30 °C to +95 °C
- Air humidity: 90% (no condensation)
- Operating pressure: 320 bar
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms
- Communication interface: CANopen
- Bus protocol: CANopen CiA DS-301
- Device profile: CANopen CiA DS-406
- Electrical power consumption: ≤ 0.75 W
- Current consumption: ≤ 30 mA
- Overvoltage protection: ≤ 36 V at all poles during power-up (60 s)
- Reverse polarity protection: ≤ 36 V (ISO 16750-2)
- Insulation resistance: ≥ 10 MΩ (ISO 16750-2)
- Dielectric strength: 500 V DC to housing (ISO 16750-2)
- Short-circuit protection: VS – GND on housing
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- O-ring: NBR 70
- Support ring: PTFE
- Connector: Male M12 type L, 5-pin
- Enclosure rating: IP67 housing, IP69K M12 connector
- Dimensions (H x L x W): 30mm x 110mm x 30mm
- Weight: 0.5 kg
Key Features
- 30 mm installation housing for IN cylinder mounting
- Measuring range up to 318 mm
- Position and speed measurement with up to 1000 mm/s speed
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- Operating temperature range from -30 °C to +95 °C
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Short switch-on time < 250 ms
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems and CANopen networks is recommended to ensure proper setup and safety.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and agricultural equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy efficiency
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX30N-72E32FF0318 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position feedback applications.
