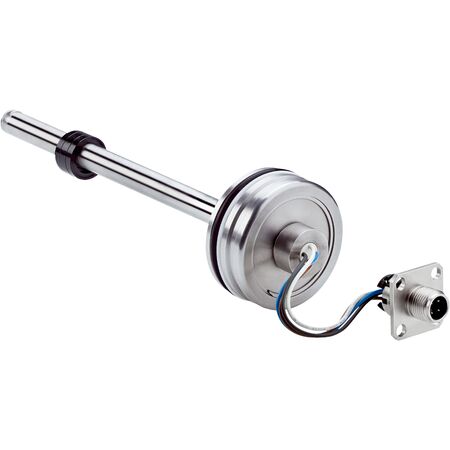

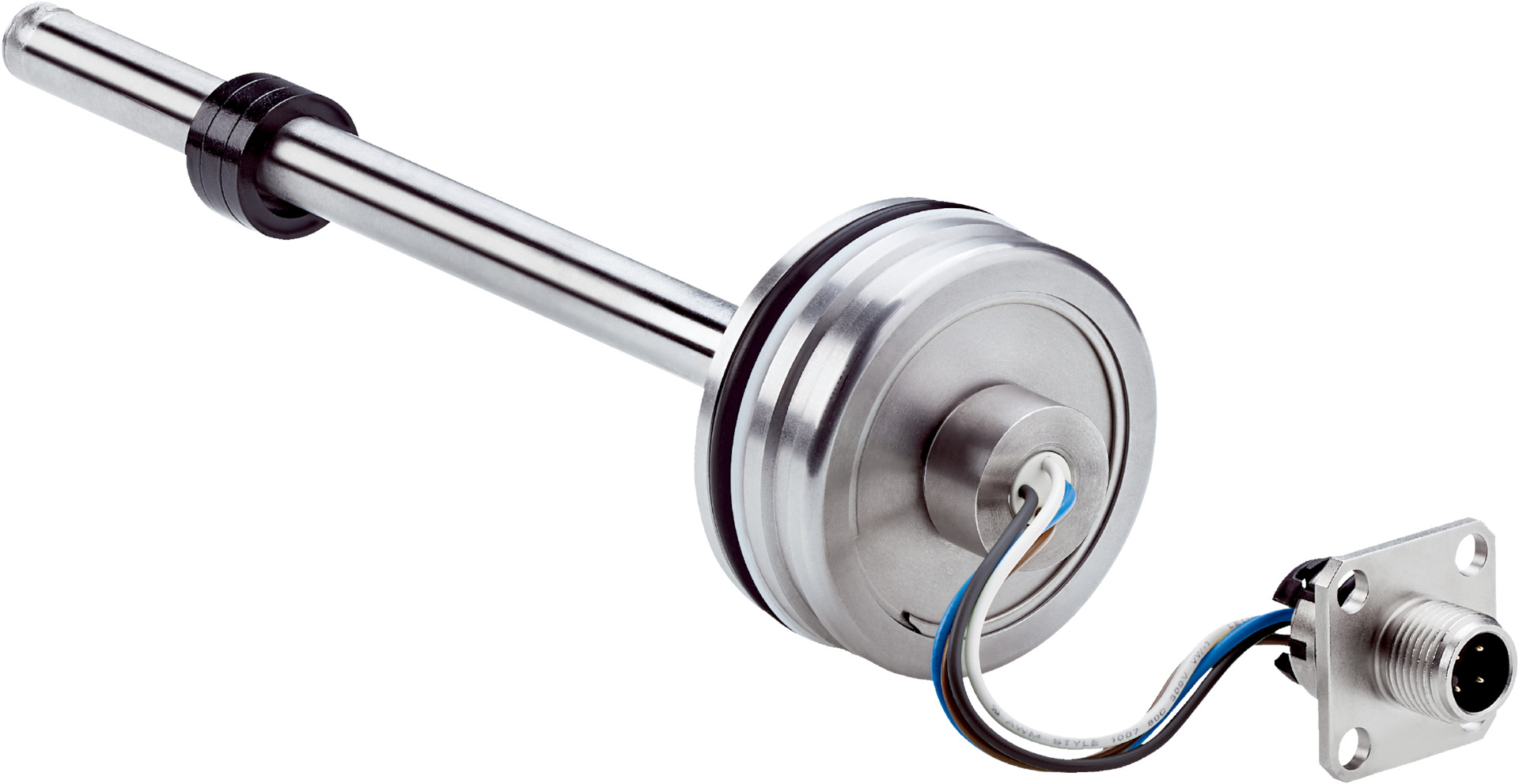

Linear Encoder MAX48A-32C01FH1155 | 1155 mm Measuring Range | IP67 & IP69K Rated | by SICK
The MAX48A-32C01FH1155 linear encoder is designed for precise position and speed measurement in industrial automation. With a measuring range of up to 1155 mm and high accuracy of ±0.1 mm hysteresis, it’s perfect for hydraulic cylinder feedback and machine tool positioning. Built with robust stainless steel housing and IP67/IP69K protection, this encoder ensures reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX48A-32C01FH1155 | 1155 mm Measuring Range | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1126261
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, CANopen linear transducer, industrial linear position sensor
Technical Specifications
- Measuring range: 0 mm to 1155 mm
- Speed measurement: 0 to 1000 mm/s
- Accuracy: Hysteresis ±0.1 mm, Repeatability ±0.2 mm, Linearity ±0.25 mm (50-500 mm range)
- Operating temperature: -30 °C to +95 °C (fluid), -40 °C to +105 °C (electronics)
- Operating pressure: 400 bar nominal, 480 bar max overload, 600 bar test pressure
- Supply voltage: 24 V DC (8 to 32 V DC)
- Communication: CANopen CiA DS-301 and DS-406
- Connector: Male M12 type L, 5-pin
- Protection rating: IP67 housing, IP69K connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Dimensions (H x L x W): 48mm x 140mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 1155 mm with position and speed output
- High accuracy with hysteresis ±0.1 mm and repeatability ±0.2 mm
- Operating pressure up to 400 bar, suitable for harsh environments
- CANopen communication interface with configurable transmission rate
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for water and dust protection
- Overvoltage and reverse polarity protection
- Fast switch-on time under 250 ms
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and electrical wiring is recommended to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and heavy equipment monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48A-32C01FH1155 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
