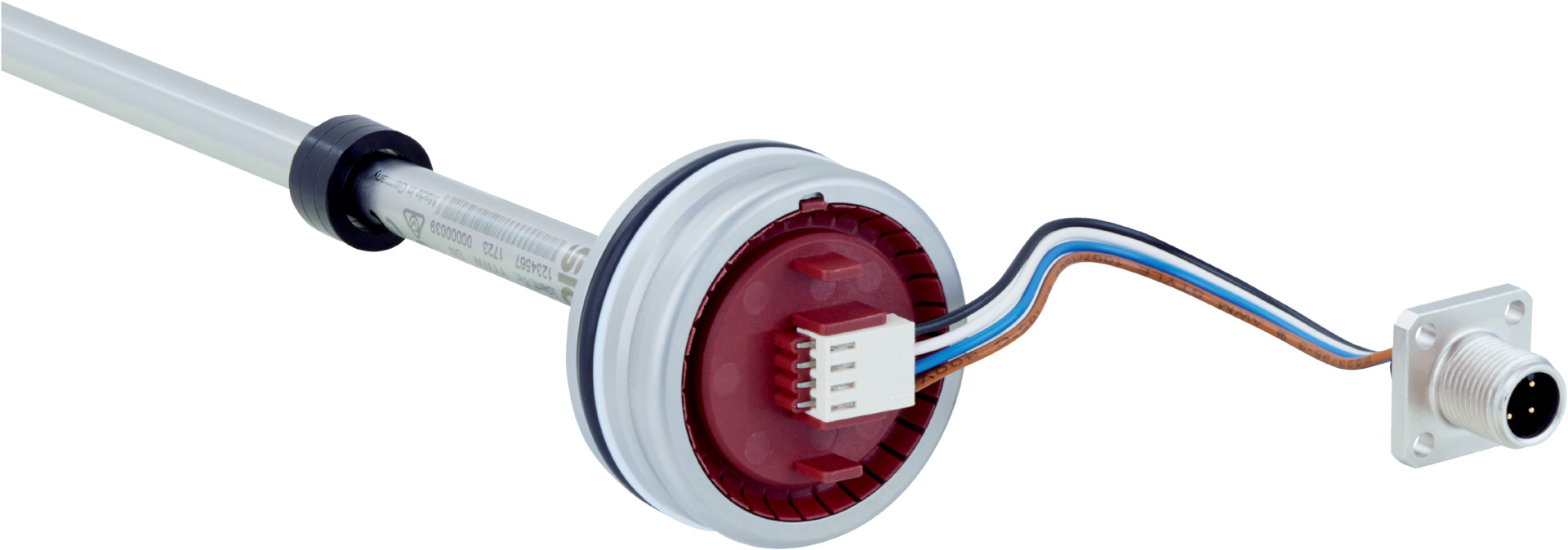

Linear Encoder MAX48N-11V10AC0100 | 0-100 mm Measuring Range | IP67 & IP69K Rated | by SICK
The MAX48N-11V10AC0100 linear encoder is designed for precise position measurement in industrial automation and hydraulic applications. With a measuring range of 0 mm to 100 mm and high accuracy of ±1 mm, it ensures reliable performance even in harsh environments, thanks to its robust IP67 and IP69K rated stainless steel housing. Ideal for machine tool positioning and robotics, this encoder supports efficient operation with low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX48N-11V10AC0100 | 0-100 mm Measuring Range | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1219795
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder position sensor, Analog linear transducer
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 100 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating pressure: 400 bar (max overload 480 bar)
- Supply voltage: 12 V DC (8 to 16 V DC)
- Output signal: Analog voltage 0.5 V DC to 4.5 V DC
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms internal
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Temperature range (electronics): -40 °C to +105 °C
- Enclosure rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (1.4305), pressure pipe (1.4404), O-ring (NBR 70), support ring (PTFE)
- Connector: Male M12 type S, 4-pin
- Dimensions (H x L x W): 48mm x 100mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing suitable for IN cylinder mounting
- Measuring range of 0 mm to 100 mm with null and damping zones of 30 mm each
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Robust stainless steel housing (1.4305 AISI 303) and pressure pipe (1.4404 AISI 316L)
- IP67 rated housing and IP69K rated M12 male connector for harsh environments
- Analog voltage output from 0.5 V DC to 4.5 V DC
- Electrical protection including overvoltage, reverse polarity, and short-circuit protection
- Operating temperature range from -40 °C to +105 °C (electronics)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-11V10AC0100 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
