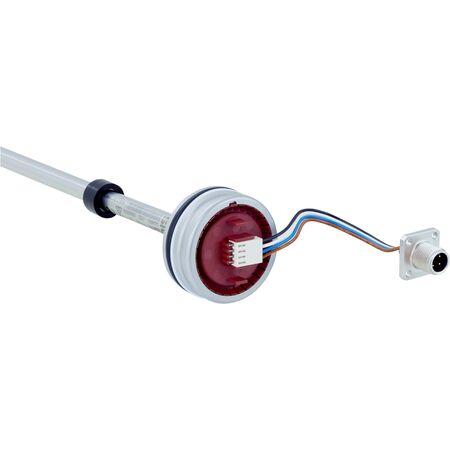

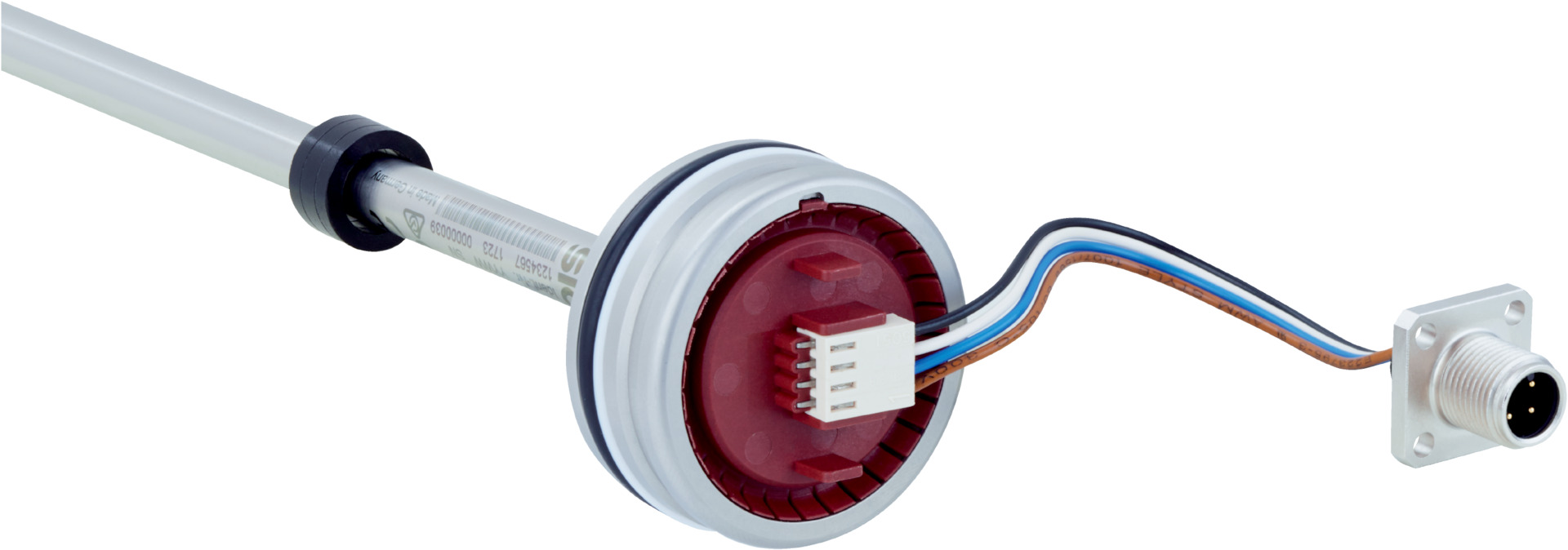

Linear Encoder MAX48N-11V10BA0400 | 48 mm Housing | 0-400 mm Measuring Range | IP67 Rated | by SICK
The MAX48N-11V10BA0400 linear encoder is designed for precise position measurement in industrial automation and hydraulic applications. With a measuring range of 0 mm to 400 mm and an accuracy of ±1 mm, it ensures reliable performance even in harsh environments, thanks to its IP67 rated housing and robust stainless steel construction. Ideal for machine tool positioning and robotics, this encoder is built to withstand high operating pressures and temperatures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX48N-11V10BA0400 | 48 mm Housing | 0-400 mm Measuring Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1222593
Alternatively Known As: Linear position sensor, Linear displacement encoder, Hydraulic cylinder position sensor, Analog linear encoder
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 mm to 400 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating pressure: 400 bar (max 480 bar overload)
- Operating temperature: -30 °C to +95 °C
- Supply voltage: 12 V DC (8 to 16 V DC)
- Output signal: Analog voltage 0.5 V DC to 4.5 V DC
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Connector: Male M12 type S, 4-pin
- Protection rating: IP67 housing, IP69K connector
- Electrical protections: Overvoltage, reverse polarity, short-circuit
- Dimensions (H x L x W): 48mm x 60mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing suitable for IN cylinder mounting
- Measuring range of 0 mm to 400 mm with 30 mm null and damping zones
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Operating temperature range from -30 °C to +95 °C
- IP67 rated housing and IP69K rated M12 male connector for harsh environments
- Analog voltage output from 0.5 V DC to 4.5 V DC
- Robust stainless steel housing and pressure pipe materials
- Short-circuit, overvoltage, and reverse polarity protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in automated systems
- Robust design minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48N-11V10BA0400 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
