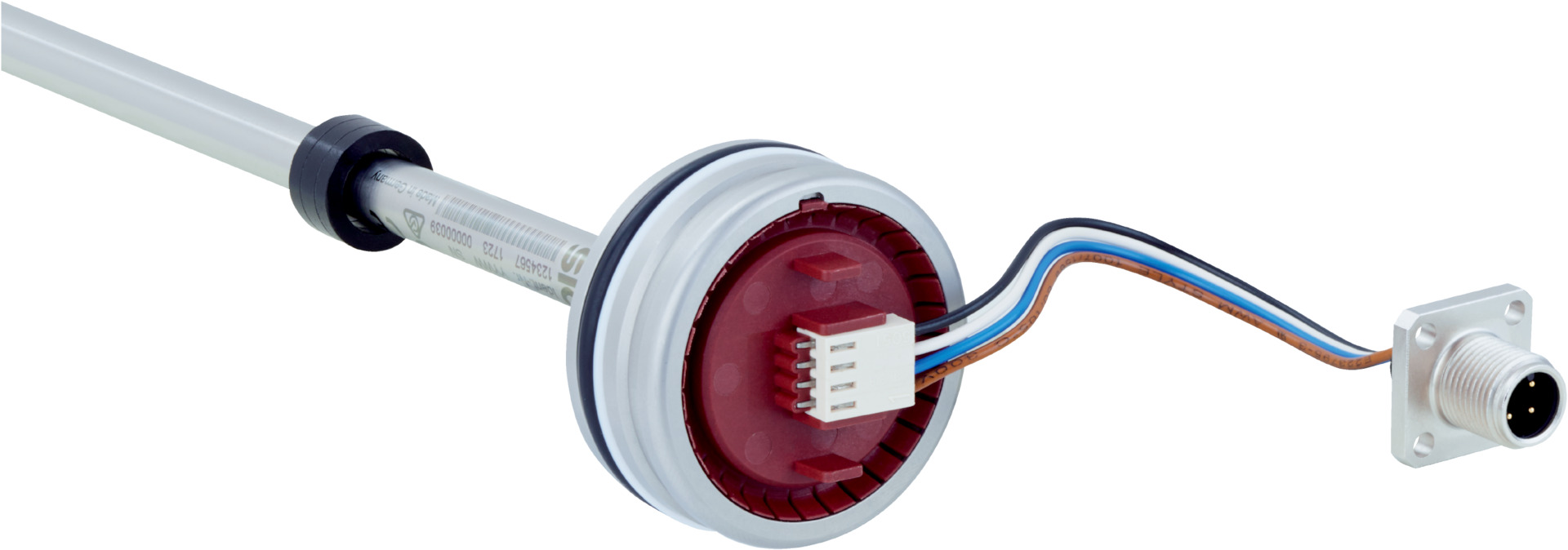

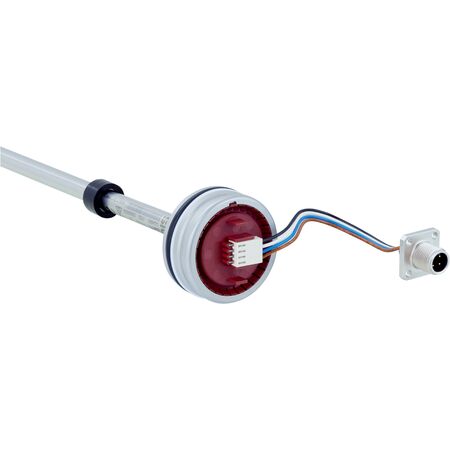

Linear Encoder MAX48N-12A10AC0156 | 48 mm Installation Housing | 0-156 mm Measuring Range | High Accuracy | by SICK
The MAX48N-12A10AC0156 linear encoder is designed for precise position measurement in industrial automation and hydraulic applications. With a robust 48 mm installation housing and a measuring range of 0 mm to 156 mm, it ensures high accuracy with a setpoint tolerance of ±1 mm. Built for reliability, it features stainless steel construction and is IP67 rated, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX48N-12A10AC0156 | 48 mm Installation Housing | 0-156 mm Measuring Range | High Accuracy | by SICK
Brand: SICK
SKU: 1220674
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, industrial linear position sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 156 mm
- Null zone: 30 mm
- Damping zone: 30 mm
- Operating pressure: 400 bar (max overload 480 bar)
- Fluid temperature range: -30 °C to +95 °C
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, hysteresis ±0.1 mm, repeatability ±0.2 mm
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 housing, IP69K M12 connector
- Electrical protections: Overvoltage, reverse polarity, short-circuit
- Dimensions (H x L x W): 48mm x 156mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range of 0 mm to 156 mm with 30 mm null and damping zones
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Operating pressure up to 400 bar with overload pressure 480 bar
- Operating temperature range from -30 °C to +95 °C
- Analog current output 4 mA to 20 mA
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage, reverse polarity, and short-circuit protection included
- Fast switch-on time < 250 ms and measuring frequency 2 ms
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and factory automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 1.25 W) supports energy-efficient operation
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MAX48N-12A10AC0156 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
