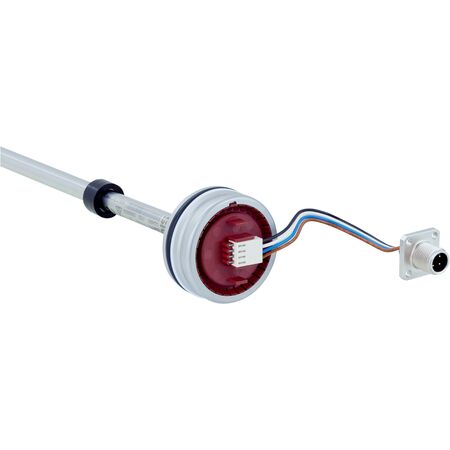

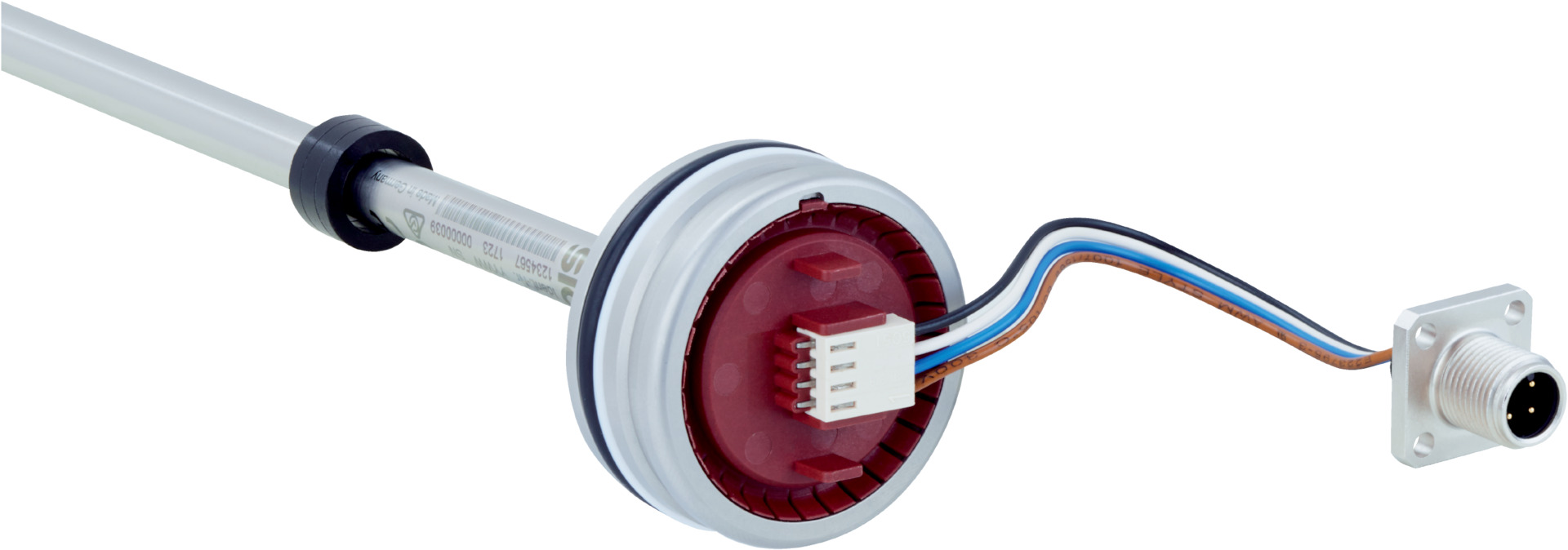

Linear Encoder MAX48N-32A10ED0300 | 48 mm Housing | 300 mm Measuring Range | IP67 & IP69K Rated | by SICK
The MAX48N-32A10ED0300 linear encoder is designed for precise position measurement in industrial automation and hydraulic applications. With a robust 48 mm installation housing and a measuring range of up to 300 mm, it ensures high accuracy with a setpoint tolerance of ±1 mm. Built for harsh environments, it features IP67 and IP69K ratings, making it ideal for machine tool positioning and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX48N-32A10ED0300 | 48 mm Housing | 300 mm Measuring Range | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1127212
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, analog linear transducer, industrial linear position sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 300 mm
- Null zone: 30 mm
- Damping zone: 63 mm
- Operating temperature: -30 °C to +95 °C
- Operating pressure: 400 bar (max overload 480 bar)
- Supply voltage: 24 V DC (8 to 32 V DC)
- Current output: 4 mA to 20 mA analog signal
- Switch-on time: < 250 ms
- Measuring frequency: 2 ms
- Accuracy: Setpoint tolerance ≤ ±1 mm, hysteresis ±0.1 mm, repeatability ±0.2 mm
- Housing material: Stainless steel 1.4305 (AISI 303)
- Pressure pipe material: Stainless steel 1.4404 (AISI 316L)
- Protection rating: IP67 housing, IP69K M12 connector
- Connector: Male M12 type L, 4-pin
- Dimensions (H x L x W): 48mm x 90mm x 48mm
- Weight: 0.5 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 300 mm with null zone of 30 mm and damping zone of 63 mm
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability typically ±0.2 mm
- Operating temperature range from -30 °C to +95 °C
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- Analog current output 4 mA to 20 mA
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage, reverse polarity, and short-circuit protection included
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Robotics and assembly line automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- High accuracy reduces energy waste in automated systems
- Robust design minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MAX48N-32A10ED0300 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic position sensing applications.
