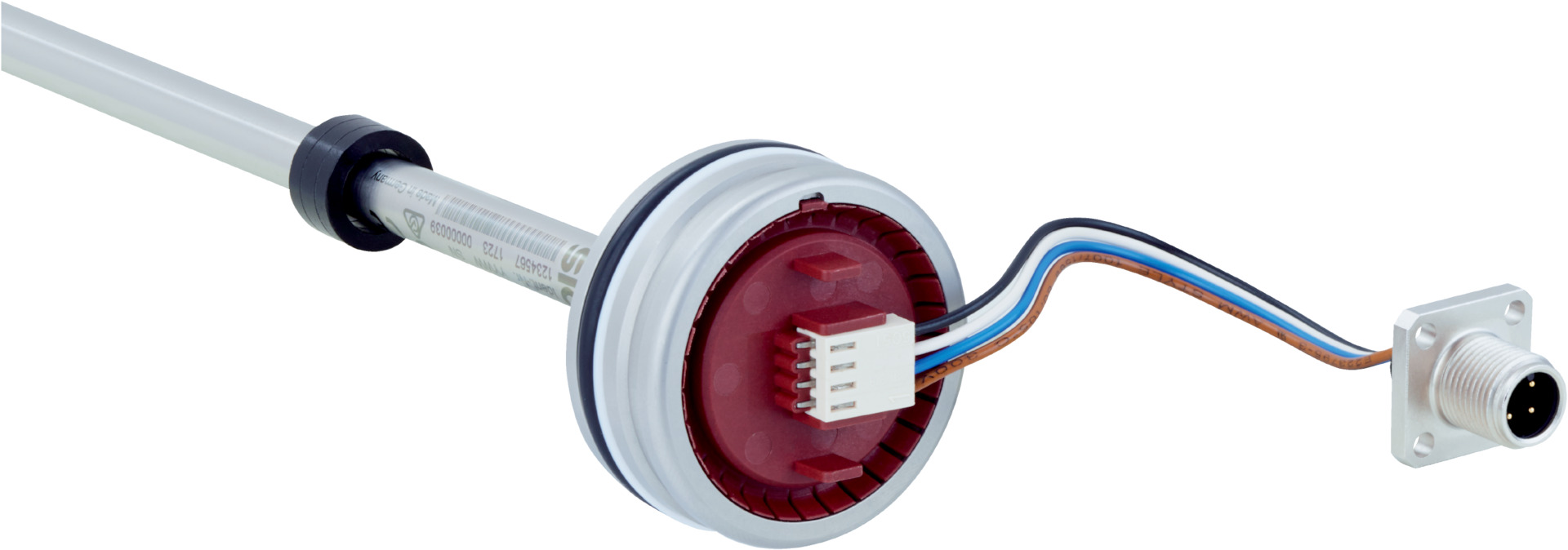

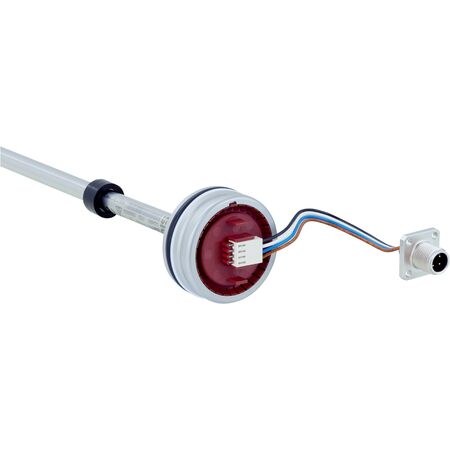

Linear Encoder MAX48N-32C01CH1330 | 48 mm Installation Housing | 0 to 1000 mm/s Speed Measurement | High Accuracy | by SICK
The MAX48N-32C01CH1330 linear encoder is designed for precise position and speed measurement in industrial automation. With a measuring range of up to 1330 mm and a robust stainless steel housing, it’s perfect for hydraulic cylinder position feedback and machine tool positioning. This encoder features high accuracy with a setpoint tolerance of ±1 mm, making it ideal for applications requiring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX48N-32C01CH1330 | 48 mm Installation Housing | 0 to 1000 mm/s Speed Measurement | High Accuracy | by SICK
Brand: SICK
SKU: 1107252
Alternatively Known As: Linear position sensor, Linear displacement encoder, CANopen linear encoder, Hydraulic cylinder position sensor
Technical Specifications
- Installation housing: 48 mm for IN cylinder mounting
- Measuring range: 0 mm to 1330 mm
- Speed measurement: 0 to 1000 mm/s
- Null zone: 30 mm, Damping zone: 63 mm
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms internal
- Communication: CANopen CiA DS-301, DS-406
- Bus protocol baud rate: 250 kbit/s
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Operating pressure: 400 bar, Overload pressure: 480 bar
- Operating temperature: Fluid -30 °C to +95 °C, Electronics -40 °C to +105 °C
- Enclosure rating: IP67 housing, IP69K M12 connector
- Material: Stainless steel housing (AISI 303), Pressure pipe (AISI 316L), O-ring NBR 70
- Dimensions (H x L x W): 48mm x 1330mm x 48mm
- Weight: 1.2 kg
Key Features
- 48 mm installation housing for IN cylinder mounting
- Measuring range up to 1330 mm with position and speed output
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- CANopen communication interface with configurable transmission rate
- Operating temperature range from -30 °C to +95 °C for fluid temperature
- High operating pressure up to 400 bar with overload pressure up to 480 bar
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection
- Fast switch-on time < 250 ms and low power consumption ≤ 0.75 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hydraulic and electrical systems to ensure proper mounting, connection, and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery requiring robust linear measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48N-32C01CH1330 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
