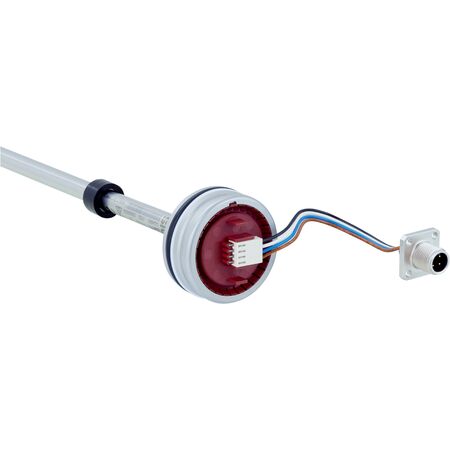

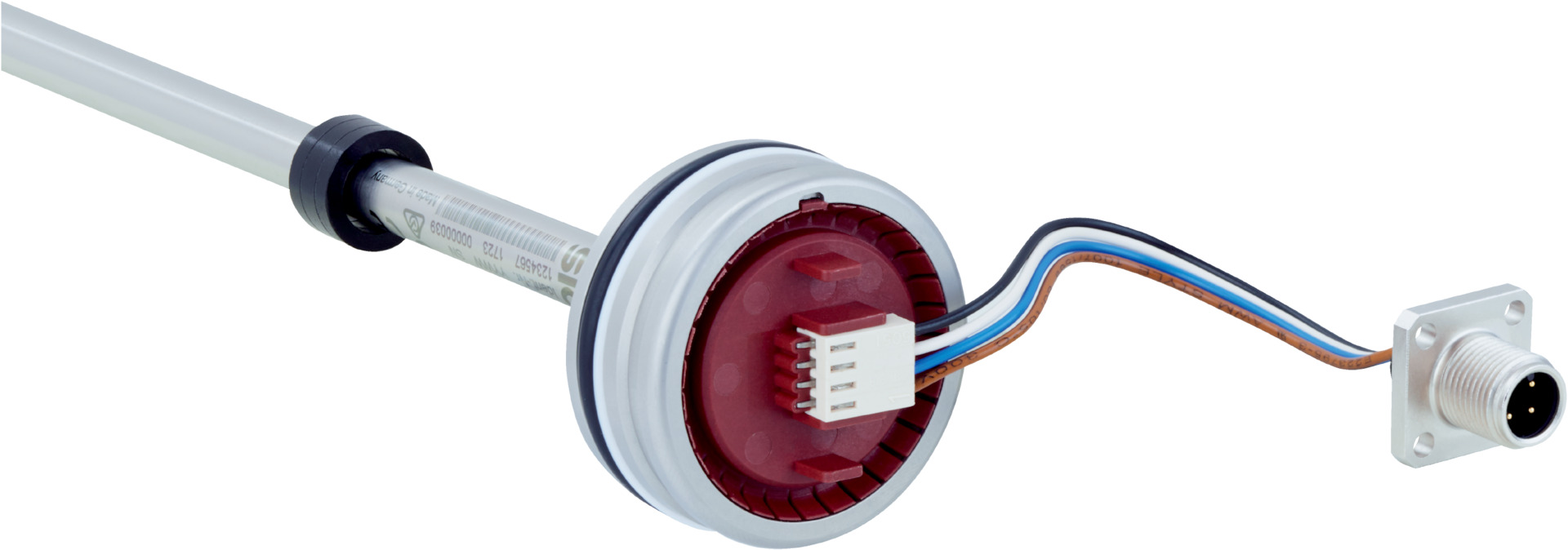

Linear Encoder MAX48N-32C0DCB1550 | 48 mm Housing | 1550 mm Measuring Range | High Accuracy | by SICK
The MAX48N-32C0DCB1550 linear encoder is designed for precise position and speed measurement in industrial automation. With a robust 48 mm housing and a measuring range of up to 1550 mm, it offers high accuracy with a setpoint tolerance of ±1 mm. Ideal for hydraulic cylinder position feedback and machine tool positioning, this encoder ensures reliable performance even in harsh environments, thanks to its IP67 rated housing and stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Encoder MAX48N-32C0DCB1550 | 48 mm Housing | 1550 mm Measuring Range | High Accuracy | by SICK
Brand: SICK
SKU: 1138737
Alternatively Known As: Linear position sensor, hydraulic cylinder encoder, CANopen linear transducer, industrial linear position encoder
Technical Specifications
- Installation housing diameter: 48 mm
- Measuring range: 0 mm to 1550 mm
- Speed measurement range: 0 to 1000 mm/s
- Null zone: 30 mm, Damping zone: 63 mm
- Supply voltage: 24 V DC (8 to 32 V DC)
- Switch-on time: < 250 ms
- Measuring frequency: 1 ms internal
- Accuracy: Setpoint tolerance ≤ ±1 mm, Hysteresis ±0.1 mm, Repeatability ±0.2 mm
- Linearity: ±0.25 mm (50 to 500 mm range), ±0.04% F.S. (500 to 2500 mm range)
- Operating pressure: 400 bar nominal, 480 bar overload
- Operating temperature: -30 °C to +95 °C
- Humidity: 90% max, no condensation
- Connection: Male M12 type S, 5-pin connector
- Communication: CANopen CiA DS-301 and DS-406
- Protection rating: IP67 housing, IP69K connector
- Material: Stainless steel housing (AISI 303), pressure pipe (AISI 316L), NBR O-ring
- Dimensions (H x L x W): 48mm x 1550mm x 48mm
- Weight: 1.5 kg
Key Features
- 48 mm installation housing suitable for IN cylinder mounting
- Measuring range up to 1550 mm with position and speed measurement
- High accuracy with setpoint tolerance ≤ ±1 mm and repeatability ±0.2 mm
- Robust stainless steel housing (AISI 303) and pressure pipe (AISI 316L)
- Operating pressure up to 400 bar with overload pressure up to 480 bar
- CANopen communication interface with configurable transmission rate
- Wide operating temperature range from -30 °C to +95 °C
- IP67 rated housing and IP69K rated M12 connector for harsh environments
- Overvoltage and reverse polarity protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor mounting and CANopen network configuration to ensure optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Hydraulic cylinder position feedback
- Machine tool positioning
- Mobile machinery and heavy equipment monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption (≤ 0.75 W) supports energy-efficient operation
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MAX48N-32C0DCB1550 linear encoder is available for immediate purchase, ideal for industrial automation and hydraulic cylinder position sensing applications.
