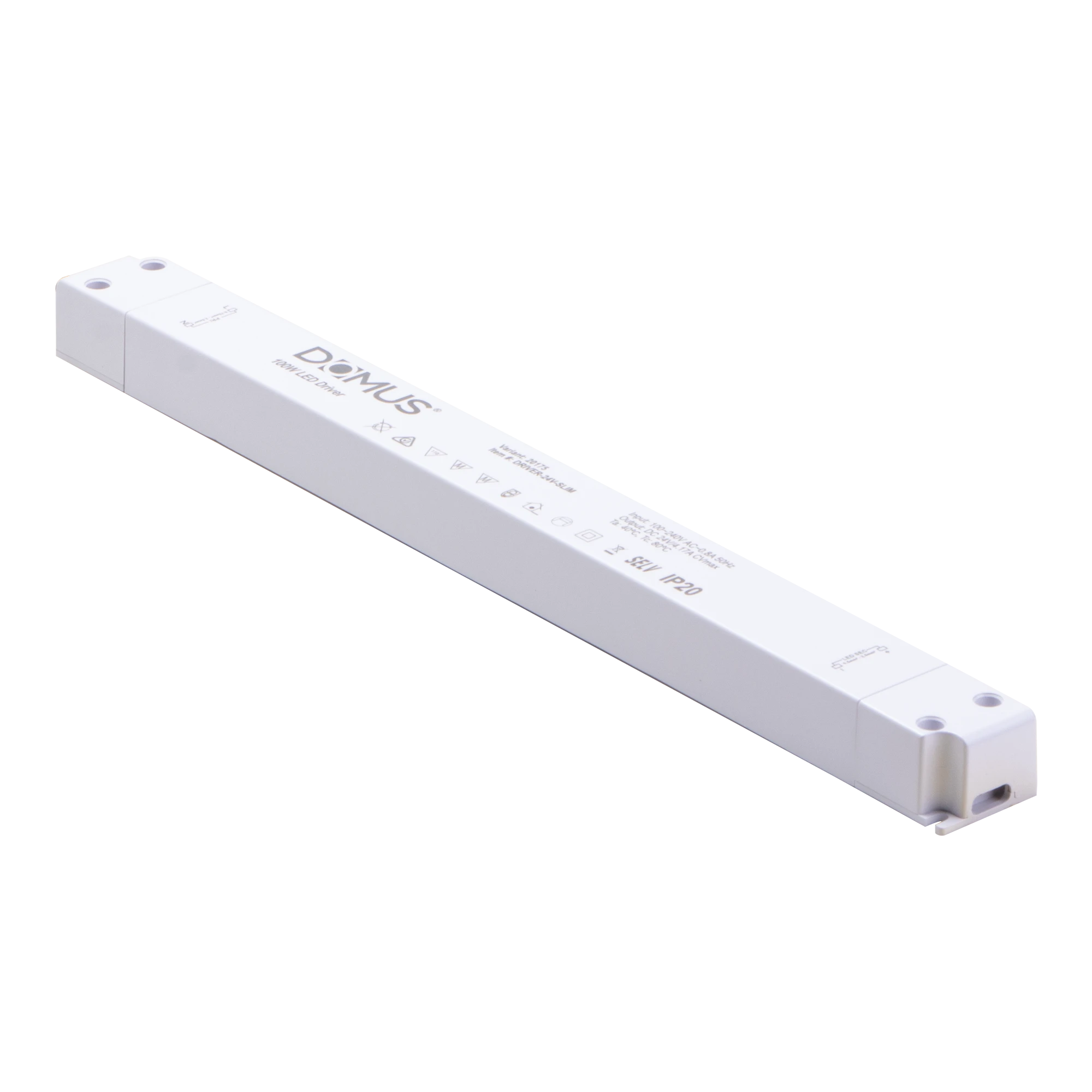

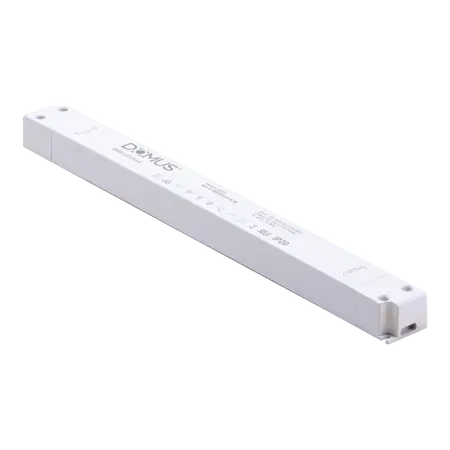

Linear LED Driver 100W 12V DC IP20 5-in-1 Dimmable Domus
Domus 100W 12V DC constant voltage LED driver, linear slim body, IP20, dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Slim Linear LED Driver, Constant Voltage LED Power Supply, 12V LED Strip Driver, 5-in-1 Dimmable LED Driver
Technical Specifications
- Variant: 23204
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Rated Power: 100W
- Output Current: 8.33A
- Dimming Methods: Triac, 0-10V, 1-10V, 10V PWM and potentiometer
- IP Rating: IP20
- Power Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring supported
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Application Environment: Indoor use only
- Dimensions (H x L x W): 22mm x 330mm x 30mm
- Weight: 0.55 kg
Key Features
- 5-in-1 dimming capability for flexible lighting control
- Slim linear housing suitable for space-restricted installations
- Designed for 12V constant-voltage LED strip lighting, LED profiles and compatible fittings
- Fully Triac dimmable when used with a suitable dimmer
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Supplied with 1m flex and plug
- Suitable for parallel wiring
- IP20-rated enclosure for indoor applications
Professional Installation Requirements
- Mains electrical connection and installation should be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements. Use only with compatible dimmers and 12V constant-voltage LED loads.
Applications
- 12V LED strip lighting
- LED linear profile systems
- Indoor architectural and accent lighting
- Cabinet, joinery and display lighting
- Indoor 12V constant-voltage LED fittings
Standards & Compliance
- Relevant LED controlgear safety standard: AS/NZS 61347.2.13
- General electrical safety requirements may also apply under AS/NZS 3820 and the Electrical Equipment Safety System
Environmental Benefits
- Supports efficient LED lighting systems with lower energy consumption than conventional light sources
- Constant-voltage regulation helps provide stable operation and may extend connected LED product life
- Long service life and replaceable driver design can reduce premature lighting-system replacement and waste
- The electronic driver housing and components can be separated for responsible electrical-equipment recycling at end of life
Warranty Information
Domus specifies a 5-year replacement warranty for the DRIVER-SLIM-DIM series. Warranty eligibility is subject to proof of purchase, licensed-electrician installation, correct installation, suitable operating conditions and the manufacturer's current warranty terms.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
