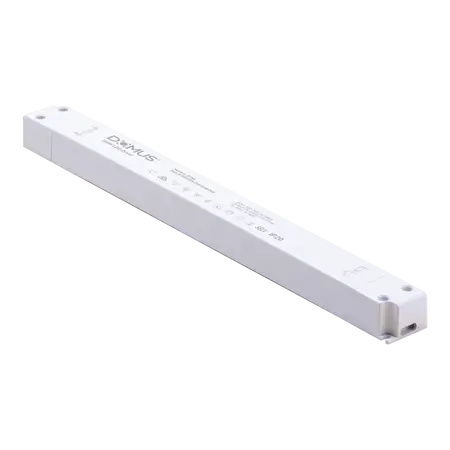

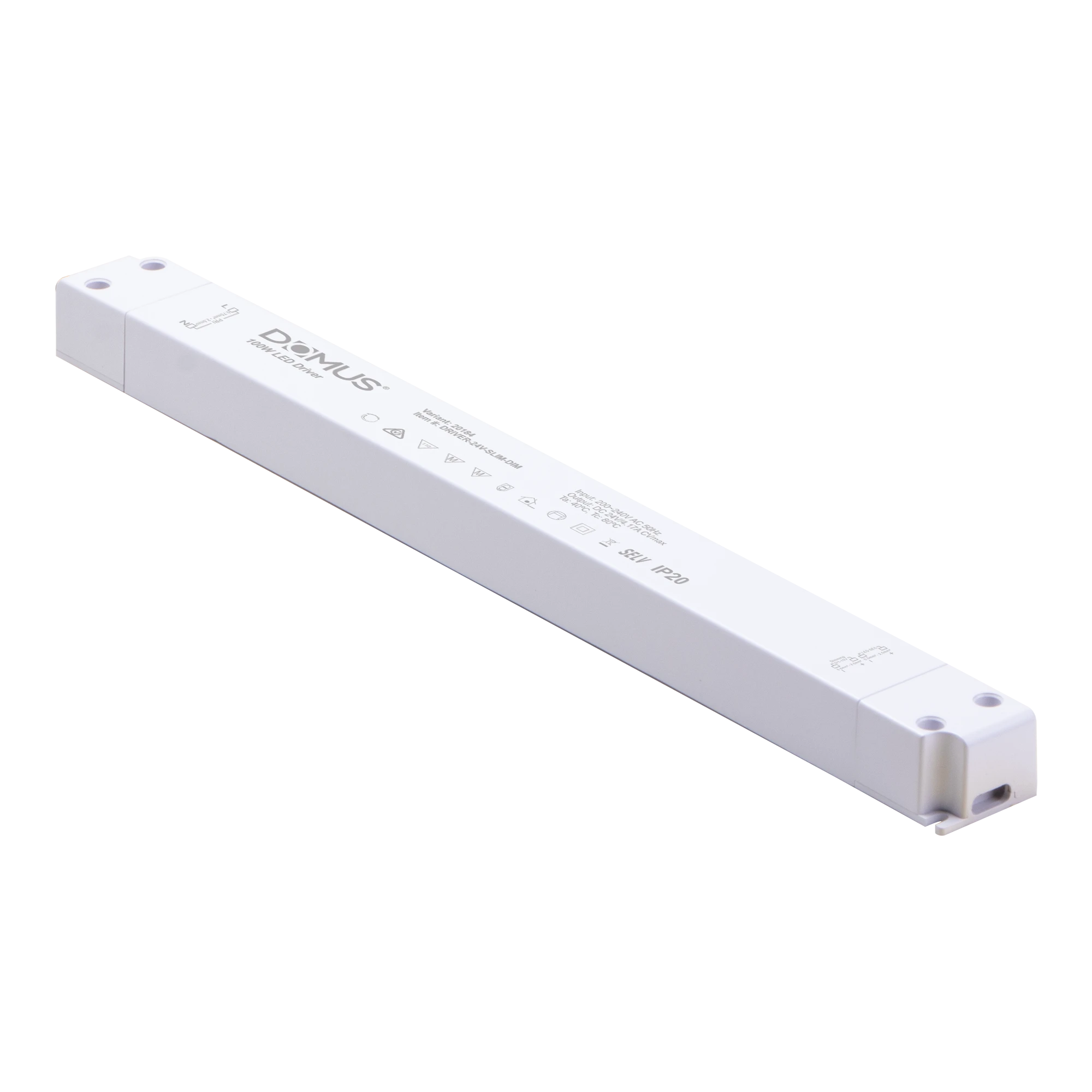

Linear LED Driver 100W 24V DC Triac/0-10V Dimmable Domus
Domus 100W 24V DC constant voltage LED driver, linear slim body, triac/0-10V dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V Constant Voltage LED Driver, Slimline LED Strip Driver, 5-in-1 Dimmable LED Driver, Item 20184
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Rated Power: 100W
- Output Current: 4.17A
- Dimming Methods: Triac, 0-10V, 1-10V, 10V PWM and potentiometer
- IP Rating: IP20
- Voltage Tolerance: ±0.5V
- Voltage Regulation: ±0.5%
- Power Factor: >0.96
- Efficiency: Up to 79%
- Working Temperature: -40°C to +60°C
- Working Humidity: 20–90% RH
- Connection: Supplied with 1 m flex and plug
- Wiring: Parallel wiring
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Dimensions (H x L x W): 22mm x 330mm x 30mm
- Weight: 0.45 kg
Key Features
- 24V DC constant-voltage output for compatible LED strip and fittings
- 100W capacity with 4.17A output current
- Slim linear housing for space-constrained installations
- Five-in-one dimming compatibility
- Fully Triac dimmable when used with a suitable dimmer
- Indoor-use IP20 construction
- Built-in electrical and thermal protection functions
- Supplied with 1 m flex and plug
- Five-year replacement warranty
Professional Installation Requirements
- The 240V AC input and any fixed wiring should be connected by a licensed electrician in accordance with applicable Australian electrical installation requirements. Confirm compatibility between the selected dimmer, driver and 24V LED load before installation.
Applications
- 24V LED strip lighting
- LED profiles and linear lighting systems
- Indoor residential lighting installations
- Commercial display and feature lighting
- Parallel-connected 24V constant-voltage LED fittings
Standards & Compliance
- Applicable controlgear safety standard: AS 61347.2.13:2018 for electronic controlgear associated with LED modules, read in conjunction with AS/NZS 61347.1:2016. Product-specific certification or RCM documentation was not stated on the available Domus product page. ([australiastandards.com](https://www.australiastandards.com/product/AS-61347-2-13-2018/?utm_source=openai))
Environmental Benefits
- Power factor above 0.96 supports efficient use of input power
- Constant-voltage operation enables efficient matching with 24V LED systems
- Built-in overload, over-temperature and over-voltage protection may help extend service life and reduce replacement waste
- Long-life LED compatibility can reduce energy consumption compared with conventional lighting systems
Warranty Information
Backed by a five-year replacement warranty. Warranty claims are subject to Domus Lighting’s warranty terms and conditions. ([domuslighting.com.au](https://www.domuslighting.com.au/product/driver-slim-dim/?utm_source=openai))
Available Now
Available through leading Australian electrical wholesalers, lighting retailers and authorised online distributors. ([domuslighting.com.au](https://www.domuslighting.com.au/where-to-buy/?utm_source=openai))
