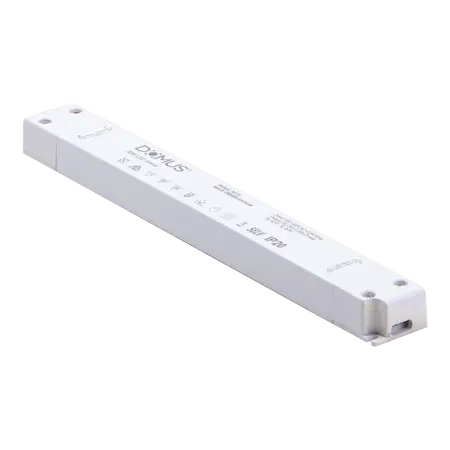

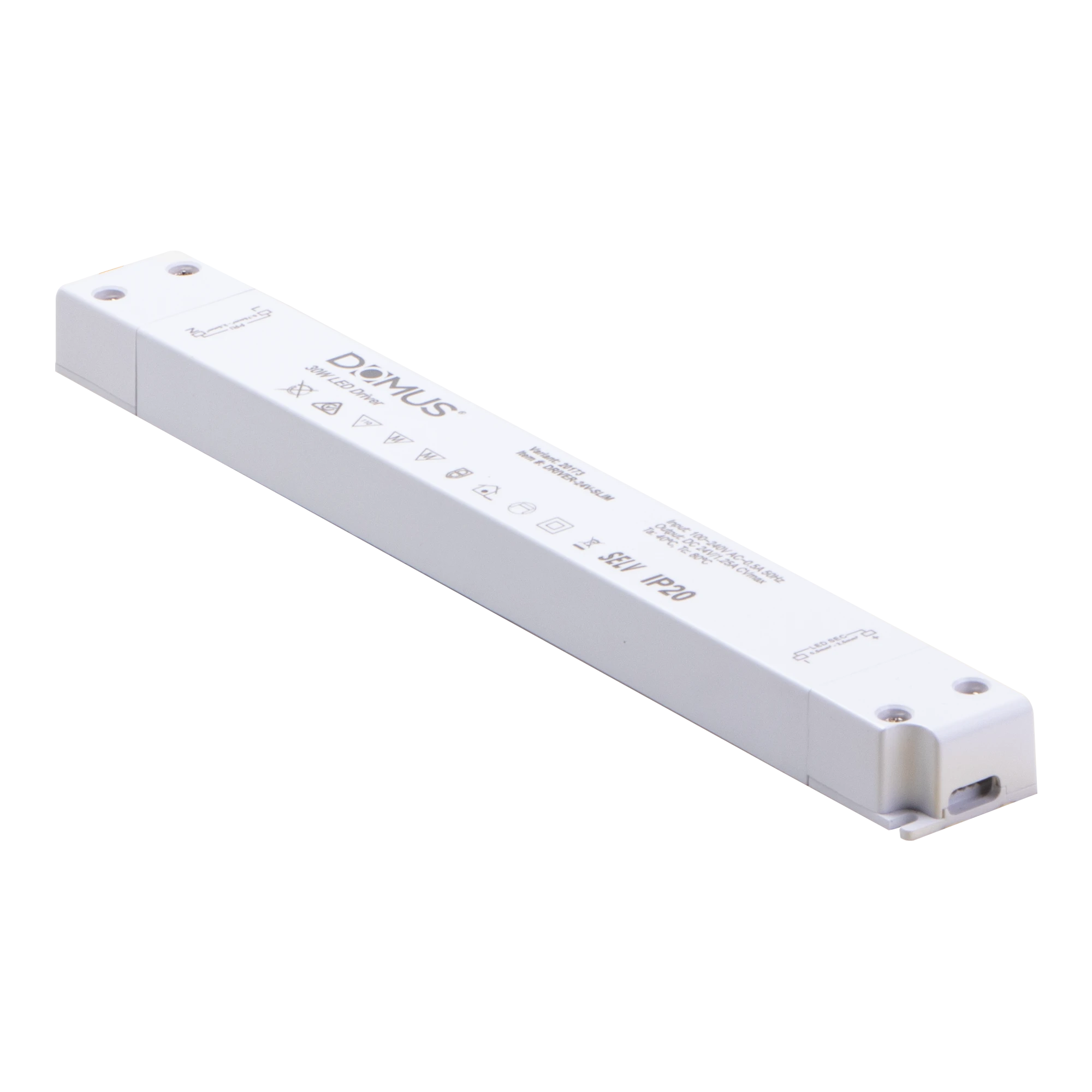

Linear LED Driver 30W 12V DC IP20 5-in-1 Dimmable Domus
Domus 30W 12V DC constant voltage LED driver, linear slim body, IP20, dimmable, suits 12V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus 12V Slim Dimmable LED Driver, 30W Constant Voltage LED Driver, 5-in-1 LED Strip Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 12V DC constant voltage
- Rated Power: 30W
- Output Current: 2.5A
- Dimming: Triac, 0-10V, 1-10V, 10V PWM and potentiometer
- Ingress Protection: IP20
- Voltage Tolerance: ±0.5V
- Voltage Regulation: ±0.5%
- Power Factor: PF >0.96
- Efficiency: Up to 79%
- Working Temperature: -40°C to +60°C
- Working Humidity: 20–90% RH
- Connection: Supplied with 1 m flex and plug
- Protection: Secondary-side short-circuit, thermal overload, over-temperature and over-voltage protection
- Variant ID: 23202
- Dimensions (H x L x W): 18.5mm x 260mm x 30mm
- Weight: 0.35 kg
Key Features
- Slim linear housing for space-constrained indoor installations
- 12V DC constant-voltage output for compatible LED strip lighting and LED profiles
- Five dimming methods in one driver
- Fully Triac dimmable when paired with a suitable dimmer
- Parallel wiring capability
- Flicker-free operation when installed less than 2 m from the light source
- Indoor-use-only IP20 construction
- Built-in short-circuit, thermal, over-temperature and over-voltage protection
Professional Installation Requirements
- Installation and connection to the 240V AC supply should be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements. Use only with compatible dimmers and 12V constant-voltage LED loads.
Applications
- 12V LED strip lighting
- LED profile systems
- Indoor architectural and accent lighting
- Residential lighting installations
- Commercial indoor lighting installations
Standards & Compliance
- AS/NZS 61347.1:2016, Lamp controlgear — General and safety requirements
- AS/NZS IEC 61347.2.13:2013, Particular requirements for electronic controlgear for LED modules
- AS/NZS 3000, Electrical installations — Wiring Rules, for installation of the 240V supply
Environmental Benefits
- Supports efficient LED lighting systems with up to 79% driver efficiency
- Enables low-voltage 12V DC LED installations for potentially reduced energy consumption compared with less efficient lighting technologies
- Built-in protective functions can help extend service life and reduce premature electrical-product replacement
- Slim construction reduces material volume and installation space compared with bulkier driver housings
Warranty Information
Five-year replacement warranty as stated by Domus for the DRIVER-SLIM-DIM series. Domus warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation requirements; residential and commercial warranty terms may vary under the current Domus warranty statement.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
