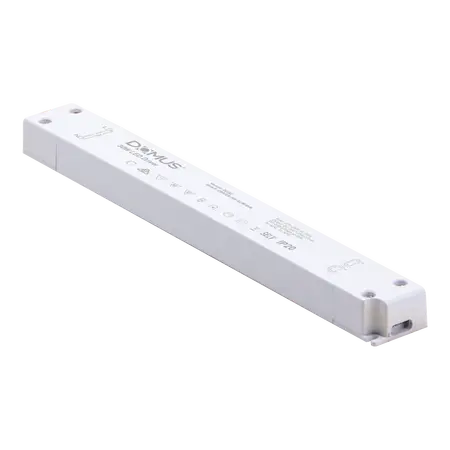

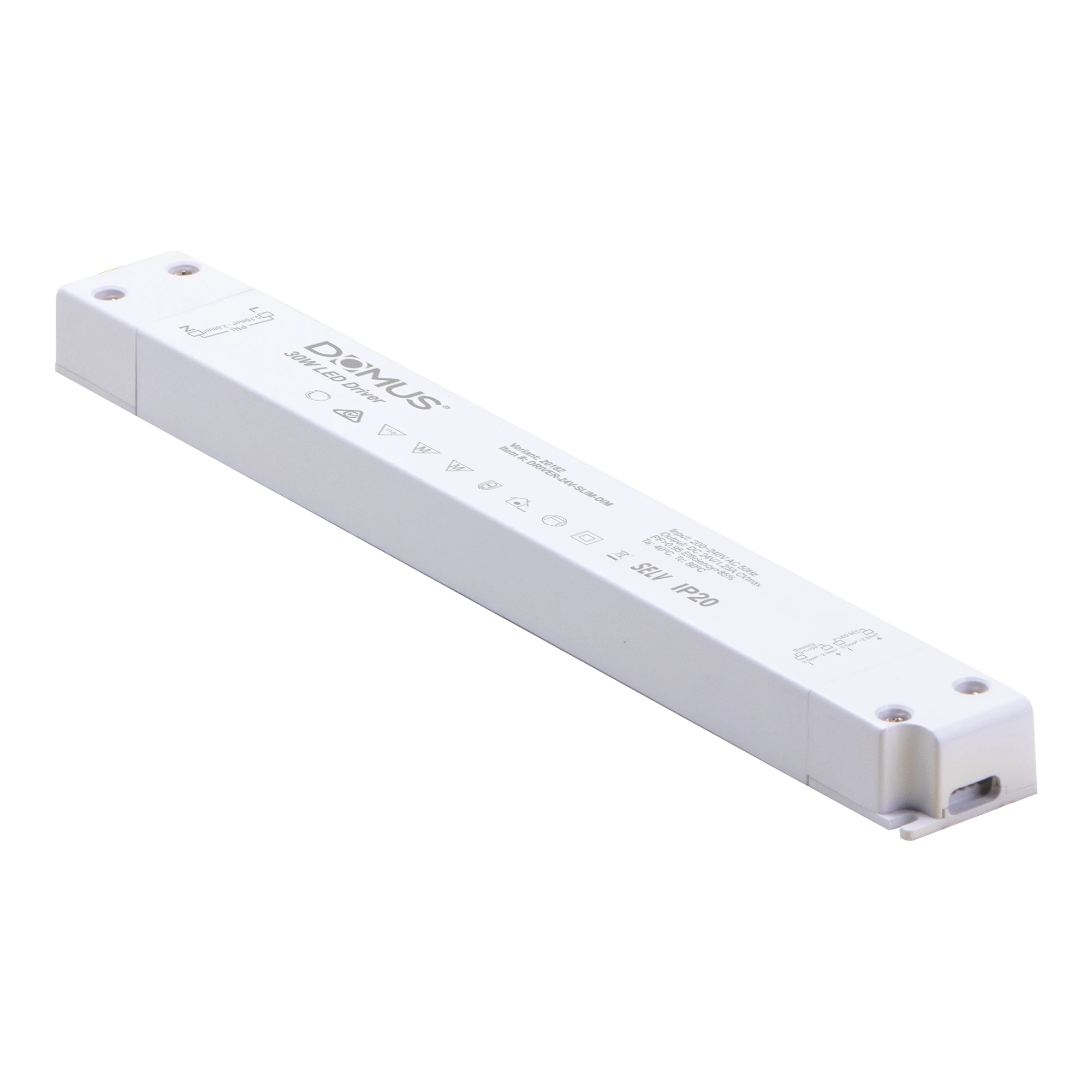

Linear LED Driver 30W 24V DC Triac/0-10V Dimmable Domus
Domus 30W 24V DC constant voltage LED driver, linear slim body, triac/0-10V dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Strip Driver, Constant Voltage LED Driver, Slimline LED Transformer, 5-in-1 Dimmable LED Driver
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC constant voltage
- Rated Power: 30W
- Output Current: 1.25A
- Dimming Methods: Triac, 0-10V, 1-10V, 10V PWM and potentiometer
- IP Rating: IP20
- Power Factor: PF >0.96
- Voltage Tolerance: ±0.5V
- Voltage Regulation: ±0.5%
- Efficiency: Up to 79%
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 20–90% RH
- Power Connection: Supplied with 1m flex and plug
- Wiring: Parallel wiring
- Protection: Secondary-side short-circuit, thermal overload, over-temperature and over-voltage protection
- Use: Indoor use only
- Dimensions (H x L x W): 18.5mm x 260mm x 30mm
- Weight: 0.35 kg
Key Features
- Slim linear housing for space-constrained installations
- Provides regulated 24V DC constant-voltage output
- Compatible with 24V LED strip lighting and LED profiles
- Supports five dimming control methods
- Fully Triac dimmable when paired with a suitable dimmer
- Built-in electrical and thermal protection
- Supplied with 1m flex and plug
Professional Installation Requirements
- Installation and mains connection must be carried out by a licensed electrician in accordance with applicable Australian electrical installation requirements. Confirm dimmer compatibility before commissioning.
Applications
- 24V LED strip lighting
- LED profiles and linear LED fittings
- Residential decorative lighting
- Commercial interior lighting
- Cove, cabinet and joinery lighting
Standards & Compliance
- AS/NZS 61347.1:2016 – general safety requirements for lamp controlgear applicable to LED drivers
- AS 61347.2.13:2018 – particular requirements for electronic controlgear associated with LED modules; product-specific conformity should be confirmed from the manufacturer’s compliance documentation
Environmental Benefits
- Up to 79% efficiency helps reduce energy losses during operation
- Built-in thermal, overload and over-voltage protection can help extend product service life and reduce replacement waste
- Constant-voltage regulation supports efficient operation of compatible 24V LED lighting systems
Warranty Information
Backed by a 5-year replacement warranty. Warranty eligibility is subject to Domus Lighting conditions, including installation by a licensed electrician and compliance with installation instructions. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2025/03/DRIVER-24V-SLIM-DIM-Data-Sheets.pdf))
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
