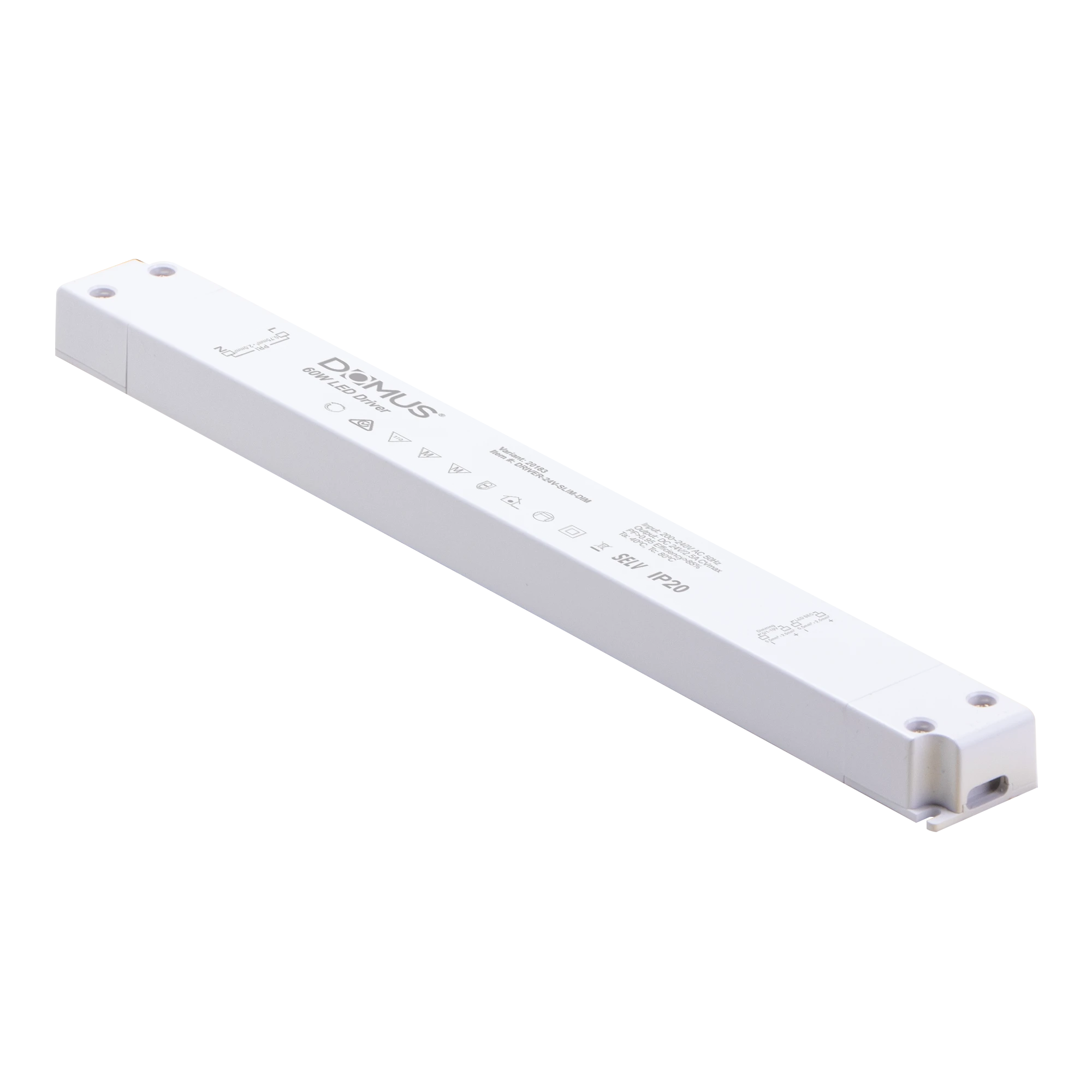

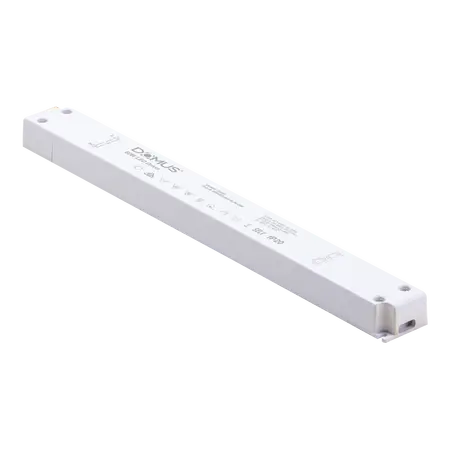

Linear LED Driver 60W 24V DC Triac/0-10V Dimmable Domus
Domus 60W 24V DC constant voltage LED driver, linear slim body, triac/0-10V dimmable, suits 24V constant voltage LED strip and fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24V LED Driver, Constant Voltage LED Driver, Slim Linear LED Driver, Triac Dimmable LED Power Supply
Technical Specifications
- Input Voltage: 240V AC
- Output Voltage: 24V DC
- Rated Power: 60W
- Output Current: 2.5A
- Dimming Methods: Triac, 0-10V, 1-10V, 10V PWM and potentiometer
- IP Rating: IP20
- Power Factor: Greater than 0.96
- Voltage Tolerance: ±0.5V
- Voltage Regulation: ±0.5%
- Working Temperature: -40°C to +60°C
- Working Humidity: 20–90% RH
- Efficiency: Up to 79%
- Protection: Secondary-side short circuit, thermal overload, over-temperature and over-voltage protection
- Wiring: Parallel wiring
- Lead: Supplied with 1 m flex and plug
- Installation Environment: Indoor use only
- Variant ID: 20183
- Dimensions (H x L x W): 18.5mm x 300mm x 30mm
- Weight: 0.35 kg
Key Features
- Slim linear housing suitable for space-restricted installations
- Constant-voltage 24V DC output for compatible LED strip lighting and LED profiles
- Supports multiple dimming control methods, including Triac and 0-10V
- Fully Triac dimmable when used with a suitable dimmer
- High power factor greater than 0.96
- Built-in short-circuit, thermal overload, over-temperature and over-voltage protection
- Suitable for parallel wiring
- Supplied with a 1 m flex and plug
Professional Installation Requirements
- Mains-voltage connection should be completed by a licensed electrician in accordance with AS/NZS 3000. Install indoors only and ensure the connected LED load is compatible with a 24V constant-voltage supply and the selected dimming method.
Applications
- 24V LED strip lighting
- LED profile lighting
- Under-cabinet and joinery lighting
- Display and showcase lighting
- Commercial interior feature lighting
- Residential interior lighting systems
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations and selection and installation of electrical equipment
- AS/NZS 61347.1 and IEC 61347-2.13 are relevant controlgear safety standards for LED equipment; product-specific conformity should be confirmed from the supplier declaration
Environmental Benefits
- Supports efficient LED lighting systems with power factor greater than 0.96
- Up to 79% efficiency helps reduce energy losses within the driver
- Enables dimming and lighting control, which can reduce energy consumption when full output is not required
- Slim construction reduces installation space and material use compared with larger driver housings
Warranty Information
Backed by a 5-year replacement warranty according to the product datasheet. Warranty claims are subject to Domus conditions, including installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
