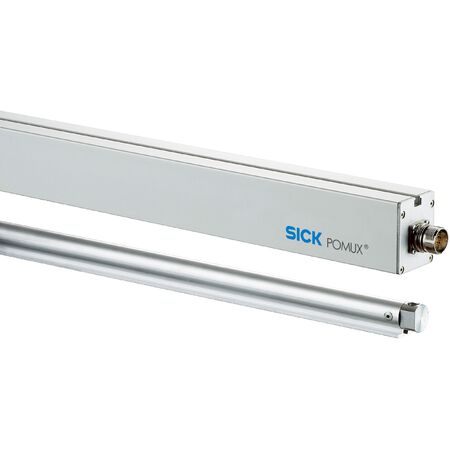

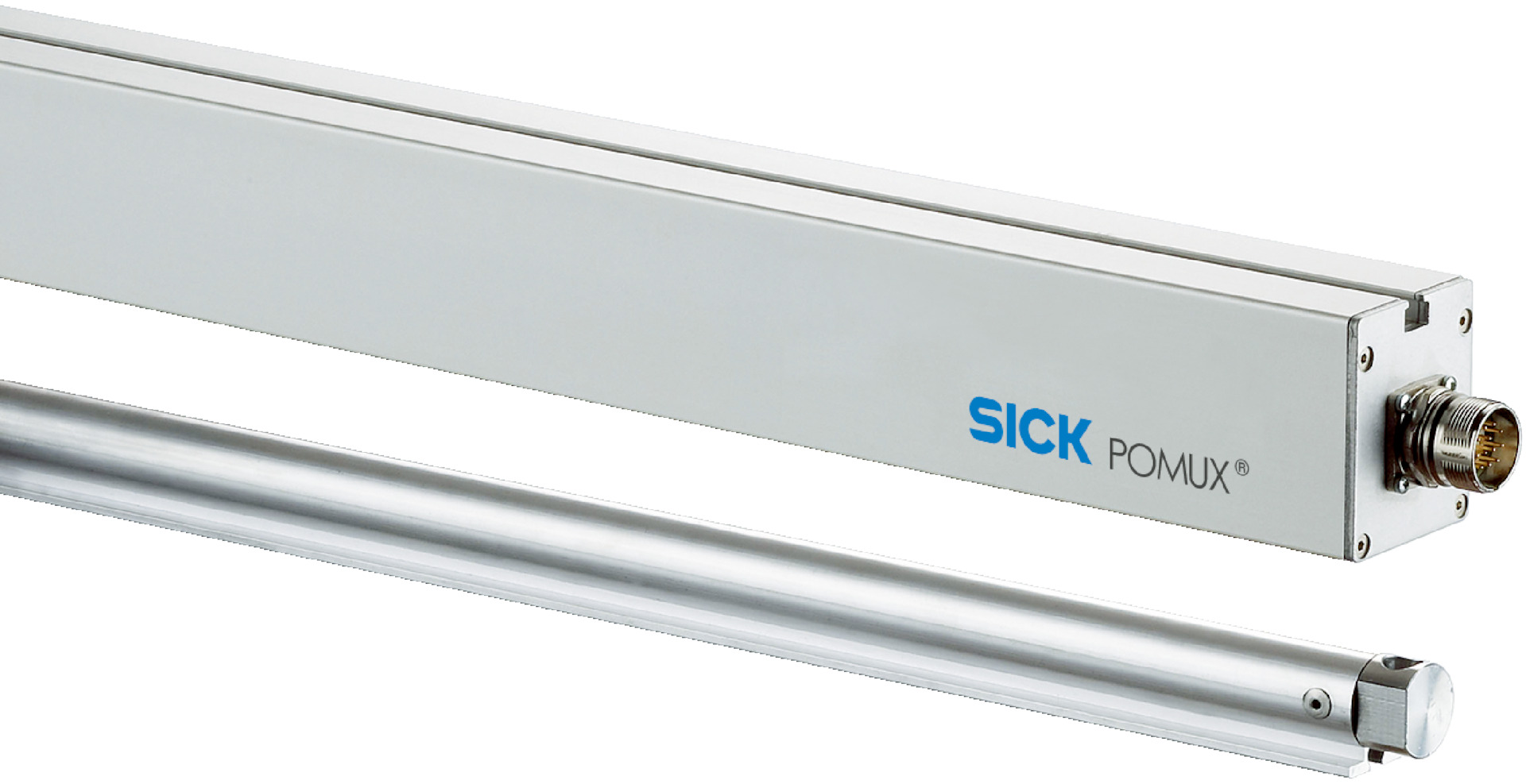

Linear Position Sensor KHK53-AXS00038 | 38m Measuring Range | 0.1mm Resolution | IP66 Enclosure | by SICK
The Linear Position Sensor KHK53-AXS00038 offers a high measuring range of up to 38 meters with exceptional resolution of 0.1 mm and repeatability of 0.3 mm. Designed for industrial automation, robotics, and quality control, this robust sensor features an IP66 rated enclosure, ensuring reliable performance in harsh environments. With fast traversing speeds of 6.6 m/s and reliable communication interfaces, it’s perfect for precise position measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linear Position Sensor KHK53-AXS00038 | 38m Measuring Range | 0.1mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030049
Alternatively Known As: Linear Position Sensor, Position Measuring System, Linear Encoder, Industrial Position Sensor
Technical Specifications
- Measuring range: 0 m to 38 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 3 m length
- Enclosure rating: IP66
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Read head material: AlMgSiPbF28
- Dimensions (H x L x W): 50mm x 3000mm x 50mm
- Weight: 2.4 kg
Key Features
- High measuring range up to 38 meters
- Excellent resolution of 0.1 mm and repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable communication via SSI and RS-422 interfaces
- Long mean time to dangerous failure (MTTFD) of 45 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical wiring standards to ensure safety and optimal performance.
Applications
- Industrial automation for precise position measurement
- Robotics and machinery requiring accurate linear position feedback
- Quality control and inspection systems
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 250 mA supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KHK53-AXS00038 position measuring system is available for immediate purchase, ideal for industrial automation and precision measurement applications.
