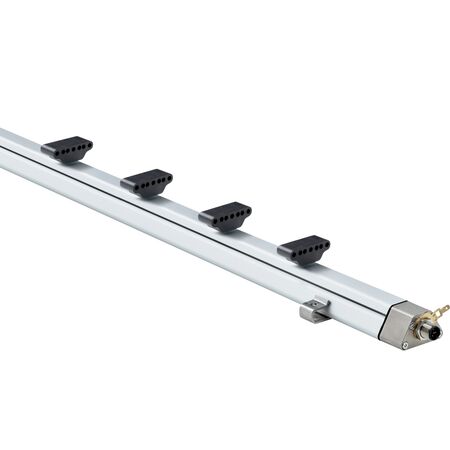

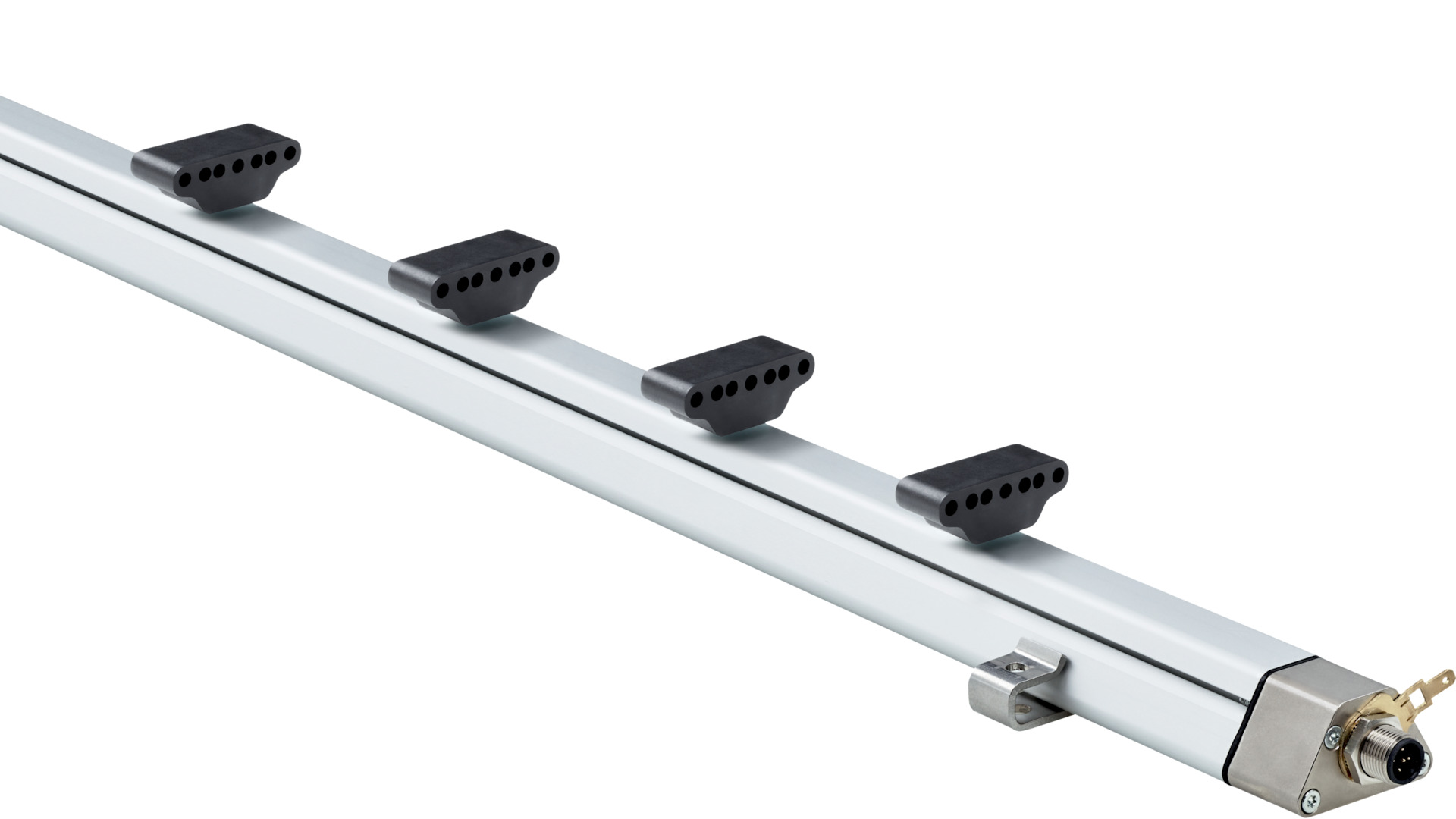

Linear Position Sensor DAXLON-1200B44F0004100 | 1200 mm Measuring Range | IP65/IP67 Rated | High Linearity | by SICK
The Linear Position Sensor DAXLON-1200B44F0004100 offers a measuring range of up to 1200 mm with high linearity of ≤ 0.03% F.S. and a resolution of 10 µm. Designed for industrial automation, this robust sensor is perfect for precise linear position and speed measurement in harsh environments, featuring an IP65/IP67 rated enclosure and a wide operating temperature range from -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 1200 mm
- Linearity: ≤ 0.03% F.S. (minimum 90 µm)
- Repeatability: ± 20 µm
- Resolution: 10 µm
- Cycle time: 1 ms
- Communication interface: CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 500 kbit/s
- Supply voltage: 24 V DC (± 20%)
- Reverse polarity protection: Up to -30 V DC
- Residual ripple: ≤ 0.28 V pp
- Dielectric strength: 500 V DC against housing
- Over voltage protection: ≤ 36 V DC
- Connection type: Male connector, M12, 5-pin, A-coded
- Mechanical design: DAX Low Profile
- Housing material: Anodised aluminum, zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- Enclosure rating: IP65 / IP67
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +85 °C
- Permissible relative humidity: 90% (no condensation)
- Shock resistance: 100 g, 6 ms (IEC 60068-2-27)
- Vibration resistance: 8 g / 10–2000 Hz (IEC 60068-2-6)
- Dimensions (H x L x W): 20mm x 1300mm x 40mm
- Weight: 1.5 kg
Key Features
- High linearity with ≤ 0.03% F.S. accuracy
- Repeatability of ± 20 µm
- Measuring range up to 1200 mm
- Resolution of 10 µm with 1 ms cycle time
- Robust DAX Low Profile mechanical design
- IP65 / IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- CANopen communication interface with 500 kbit/s data rate
- Over voltage and reverse polarity protection
