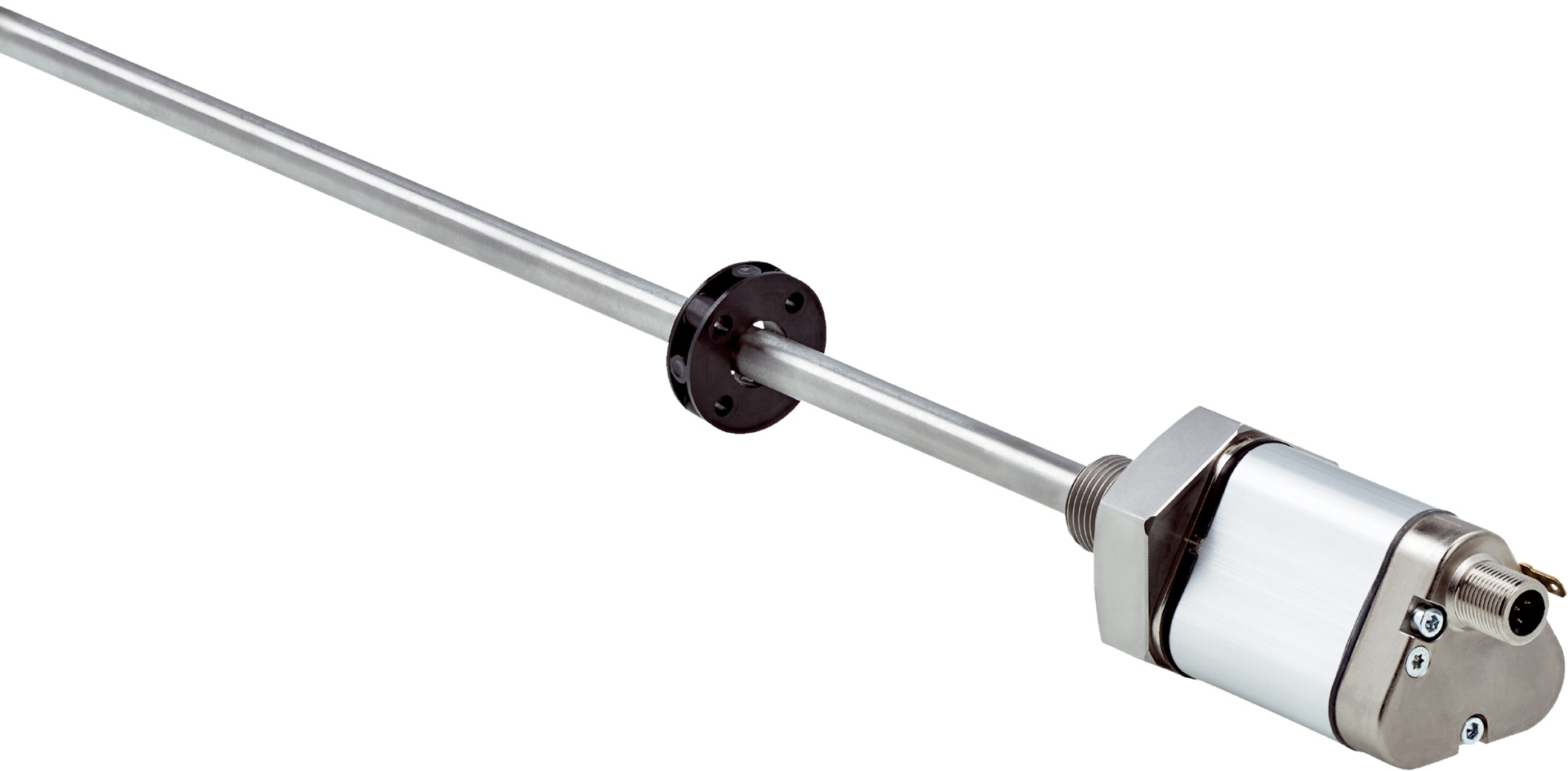

Linear Position Sensor DAXTAN-0600RA1F0J00 | 0 to 600 mm Range | IP65/IP67 Protection | by SICK
The Linear Position Sensor DAXTAN-0600RA1F0J00 offers high accuracy with a measuring range of 0 to 600 mm and linearity of ≤ 0.02% F.S. Ideal for industrial automation and hydraulic cylinder position sensing, this robust sensor features an analog output signal of 4 mA to 20 mA and operates in extreme temperatures from -40 °C to +85 °C. With IP65/IP67 protection, it’s built to withstand harsh environments, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 to 600 mm
- Linearity: ≤ 0.02% F.S. (minimum 60 µm)
- Repeatability: ≤ ±20 µm
- Output signal: 4 mA to 20 mA analog current
- Supply voltage: 24 V DC (±20%)
- Current consumption: 50 to 100 mA
- Connection: Male M12, 5-pin connector, A-coded
- Protection rating: IP65 / IP67
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 15 g, 10 to 2000 Hz
- Dielectric strength: 500 V DC
- Overvoltage protection: up to 36 V DC
- Material: Stainless steel pressure pipe (AISI 316L), aluminum anodised housing
- Dimensions (H x L x W): 40mm x 150mm x 40mm
- Weight: 0.5 kg
Key Features
- High accuracy with linearity ≤ 0.02% F.S. and repeatability ≤ ±20 µm
- Measuring range of 0 to 600 mm with 30 mm null zone and 60 mm damping zone
- Analog current output signal from 4 mA to 20 mA
- Robust mechanical design with stainless steel and aluminum housing
- Operating temperature range from -40 °C to +85 °C
- Protection rating IP65 / IP67 suitable for harsh environments
- High resistance to shocks (100 g) and vibration (15 g)
- Supply voltage 24 V DC with reverse polarity and overvoltage protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Hydraulic cylinder position sensing
- Machine tool positioning
- Process control requiring linear position feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

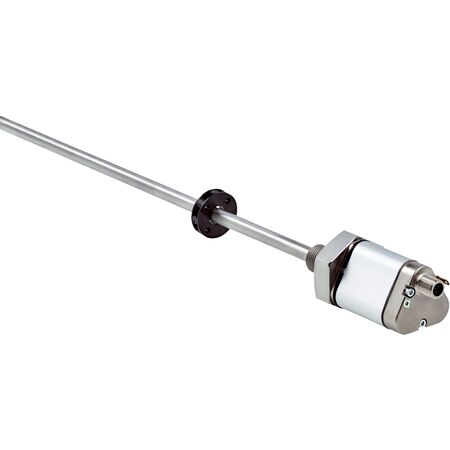

The SICK DAXTAN-0600RA1F0J00D00 Analog Position Sensor is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
