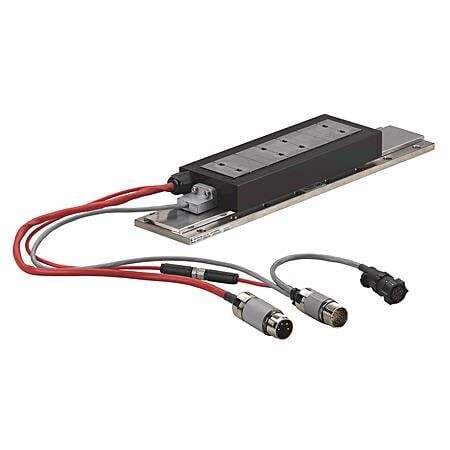

Product Name/Title: Allen-Bradley LDCC050300DHT20 Linear Servo Motor
Brand: Allen-Bradley
SKU: LDCC050300DHT20
Alternatively Known As: Linear Servo Motor, LDCC050300DHT20, LDL Series Linear Motor
Technical Specifications
- Frame Size: 50 mm
- Coil Length: 300 mm (12.45 in.)
- Winding Type: D winding (high speed)
- Sensor Type: Hall effect (trapezoidal)
- Cable Length: 1000 mm
- Connection: Flying leads
- Dimensions (H x L x W): 50mm x 300mm x 50mm
- Weight: 3.5 kg
Key Features
- Standard coil with D winding for high speed
- Hall effect sensor with trapezoidal output
- Flying leads with 1000 mm cable length
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and safety.
Applications
- Industrial automation and robotics
- Precision motion control systems
- Manufacturing equipment requiring high-speed linear servo motors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency motor design reduces energy consumption in industrial applications
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley LDCC050300DHT20 Linear Servo Motor is available now for immediate purchase, ideal for industrial automation and precision motion control applications.
