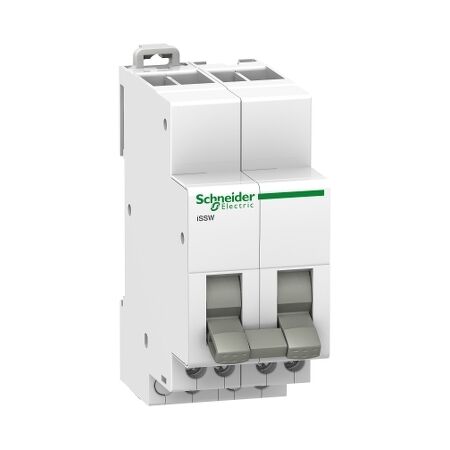

Linear Switch 2 C/O | 20A 250V AC | 3 Positions | IP20 by Clipsal
Linear switch with 2 changeover positions and 20A, 250V AC rating—ideal for small commercial and residential circuit control. Built for durability with IP20 protection and toggle control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Linear switch, 2 C/O, 20A, 250 V AC, 3 positions
Brand: Clipsal
SKU: A9E18074
Alternatively Known As: Acti9 Changeover Switch, Clipsal Toggle Switch, 2 C/O Switch
Technical Specifications
- Control type: Toggle 3 positions
- Electrical durability: AC-22: 30000 cycles
- Connections: Staggered tunnel terminal for 2 cables (0.5-2.5 mm²)
- Wire stripping length: 9 mm
- Relative humidity: 95% at 55 °C
- Ambient air temperature for operation: -20 to 50 °C
- Ambient air temperature for storage: -40 to 70 °C
- Pollution degree: 3
- Dimensions (H x L x W): 82mm x 75mm x 36mm
- Weight: 0.088 kg
Key Features
- Toggle control with 3 positions
- Rated operational current of 20A
- Rated operational voltage of 250V AC
- IP20 protection rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial electrical circuit control
- Residential electrical circuit control
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Complies with IEC 60947-5-1 and IEC 60669-1 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Linear Switch is available now for immediate purchase. Ideal for small commercial and residential electrical circuit control.
