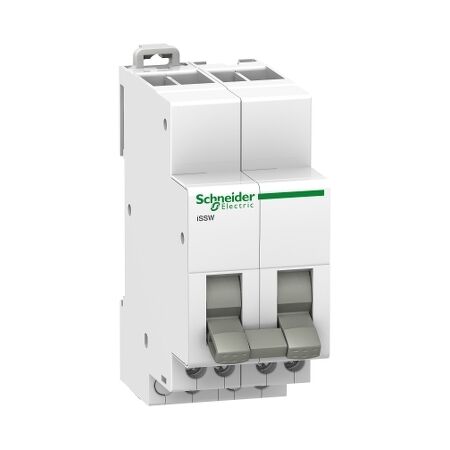

Linear Switch 2CO 20A 250VAC 3 Positions Schneider Electric

BRAND: Clipsal
SKU: SCHA9E18074
$93.30 List price: $116.30
+ −
30 Days Return Electricians Unlock Trade Access
Schneider Electric Linear Switch C O AC Positions features Toggle 3 positions, AC-22: 30000 cycles and Staggered tunnel terminal for 2 cables.
Technical Specifications
  • Control type: Toggle 3 positions
  • Electrical durability: AC-22: 30000 cycles
  • Connections: Staggered tunnel terminal for 2 cables (0.5-2.5 mm²)
  • Wire stripping length: 9 mm
  • Relative humidity: 95% at 55 °C
  • Ambient air temperature for operation: -20 to 50 °C
  • Ambient air temperature for storage: -40 to 70 °C
  • Pollution degree: 3
  • Dimensions (H x L x W): 82mm x 75mm x 36mm
  • Weight: 0.1 kg
Key Features
  • Toggle control with 3 positions
  • Rated operational current of 20A
  • Rated operational voltage of 250V AC
  • IP20 protection rating
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial electrical circuit control
  • Residential electrical circuit control
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Complies with IEC 60947-5-1 and IEC 60669-1 standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Acti9 Linear Switch is available now for immediate purchase. Ideal for small commercial and residential electrical circuit control.

A9E18074 (A9E18074, 226 Kb) [Download]
