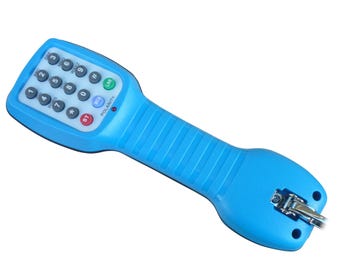

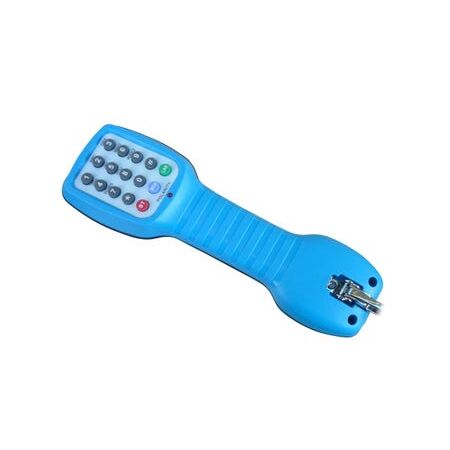

Linemans Test Phone | DTMF Keypad | 20dB BOOST Button | Line-Powered by Cabac
Linemans test phone designed for reliable communication in the field, featuring a durable design and clear audio quality. Ideal for technicians and linemen, it ensures efficient troubleshooting and connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Linemans Test Phone | Durable Design | Clear Audio | Easy to Use by Unspecified Brand
Brand: Cabac
SKU: TP-9000
Alternatively Known As: Lineman Test Phone, Telecom Test Phone, Butt Tester, TP-9000 Test Phone
Technical Specifications
- DTMF keypad with last number redial (32 digits max.)
- 10 number memory (24 digits max.)
- 3 position volume switch
- Line-powered, no internal batteries required
- BOOST button provides 20dB gain for monitoring dial tone and speech
- Polarity LED indicates line polarity and reversal
- Includes multiple leads and connectors for versatile use
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.3 kg
Key Features
- Line-powered with no internal batteries required
- DTMF output only
- Unique 20dB BOOST button to hear dial tone and speech when phone is set aside
- Polarity LED for visual indication of polarity and line reversal
- TALK/RING/MONITOR switches for easy operation
- Includes 1 x 3 way socket with alligator clips, 1 x lead with Krone 2 way plug, 1 x small 6P-6P lead, 1 x longer 6P-6P lead
- No speaker phone facility
Professional Installation Requirements
- No professional installation required; designed for use by trained installers and technicians.
Applications
- Telecom line testing and temporary communications
- Use by installers, repair technicians, and authorized personnel
- Fibre networking and data communications troubleshooting
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Line-powered design eliminates the need for batteries, reducing battery waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Linemans Test Phone TP-9000 is available now for immediate purchase. Ideal for telecom line testing and temporary communication applications.
