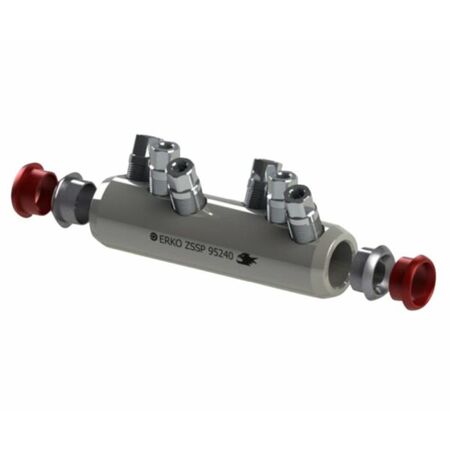

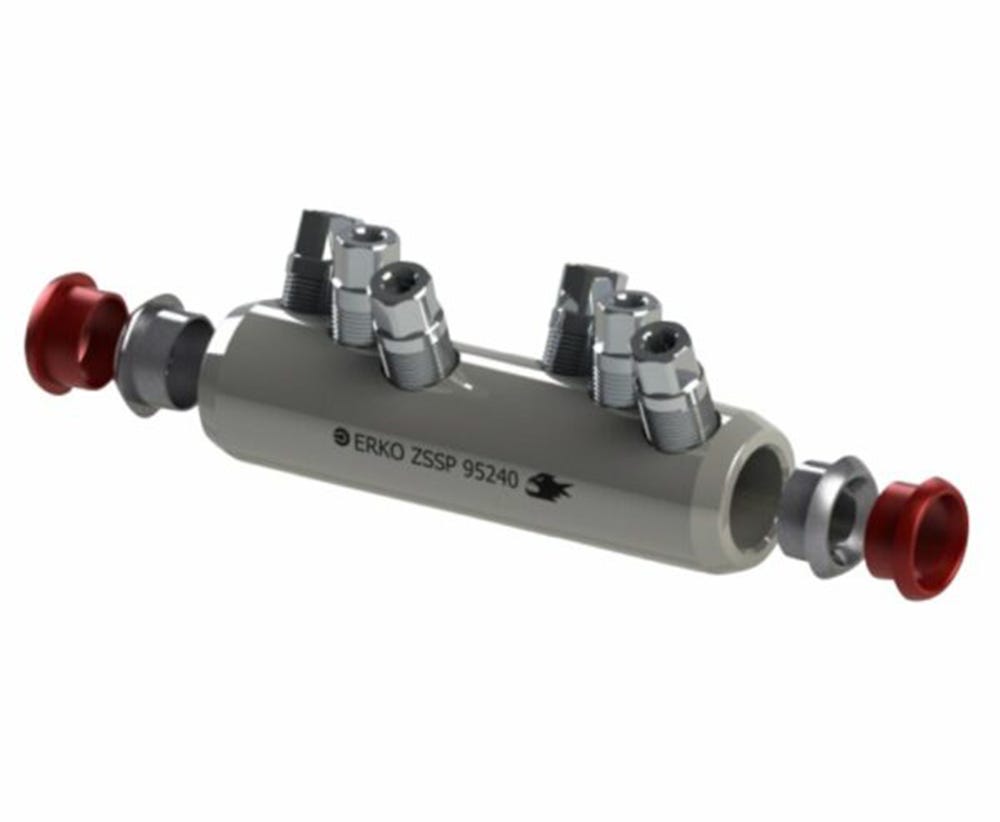

LINK Tinned Mechanical Shear 400-630SQMM | Tinned Aluminium Body | Up to 36kV Voltage | Secure Shearing Bolts | @EA of 1 | by Cabac
The LINK Tinned Mechanical Shear 400-630SQMM is engineered for reliable electrical power connectivity, accommodating conductor cross sections from 400 to 630 SQMM. With a robust tinned aluminium body and a voltage rating of up to 36kV, it ensures secure connections with shearing bolts designed to break at specified torque. Ideal for industrial and commercial electrical installations, this shear minimizes energy loss and enhances system efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for conductor cross sections from 400 to 630 SQMM
- Voltage rating up to 36kV
- Material: Tinned aluminium body
- Compatible with aluminium and copper conductors Class 1, 2, and 5
- Shearing bolts designed to break at specified torque flush to link surface
- Shearing bolt tip rotates to prevent conductor damage
- Standards compliance: IEC, EN 61238-1-3
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Aluminium mechanical link designed for wide cross section conductors from 400 to 630 SQMM
- Tinned aluminium body compatible with aluminium and copper conductors Class 1, 2, and 5
- Shearing bolts break at specified torque flush to the surface of the link body for secure connections
- Shearing bolt tip rotates to reduce possible damage to the conductor
- Complies with IEC and EN 61238-1-3 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct torque application and secure connections.
Applications
- Electrical power connectivity for medium to high voltage conductors
- Suitable for aluminium and copper conductors in industrial and commercial electrical installations
- Used in electrical distribution and transmission systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Tinned aluminium construction enhances corrosion resistance, extending product life and reducing waste
- Designed for reliable electrical connections, minimizing energy loss and improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Link Tinned Mechanical Shear 400-630SQMM is available for immediate purchase, ideal for electrical power connectivity in industrial and commercial applications.
