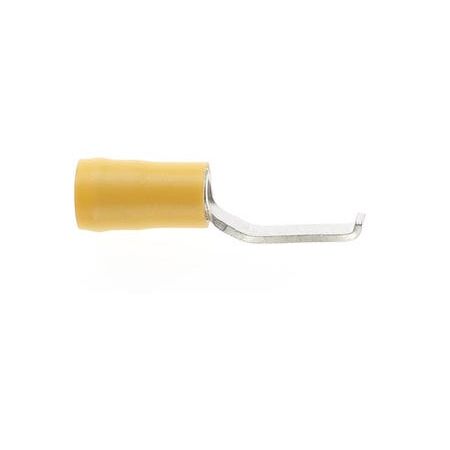

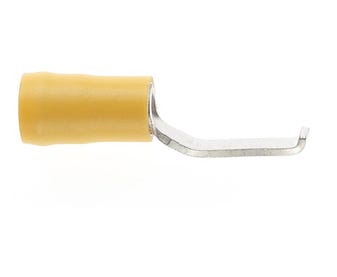

Lip Blade Terminal 5mm Width | Yellow PVC Insulated | 300V Rating by Cabac

BRAND: CABAC
SKU: LB5.5-5DG
$20.00 List price: $24.20
+ −
30 Days Return Delivery Options
Lip blade terminal with 5mm width and yellow PVC insulation—ideal for electrical wiring and connectivity. Built for reliable connections, with 300V rating and compliance with AS 3169 and AS 4437 standards.

Product Name/Title: Lip Blade Width 5mm Yellow Dg

Brand: Cabac

SKU: LB5.5-5DG

Alternatively Known As: Pre-insulated terminal, Lip blade terminal, Yellow insulated terminal, Electrical crimp terminal, Double grip terminal

Technical Specifications
  • Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
  • Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
  • Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
  • Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
  • Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
  • Electroplating: Tin, 99.9% Tin Content, 2.5 microns plating thickness
  • Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
  • Breakdown Voltage: 1.5kV (min)
  • Insulation Resistance: Above 100 meg ohms
  • Working Voltage: Up to 300V AC/DC
  • Torque Recommendations: Metric 8.8 tensile grade hardware, torque varies by thread diameter
  • Nominal Pull Out Force varies by wire size from 4.6 kg to 35.2 kg
  • Dimensions (H x L x W): 15mm x 25mm x 5mm
  • Weight: 0.1 kg
Key Features
  • High quality product meeting International Standards
  • Funnel entry terminals allow easy conductor entry, minimising substandard crimps
  • Long term electrical integrity
  • Voltage rating 300V
  • Full technical back up including QA
  • Double grip - separate crimp barrels for conductor and insulation
  • PVC insulated
Professional Installation Requirements
  • Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure proper connection and safety.
Applications
  • Electrical wiring and connectivity in switchgear
  • Contactors and terminal blocks
  • General electrical and power connectivity applications
Standards & Compliance
  • AS/NZS 3123 – Industrial Plugs and Socket-Outlets
  • AS 3169
  • AS 4437
Environmental Benefits
  • Long term electrical integrity reduces need for replacements and waste
  • PVC insulation is durable and recyclable
Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Lip Blade Width 5mm Yellow DG Pre-Insulated Terminal is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable and standard-compliant terminals.
