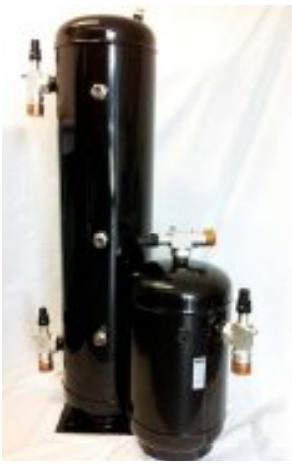

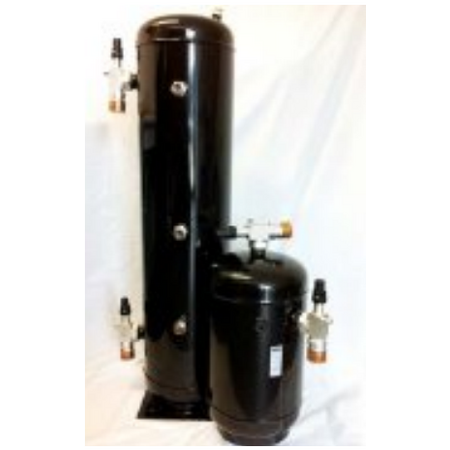

Liquid Receiver 309-109 | 11L Volume | Anti-Corrosion Finish | ISO/AS 5149.2 Compliant | by Aspen Pumps
The Liquid Receiver 309-109 is designed for efficient liquid refrigerant storage in commercial and industrial HVAC systems. With a volume of 11 liters and an anti-corrosion powder coat finish, it ensures durability and compliance with ISO/AS 5149.2 standards. Ideal for refrigeration systems, this receiver minimizes refrigerant leakage and improves plant efficiency, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-109 | 11L Volume | Anti-Corrosion Finish | ISO/AS 5149.2 Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-109
Alternatively Known As: Refrigeration Liquid Receiver, Refrigerant Receiver Tank, Liquid Refrigerant Vessel
Technical Specifications
- Connection type: 1 R/L x 1 R/L
- Volume: 11 liters
- Height: 354 mm
- Diameter: 219 mm
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Anti-corrosion powder coat finish
- Solid copper connections
- Includes liquid level switch port on large vertical receivers
- Harmonic wave cut design to reduce noise
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 354mm x 219mm x 219mm
- Weight: 5 kg
Key Features
- Connection: 1 R/L x 1 R/L
- Volume: 11L
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Receivers with rotalock connection not supplied with valves
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass and liquid level switch adaptor 412-202020
- Harmonic wave cut principles reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation by a qualified refrigeration technician is required to ensure compliance with safety standards and optimal system performance.
Applications
- Refrigeration systems requiring liquid refrigerant storage and management
- Commercial and industrial HVAC systems
- Pressure vessel applications in refrigeration plants
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket to reduce environmental impact
- Improves plant efficiency by reducing pressure drop, lowering energy consumption
- Anti-corrosion finish extends product life, reducing waste
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps Liquid Receiver 309-109 is available for immediate purchase, ideal for commercial and industrial refrigeration applications.
