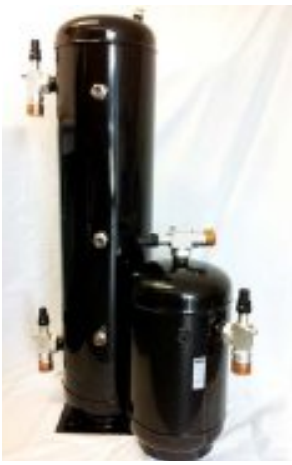

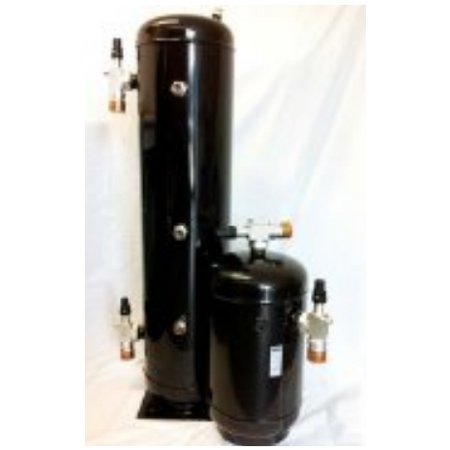

Liquid Receiver 309-14 | 1.4L Volume | 3,300 kPa Safe Working Pressure | Anti-Corrosion Coating | by Aspen Pumps
The Liquid Receiver 309-14 is designed for refrigeration systems, featuring a 1.4L volume and a safe working pressure of 3,300 kPa. Built with anti-corrosion powder-coated steel and solid copper connections, it ensures durability and efficiency in commercial and industrial HVAC applications. Ideal for qualified technicians, this receiver minimizes refrigerant leakage and enhances system performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-14 | 1.4L Volume | 3,300 kPa Safe Working Pressure | Anti-Corrosion Coating | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-14
Alternatively Known As: Refrigeration Liquid Receiver, Pressure Vessel 309-14, SKY Liquid Receiver, Refrigeration Receiver Tank
Technical Specifications
- Volume: 1.4L
- Height: 200 mm
- Diameter: 100 mm
- Connection: 3/4 R/L x 1/4 ID (Top outlet)
- Safe Working Pressure (SWP): 3,300 kPa
- Material: Anti-corrosion powder coated steel with solid copper connections
- Manufactured to ISO/AS 5149.2 standards
- Includes oil drain channels to prevent oil logging
- Dimensions (H x L x W): 200mm x 100mm x 100mm
- Weight: 2.5 kg
Key Features
- Connection: 3/4 R/L x 1/4 ID (Top outlet)
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Receivers with rotalock connection not supplied with valves
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass with adaptor 412-202020
- Harmonic wave cut principles reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation by a qualified refrigeration technician or licensed professional is required to ensure compliance with safety standards and optimal system performance.
Applications
- Refrigeration systems requiring liquid receivers
- Commercial and industrial HVAC systems
- Pressure vessel applications in refrigeration plants
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket, reducing environmental impact
- Improves plant efficiency by reducing pressure drop, lowering energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps Liquid Receiver 309-14 is available for immediate purchase, ideal for refrigeration and HVAC system applications.
