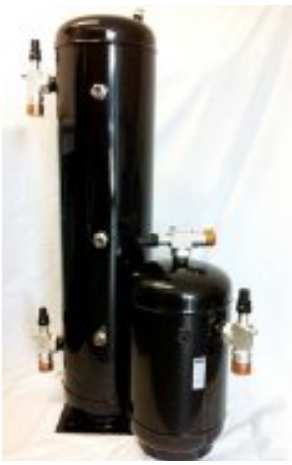

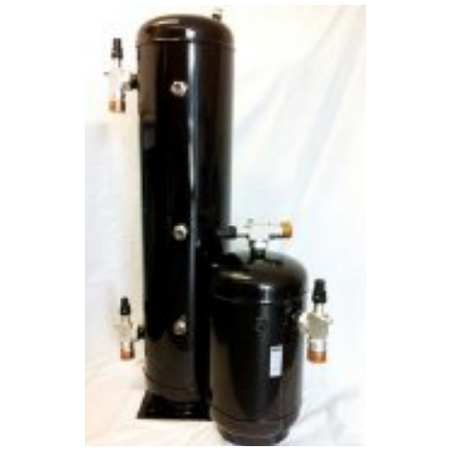

Liquid Receiver 309-145 | 14.6L Volume | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 309-145 is designed for efficient refrigerant storage in commercial and industrial HVAC systems. With a volume of 14.6L and a safe working pressure of 3,300 kPa, it ensures optimal refrigerant management. Built to ISO/AS 5149.2 standards, this receiver features solid copper connections and an anti-corrosion powder coat finish, making it a reliable choice for professionals seeking safety and efficiency in refrigeration applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-145 | 14.6L Volume | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-145
Alternatively Known As: Refrigerant Liquid Receiver, HVAC Liquid Receiver, Refrigeration Pressure Vessel
Technical Specifications
- Connection: 1 R/L x 1 R/L
- Height: 434 mm
- Diameter: 219 mm
- Volume: 14.6 L
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Solid copper connections
- Anti-corrosion powder coat finish
- Harmonic wave cut design to reduce noise
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 434mm x 219mm x 219mm
- Weight: 10 kg
Key Features
- Connection: 1 R/L x 1 R/L
- Volume: 14.6L
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Receivers with rotalock connection not supplied with valves
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass and liquid level switch adaptor 412-202020
- Harmonic wave cut principles reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation should be performed by qualified HVAC professionals familiar with refrigeration pressure vessels and compliance with local safety regulations.
Applications
- Refrigeration systems requiring liquid refrigerant storage
- Commercial and industrial HVAC systems
- Systems requiring efficient refrigerant management and safety
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket to reduce environmental impact
- Anti-corrosion finish extends product life reducing waste
- Designed to improve plant efficiency, reducing energy consumption
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps Liquid Receiver 309-145 is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
