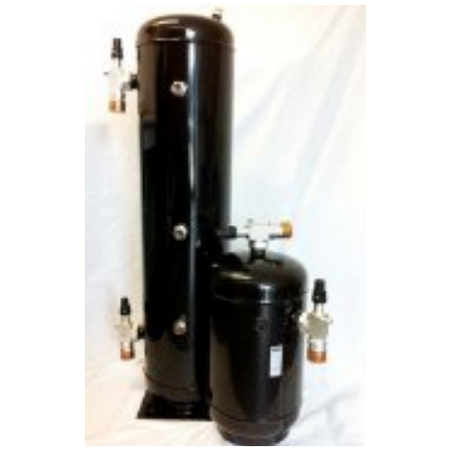

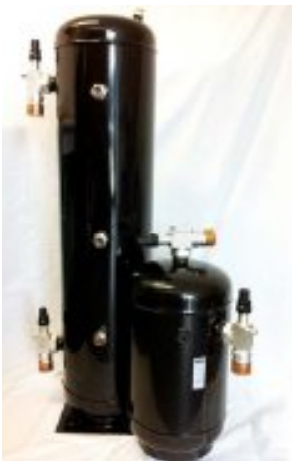

Liquid Receiver 309-24 | 3/4 R/L x 3/8 ID Connection | 2.4L Volume | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 309-24 is designed for efficient refrigerant management in commercial and industrial HVAC systems. Featuring a 3/4 R/L x 3/8 ID connection and a 2.4L volume, it minimizes refrigerant leakage with its SKY safety socket and anti-corrosion powder coat finish. Built to ISO/AS 5149.2 standards, this receiver ensures optimal performance and reliability in refrigeration applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-24 | 3/4 R/L x 3/8 ID Connection | 2.4L Volume | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-24
Alternatively Known As: Refrigeration Liquid Receiver, HVAC Liquid Receiver, Pressure Vessel 309-24
Technical Specifications
- Connection: 3/4 R/L x 3/8 ID (Top outlet)
- Height: 272 mm
- Diameter: 114 mm
- Volume: 2.4 L
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Anti-corrosion powder coat finish
- Solid copper connections
- Harmonic wave cut design to reduce noise
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 272mm x 114mm x 114mm
- Weight: 3.5 kg
Key Features
- Connection: 3/4 R/L x 3/8 ID (Top outlet)
- Volume: 2.4L
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Receivers with rotalock connection not supplied with valves
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass and liquid level switch adaptor 412-202020
- Harmonic wave cut principles reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation should be performed by qualified HVAC technicians familiar with pressure vessel safety standards and refrigerant handling regulations.
Applications
- Refrigeration systems requiring liquid receivers
- Commercial and industrial HVAC systems
- Plants requiring efficient refrigerant management
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket, reducing environmental impact
- Improves plant efficiency by reducing pressure drop, lowering energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty terms.
Available Now
The Aspen Pumps Liquid Receiver 309-24 is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
