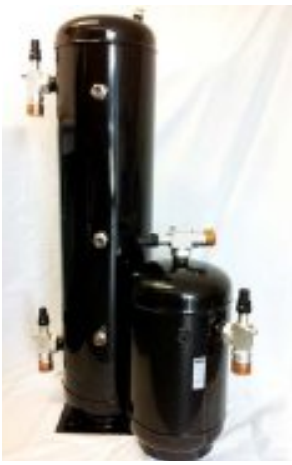

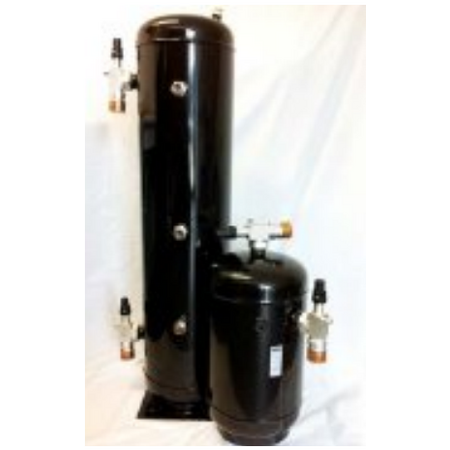

Liquid Receiver 309-245 | 24.5 Litres Volume | 3,300 kPa SWP | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 309-245 is designed for efficient liquid refrigerant storage in commercial and industrial HVAC systems. With a 24.5 litres volume and a safe working pressure of 3,300 kPa, it features an anti-corrosion powder coat finish and solid copper connections. Ideal for refrigeration plants, this receiver minimizes refrigerant leakage and enhances plant efficiency, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-245 | 24.5 Litres Volume | 3,300 kPa SWP | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-245
Alternatively Known As: Refrigeration Liquid Receiver, Refrigerant Receiver Tank, Pressure Vessel Liquid Receiver
Technical Specifications
- Volume: 24.5 Litres
- Connection Size: 1 3/4 R/L X 1 3/4 R/L (Top outlet)
- Safe Working Pressure (SWP): 3,300 kPa
- Material: Powder coated steel with solid copper connections
- Manufactured to ISO/AS 5149.2 standards
- Includes liquid level switch port on large vertical receivers
- Noise reduction via harmonic wave cut principles
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 546mm x 273mm x 273mm
- Weight: 15 kg
Key Features
- Connection: 1 3/4 R/L X 1 3/4 R/L (Top outlet)
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass with liquid level switch adaptor 412-202020
- Utilizes harmonic wave cut principles to reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation must be performed by qualified HVAC or refrigeration professionals in accordance with Australian safety standards and local regulations.
Applications
- Refrigeration systems requiring liquid refrigerant storage and management
- Commercial and industrial HVAC systems
- Pressure vessel applications in refrigeration plants
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket to reduce environmental impact
- Anti-corrosion finish extends product life, reducing waste
- Designed to improve plant efficiency by minimizing pressure drop
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps Liquid Receiver 309-245 is available for immediate purchase, ideal for commercial and industrial refrigeration applications.
