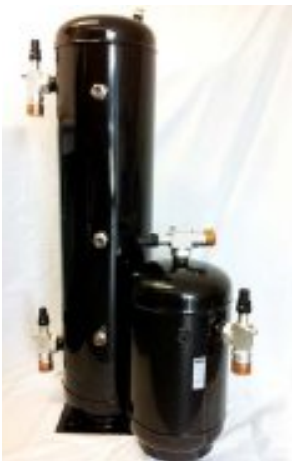

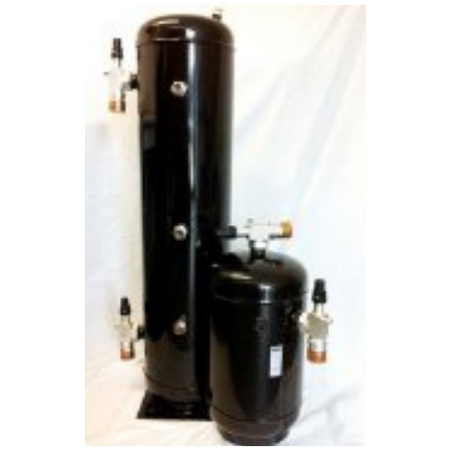

Liquid Receiver 309-35-V | 35L Capacity | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 309-35-V is designed for efficient refrigerant storage in refrigeration and HVAC systems, featuring a 35L capacity and solid copper connections. Manufactured to ISO/AS 5149.2 standards, it minimizes refrigerant leakage and enhances plant efficiency with its harmonic wave cut design, making it ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-35-V | 35L Capacity | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-35-V
Alternatively Known As: Refrigeration Liquid Receiver, Refrigerant Storage Vessel, HVAC Liquid Receiver, Pressure Vessel 309-35-V
Technical Specifications
- Connection size: 1 1/4 R/L x 1 3/4 R/L
- Volume: 35 liters
- Height: 1000 mm
- Diameter: 219 mm
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Solid copper connections
- Anti-corrosion powder coat finish
- Includes liquid level switch port on large vertical receivers
- Harmonic wave cut design to reduce noise and smooth discharge pulse
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 1000mm x 219mm x 219mm
- Weight: 15 kg
Key Features
- Connection: 1 1/4 R/L x 1 3/4 R/L
- Volume: 35L capacity
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Large vertical receivers include liquid level switch port
- Oil drain channels to prevent oil logging
- Utilizes harmonic wave cut principles to reduce noise and smooth discharge pulse
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals familiar with pressure vessel safety and local regulations.
Applications
- Refrigeration systems requiring liquid refrigerant storage
- Industrial and commercial HVAC systems
- Plants requiring efficient refrigerant management and pressure vessel solutions
Standards & Compliance
- Complies with AS/NZS 5149.2 for Refrigeration Systems and Heat Pumps
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket to reduce environmental impact
- Improves plant efficiency by reducing pressure drop, lowering energy consumption
- Anti-corrosion finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps Liquid Receiver 309-35-V is available for immediate purchase, ideal for refrigeration and HVAC system applications requiring reliable liquid refrigerant storage.
