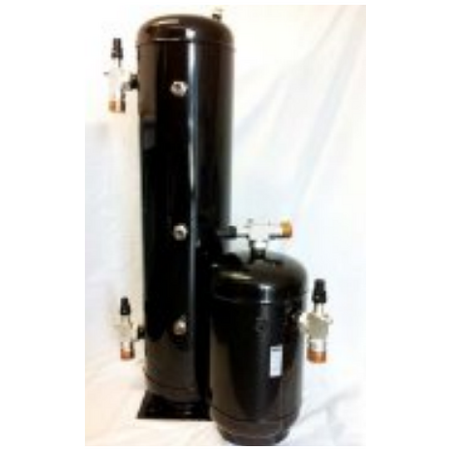

Liquid Receiver 309-44 | 5.1L Volume | 3,300 kPa SWP | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 309-44 is designed for efficient refrigerant storage in commercial and industrial HVAC systems. With a 5.1L volume and a safe working pressure of 3,300 kPa, it features an anti-corrosion powder coat finish and solid copper connections. Ideal for applications requiring effective refrigerant management and noise reduction, this receiver ensures compliance with ISO/AS 5149.2 standards, making it a reliable choice for HVAC professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-44 | 5.1L Volume | 3,300 kPa SWP | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-44
Alternatively Known As: Refrigeration Liquid Receiver, HVAC Liquid Receiver, Pressure Vessel 309-44
Technical Specifications
- Volume: 5.1L
- Safe Working Pressure (SWP): 3,300 kPa
- Connection: 3/4 R/L x 1/2 ID (Top outlet)
- Material: Powder coated with solid copper connections
- Manufactured to ISO/AS 5149.2 standards
- Includes oil drain channels to prevent oil logging
- Dimensions (H x L x W): 332mm x 165mm x 165mm
- Weight: 4.5 kg
Key Features
- Connection: 3/4 R/L x 1/2 ID (Top outlet)
- Manufactured in accordance with ISO/AS 5149.2 with a SWP of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Receivers with rotalock connection not supplied with valves
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass with liquid level switch adaptor 412-202020
- Harmonic wave cut principles reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is required to ensure compliance with safety and environmental standards.
Applications
- Refrigeration systems requiring liquid refrigerant storage
- Commercial and industrial HVAC systems
- Systems requiring efficient refrigerant management and noise reduction
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Minimizes refrigerant leakage with safety socket design
- Improves system efficiency reducing energy consumption
- Anti-corrosion finish extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Liquid Receiver 309-44 is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
