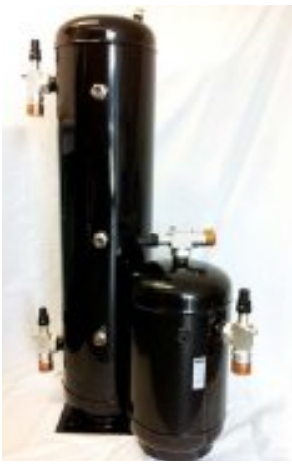

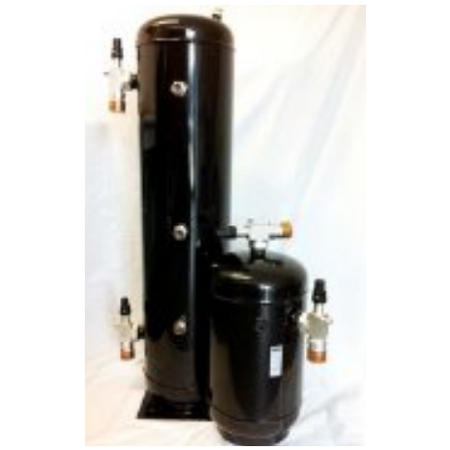

Liquid Receiver 309-82 | 8.2L Volume | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 309-82 is designed for efficient liquid refrigerant storage in commercial and industrial HVAC systems. With a volume of 8.2 liters and compliance with ISO/AS 5149.2 standards, it features solid copper connections and an anti-corrosion powder coat finish. Ideal for refrigeration systems, it minimizes refrigerant leakage and enhances plant efficiency, making it a reliable choice for pressure vessel applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-82 | 8.2L Volume | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-82
Alternatively Known As: Refrigeration Liquid Receiver, Refrigerant Receiver Tank, Liquid Refrigerant Vessel
Technical Specifications
- Connection type: 1 R/L x 1 R/L
- Volume: 8.2 liters
- Height: 449 mm
- Diameter: 165 mm
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Solid copper connections
- Anti-corrosion powder coat finish
- Includes liquid level switch port on large vertical receivers
- Harmonic wave cut design to reduce noise
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 449mm x 165mm x 165mm
- Weight: 5 kg
Key Features
- Connection: 1 R/L x 1 R/L
- Volume: 8.2L
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Receivers with rotalock connection not supplied with valves
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass with liquid level switch adaptor 412-202020
- Harmonic wave cut principles reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation by a qualified refrigeration technician is required to ensure compliance with safety and operational standards.
Applications
- Refrigeration systems requiring liquid refrigerant storage and management
- Commercial and industrial HVAC systems
- Pressure vessel applications in refrigeration plants
Standards & Compliance
- Complies with AS/NZS 5149.2 for Refrigeration Systems and Heat Pumps
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket to reduce environmental impact
- Anti-corrosion finish extends product life, reducing waste
- Designed to improve plant efficiency by minimizing pressure drop
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps Liquid Receiver 309-82 is available for immediate purchase, ideal for commercial and industrial refrigeration applications.
