Trade Discount 17%

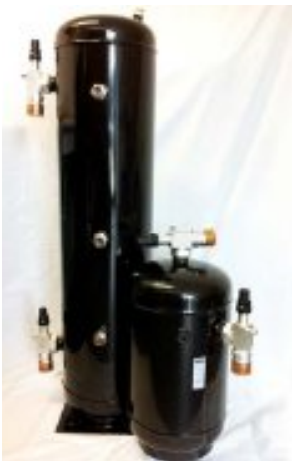

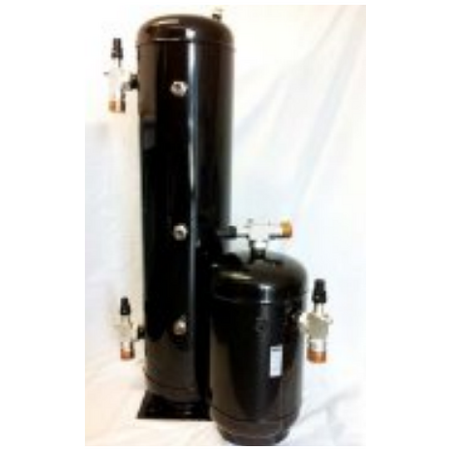

Liquid Receiver 60L | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 60L is designed for efficient refrigerant storage in commercial and industrial HVAC systems. With a safe working pressure of 3,300 kPa and an anti-corrosion powder coat finish, it ensures durability and reliability. Ideal for refrigeration plants, this receiver minimizes refrigerant leakage and improves plant efficiency, making it a crucial component for any refrigeration system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 60L | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-60-V
Alternatively Known As: Liquid Receiver 60L, Refrigeration Liquid Receiver, Pressure Vessel 309-60-V
Technical Specifications
- Connection Size: 1 3/4 R/L X 1 3/4 R/L
- Height: 1200 mm
- Diameter: 273 mm
- Volume: 60 Liters
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Anti-corrosion powder coat finish
- Solid copper connections
- Includes liquid level switch port on large vertical receivers
- Harmonic wave cut design to reduce noise
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 1200mm x 273mm x 273mm
- Weight: 25 kg
Key Features
- Connection: 1 3/4 R/L X 1 3/4 R/L
- Volume: 60L
- Manufactured in accordance with ISO/AS 5149.2 with a SWP of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Large vertical receivers include liquid level switch port
- Oil drain channels to prevent oil logging
- Utilizes harmonic wave cut principles to reduce noise and smooth discharge pulse
Professional Installation Requirements
- Installation must be performed by qualified refrigeration or HVAC professionals in accordance with Australian safety standards and local regulations.
Applications
- Refrigeration systems requiring liquid refrigerant storage
- Commercial and industrial HVAC systems
- Pressure vessel applications in refrigeration plants
Standards & Compliance
- Complies with AS/NZS 5149.2 - Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket, reducing environmental impact
- Improves plant efficiency by reducing pressure drop, lowering energy consumption
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps Liquid Receiver 309-60-V is available for immediate purchase, ideal for commercial and industrial refrigeration applications.
