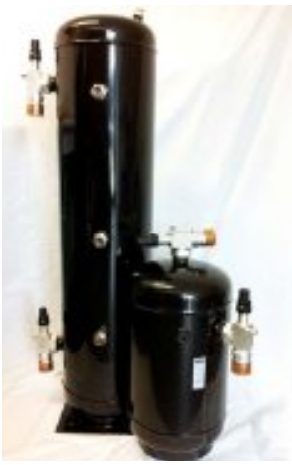

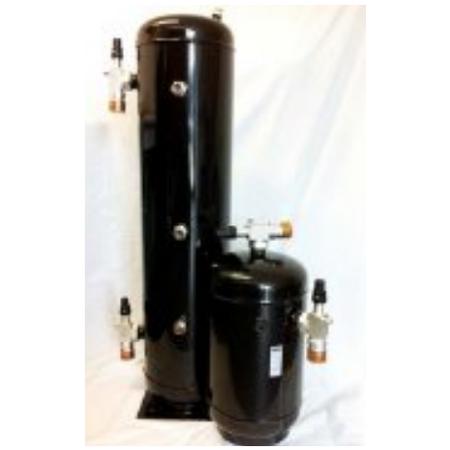

Liquid Receiver 309-90-V | 90L Capacity | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The Liquid Receiver 309-90-V is designed for efficient refrigerant storage in commercial and industrial HVAC systems, featuring a 90L capacity and compliance with ISO/AS 5149.2 standards. With solid copper connections and an anti-corrosion powder coat finish, it minimizes refrigerant leakage and enhances plant efficiency, making it ideal for refrigeration systems requiring reliable pressure vessel solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Receiver 309-90-V | 90L Capacity | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-90-V
Alternatively Known As: Refrigeration Liquid Receiver, Refrigerant Storage Vessel, HVAC Liquid Receiver, Pressure Vessel 309-90-V
Technical Specifications
- Connection size: 2 1/4 R/L x 2 1/4 R/L
- Volume: 90 Litres
- Height: 1233 mm
- Diameter: 325 mm
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Anti-corrosion powder coat finish
- Solid copper connections
- Includes liquid level switch port on large vertical receivers
- Harmonic wave cut design for noise reduction
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 1233mm x 325mm x 325mm
- Weight: 40 kg
Key Features
- Connection: 2 1/4 R/L x 2 1/4 R/L
- Volume: 90L capacity
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- PRV socket fitted with SKY safety socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Large vertical receivers include liquid level switch port
- Oil drain channels to prevent oil logging
- Harmonic wave cut design to reduce noise and smooth discharge pulse
Professional Installation Requirements
- Installation by qualified HVAC or refrigeration professionals is required to ensure compliance with safety standards and optimal system performance.
Applications
- Refrigeration systems requiring liquid refrigerant storage
- Commercial and industrial HVAC systems
- Plants needing efficient refrigerant management and pressure vessel solutions
Standards & Compliance
- Complies with AS/NZS 5149.2 for Refrigeration Systems and Heat Pumps
Environmental Benefits
- Minimizes refrigerant leakage with safety socket design, reducing environmental impact
- Improves plant efficiency by reducing pressure drop, lowering energy consumption
- Anti-corrosion finish extends product life, reducing waste
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Liquid Receiver 309-90-V is available for immediate purchase, ideal for commercial and industrial refrigeration applications.
