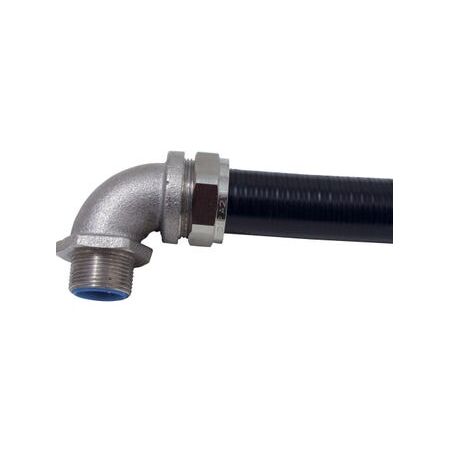

Liquid Tight 90 Degree Stainless Steel Fitting 20mm Cabac
Cabac Liquid Tight 90 Degree Stainless Steel Fitting 20mm is ideal for conduit connection and cable protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 20mm
- Conduit size: 16mm
- Dust proof and liquid tight seal
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 36mm x 56mm x 56mm
- Weight: 0.1 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Dust proof, liquid tight seal providing mechanical and environmental protection
- One-piece installation with swivel fitting for easy use
- Complete with sealing ring and flanged grounding cone for excellent pull-out strength
- Male thread with external thread for threaded entries and knockouts
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 16/20mm is available now for immediate purchase. Ideal for industrial and commercial conduit wiring applications requiring high corrosion resistance and environmental protection.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 16mm conduit installations.
Q: What environments is this fitting suitable for?
A: It is suitable for machining centres and robotics, OEM wiring applications, underfloor wiring in office buildings and narrow space static installations.
Pair this fitting with a liquid tight conduit for complete sealed conduit routing in industrial environments.
A liquid tight stainless steel fitting can be used where matching stainless steel conduit accessories are required.
Install with a stainless steel braided conduit for flexible cable protection in demanding industrial applications.
