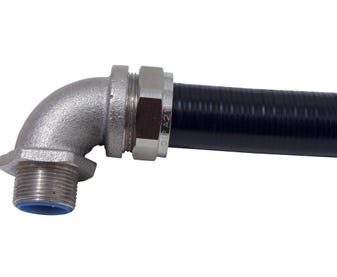

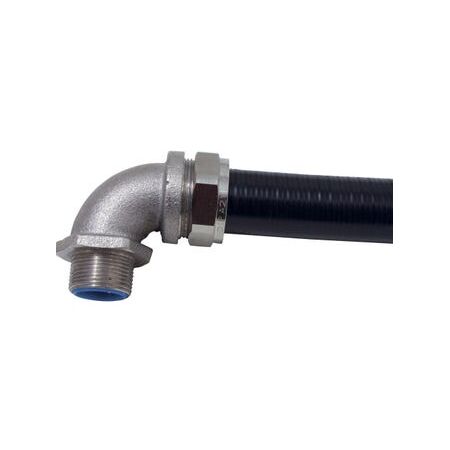

Liquid Tight 90 Degree Stainless Steel Fitting 25MM | IP66 Protection | Corrosion Resistant | Easy Installation by Cabac
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 25MM offers reliable wiring protection with superior corrosion resistance and a liquid tight seal, ideal for industrial and commercial conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Tight 90 DEG S/Steel Fitting 25MM
Brand: Cabac
SKU: LTCM-S22
Alternatively Known As: Liquid Tight Conduit Fitting, 90 Degree Stainless Steel Conduit Connector, LTCM 25mm Fitting, Male Thread Liquid Tight Fitting
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 25mm
- Conduit size: 25mm
- Provides Ex ta IIIC IP66 Hazardous Area Type Protection
- Dimensions (H x L x W): 63mm x 39mm x 46mm
- Weight: 0.2 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Dust proof, liquid tight seal providing mechanical and environmental protection
- Male thread with external thread for threaded entries and knockouts
- Complete with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with hazardous area requirements.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing waste
Warranty Information
Warranty details available upon request from Cabac, typically covering manufacturing defects.
Available Now
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 25MM is available for immediate purchase, ideal for industrial and commercial conduit wiring applications requiring high corrosion resistance and hazardous area protection.
